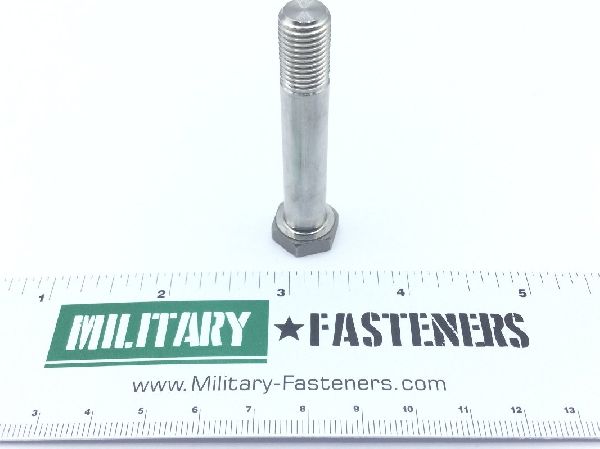

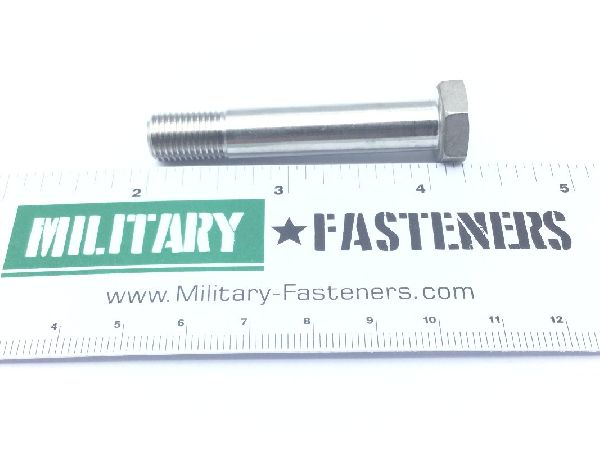

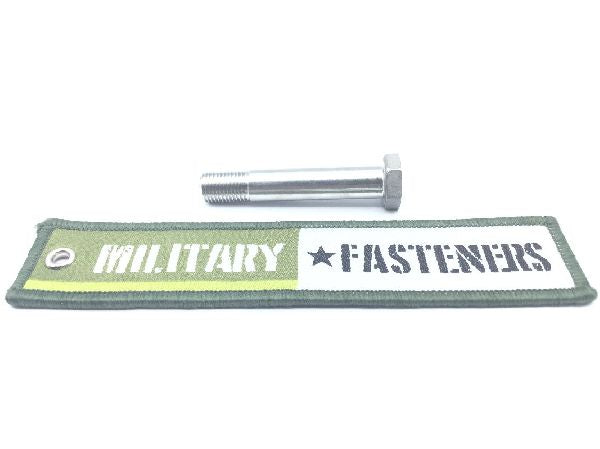

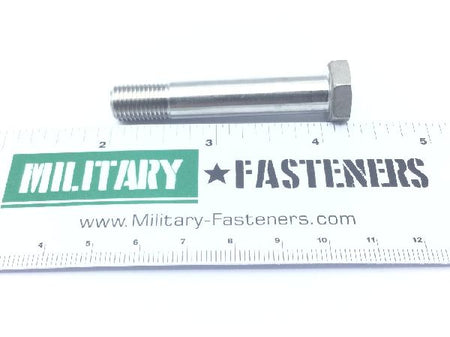

NAS6706U24 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-35 assn standard single treatment response

Thread Class

Fastener Length: Between 2.063 inches and 2.093 inches
Grip Diameter: Between 0.3740 inches and 0.3745 inches
Grip Length: Between 1.490 inches and 1.510 inches
Head Height: Between 0.173 inches and 0.203 inches
Material Specification: Ams 5731 assn standard 1st material response and ams 5737 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6706 professional/industrial association standard
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.578 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.492 inches and 0.592 inches
