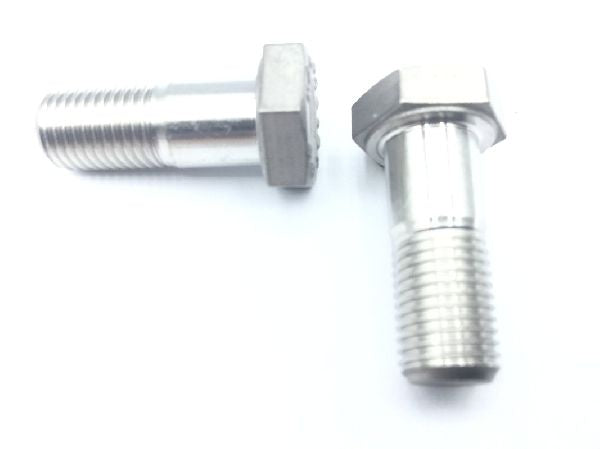

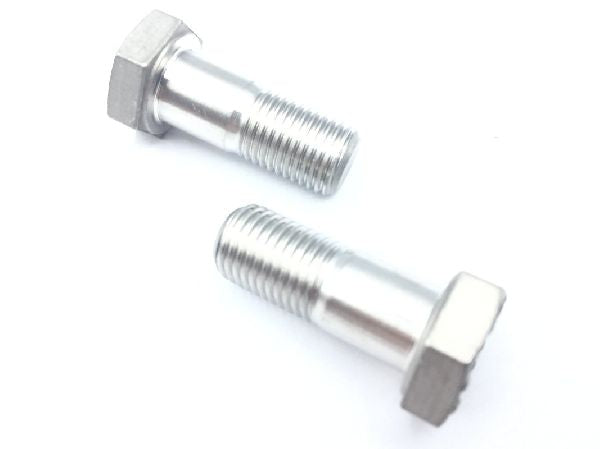

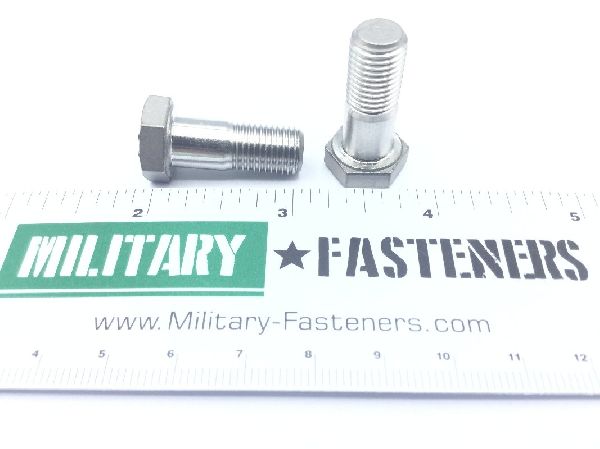

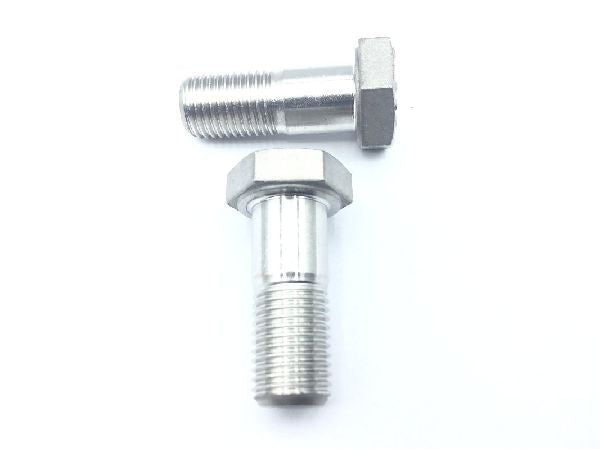

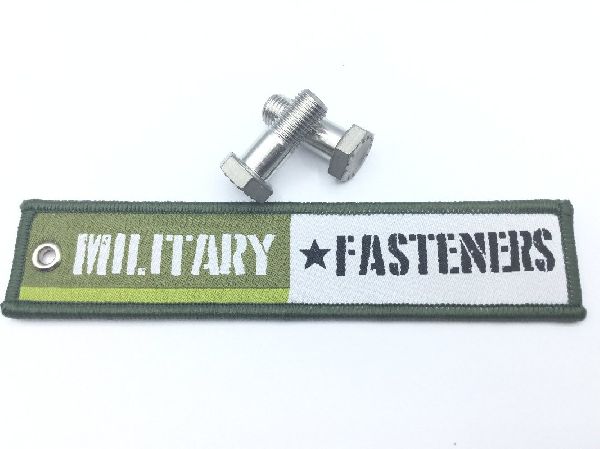

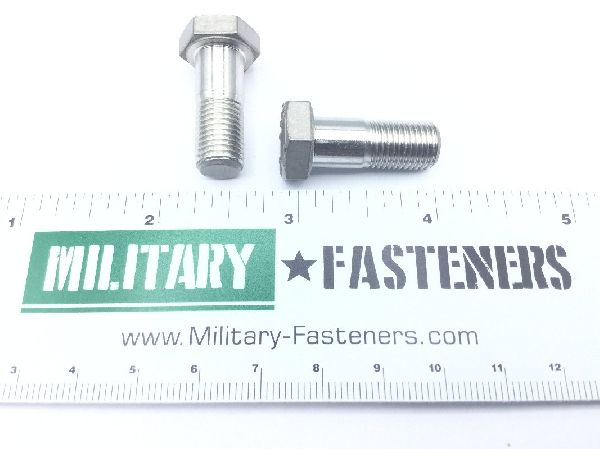

NAS6706U6 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Stainless Steel

Thread Class

Fastener Length: Between 0.938 inches and 0.968 inches
Grip Diameter: 0.374 mils and 0.375 centimeters
Grip Length: 0.365 mils and 0.385 centimeters
Head Height: Between 0.973 inches and 1.003 inches
Material Specification: Ams5737 or ams5853 cres-a286 (uns s66286) assn standard single material response ams5732 ams5731
Min. Tensile Strength (psi): 160000 pounds per square inch
Part Name Assigned By Controlling Agency: A286 cres close tolerance hex head tension bolt
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.578 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: 0.554 mils and 0.564 centimeters
