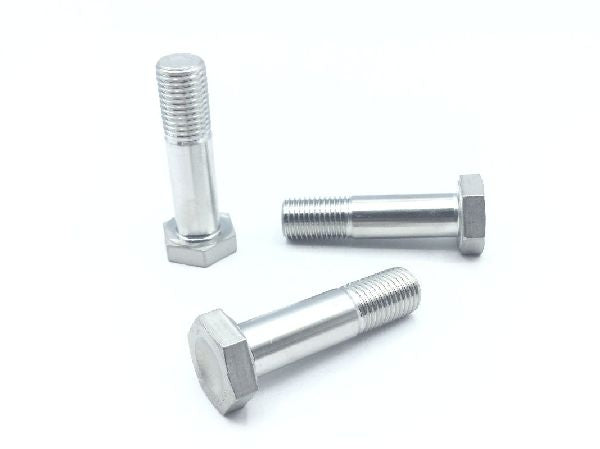

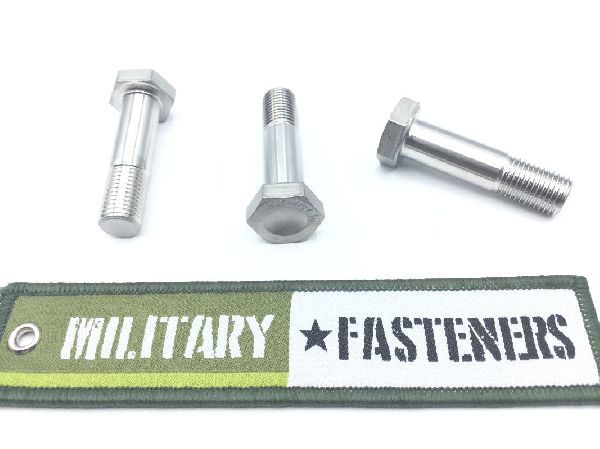

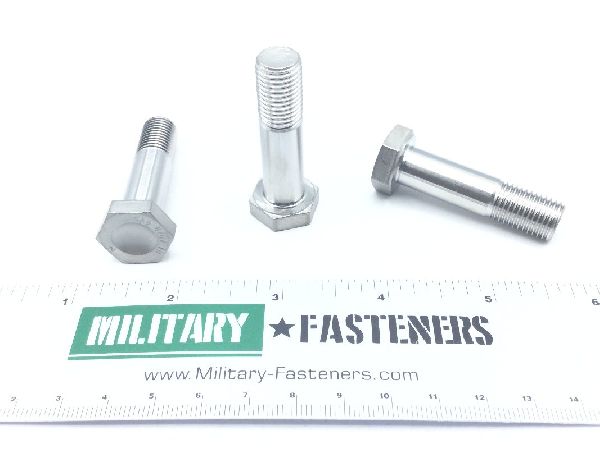

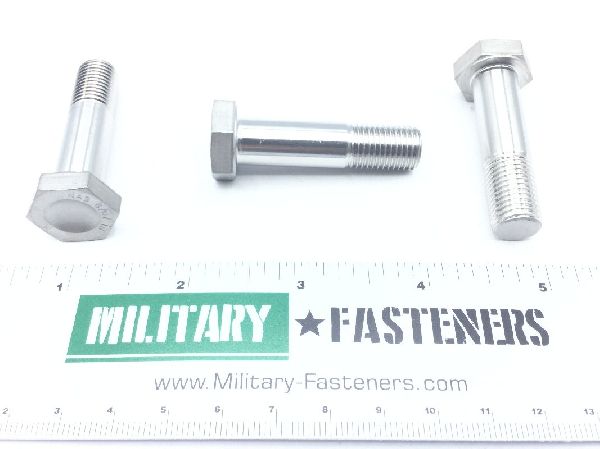

NAS6707U16 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $12.40

Units per Pack 5

Price per Pack $62.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $62.00

Add item to quote

Head Style

Dished hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 1.679 inches and 1.709 inches
Grip Diameter: Between 0.4365 inches and 0.4370 inches
Grip Length: Between 0.990 inches and 1.010 inches
Head Height: Between 0.219 inches and 0.234 inches
Material Specification: Ams 5731 assn standard single material response or ams 5732 assn standard single material response or ams 5737 assn standard single material response or ams 5853 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6707 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.4375 inches
Thread Direction: Right-hand
Thread Length: 0.694 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.678 inches and 0.690 inches
