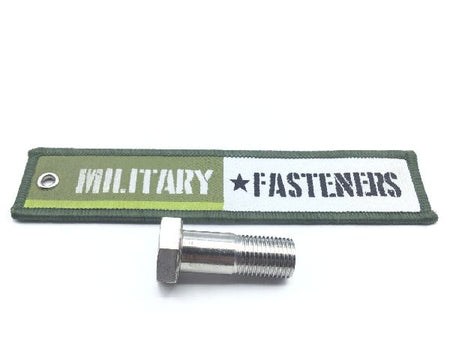

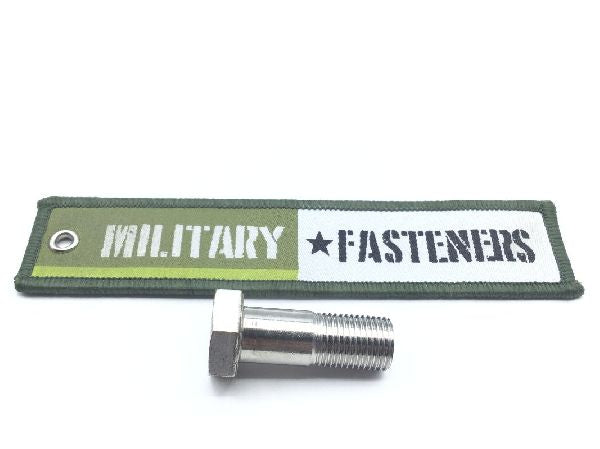

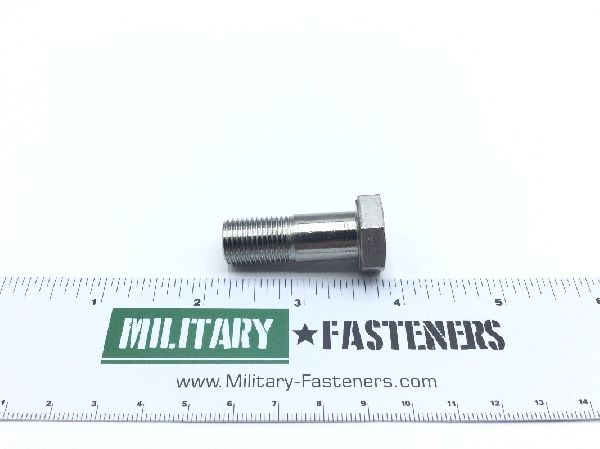

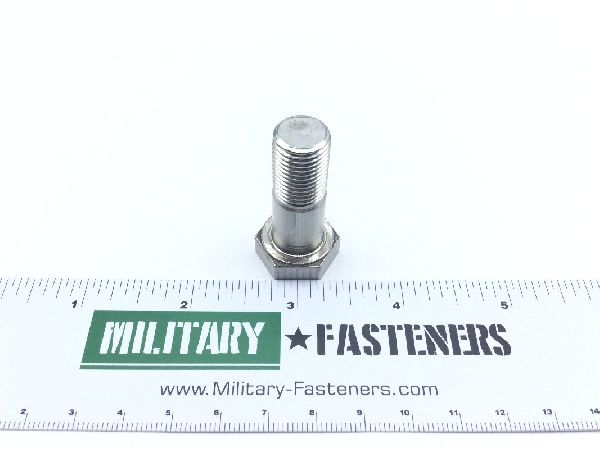

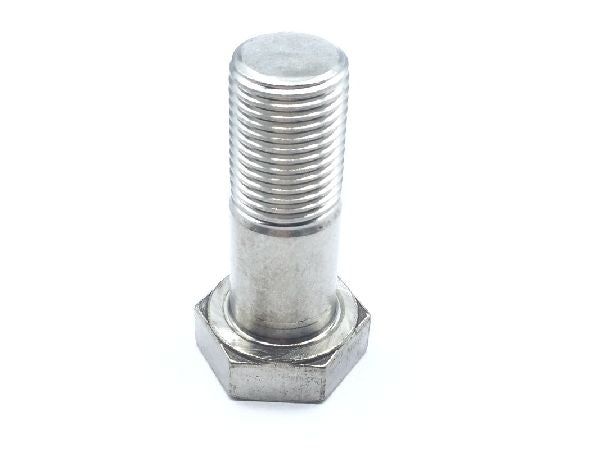

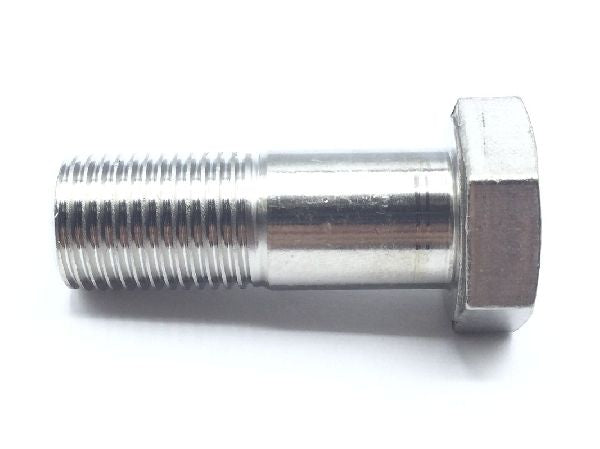

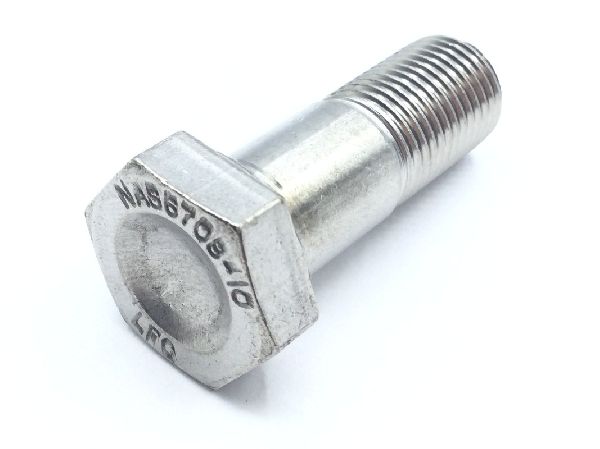

NAS6708U10 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $157.50

Units per Pack 1

Price per Pack $157.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $157.50

Add item to quote

Head Style

Hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

End Application: F-22
Fastener Length: Between 1.345 inches and 1.375 inches
Grip Diameter: Between 0.4990 inches and 0.4995 inches
Grip Length: Between 0.615 inches and 0.635 inches
Head Height: Between 0.250 inches and 0.265 inches
Material Specification: Ams5731 assn standard single material response or ams5737 assn standard single material response or ams5732 assn standard single material response or ams5853 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Part Name Assigned By Controlling Agency: non-locking long threads a286 cres close tolerance hex head blot
Special Features: hex head requested namebolt
Thread Diameter: 0.500 inches
Thread Direction: Right-hand
Thread Length: 0.735 inches
Thread Qty Per Inch (tpi): 20
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.741 inches and 0.752 inches
