NAS671-0 Plain Hexagon Nut

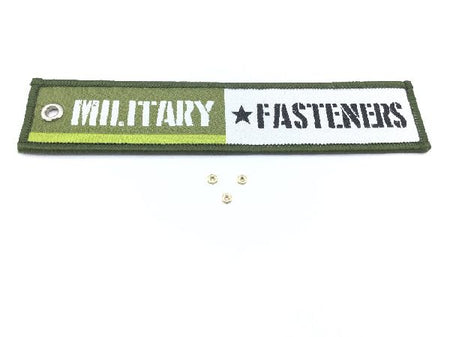

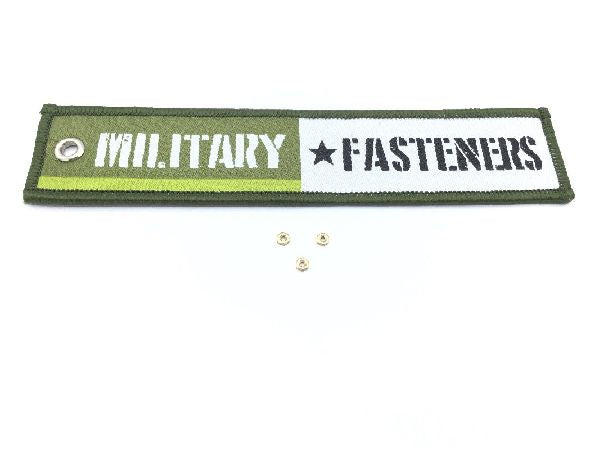

NAS671-0 Plain Hexagon Nut (2)

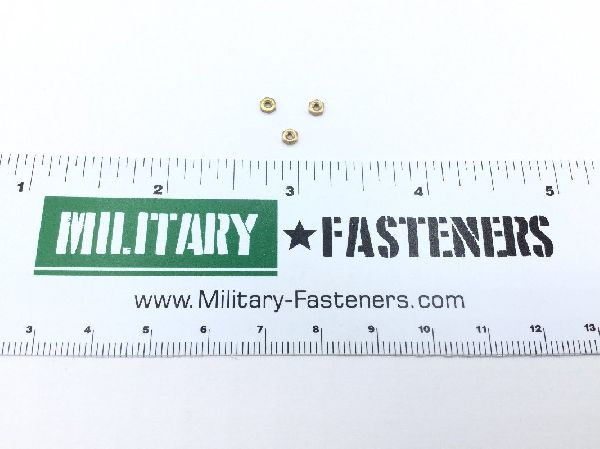

NAS671-0 Plain Hexagon Nut (3)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS671-0 Plain Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unf (fine thread)

Thread Size

0.060 inches

Bearing Surface Type: Chamfered
Countersink Angle: 110.0 degrees nut
Nondefinitive Specification/std Data: 2 type
Nut Height: Between 0.043 inches and 0.050 inches
Nut Style: Hexagon
Specification Data: 80205-nas671 government standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 80
Width Across Flats: Between 0.121 inches and 0.125 inches
