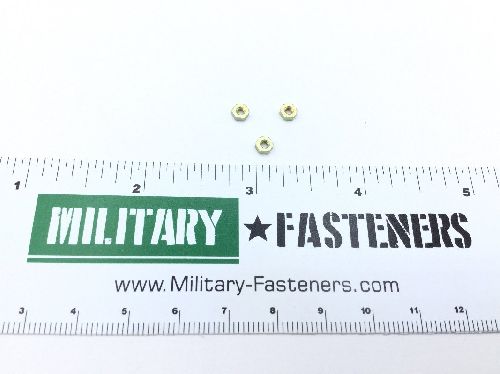

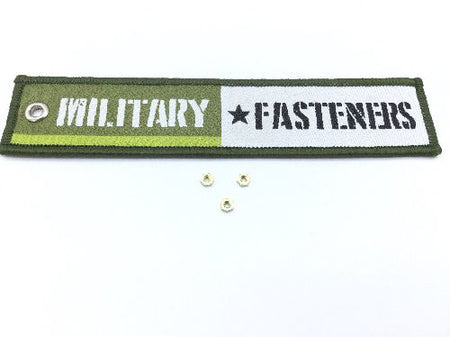

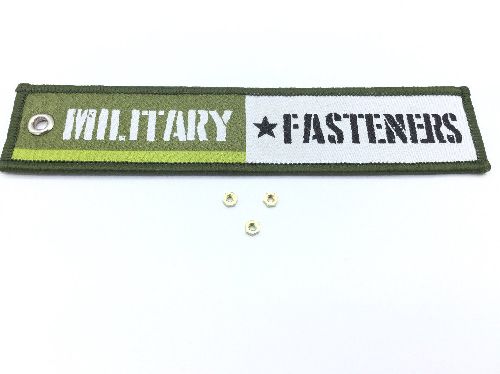

NAS671-2 Plain Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.52

Units per Pack 25

Price per Pack $38.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $38.00

Add item to quote

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unjc

Thread Size

0.086 inches

Bearing Surface Type: Chamfered
Countersink Angle: 110.0 degrees nut
Nondefinitive Specification/std Data: 2 type
Nut Height: Between 0.057 inches and 0.066 inches
Nut Style: Hexagon
Specification Data: 80205-nas 671 government standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 56
Width Across Flats: Between 0.150 inches and 0.156 inches
