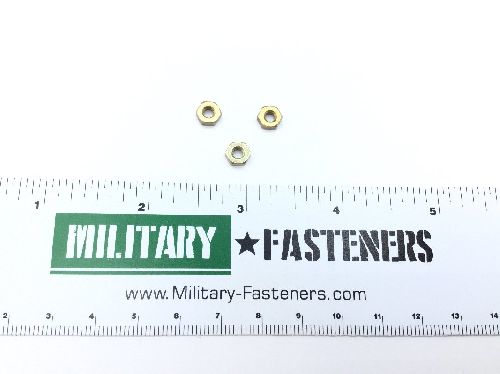

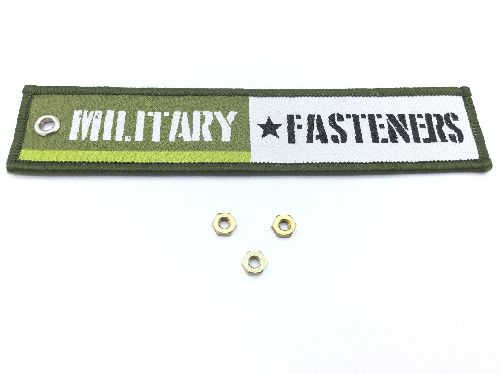

NAS671-6 Plain Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $0.35

Units per Pack 100

Price per Pack $35.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $35.00

Add item to quote

Material

Steel

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjc

Thread Size

0.138 inches

Bearing Surface Type: Chamfered
Countersink Angle: 110.0 degrees nut
Criticality Code Justification: Nhcf
Nondefinitive Specification/std Data: 2 type
Nuclear Hardness Critical Feature: Hardened
Nut Height: Between 0.087 inches and 0.098 inches
Nut Style: Hexagon
Specification Data: 80205-nas671 professional/industrial association standard
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.241 inches and 0.250 inches
