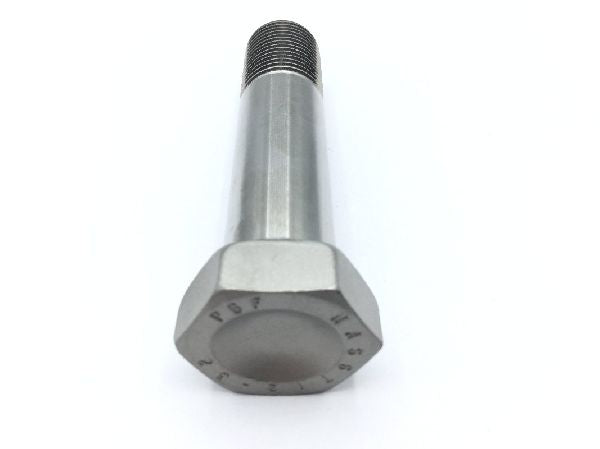

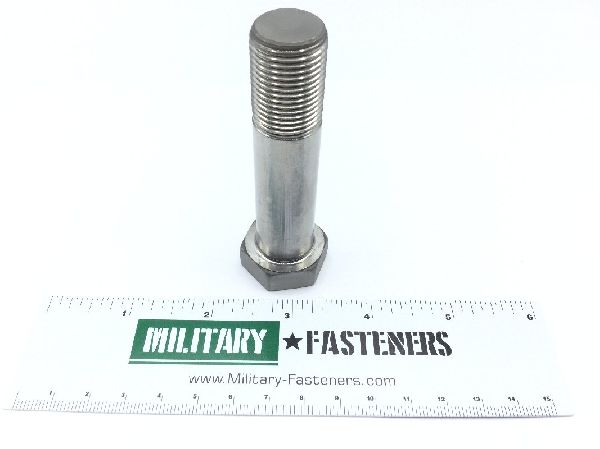

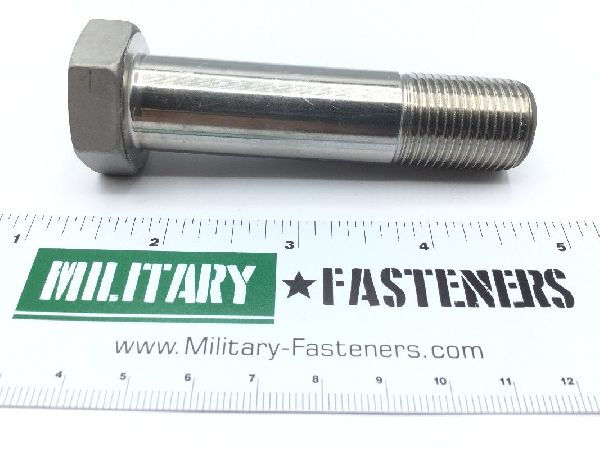

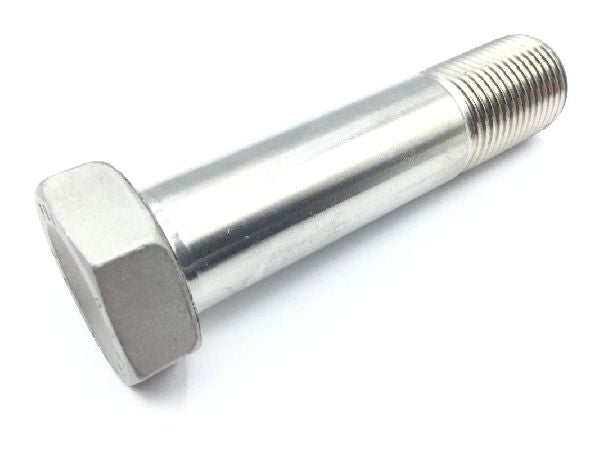

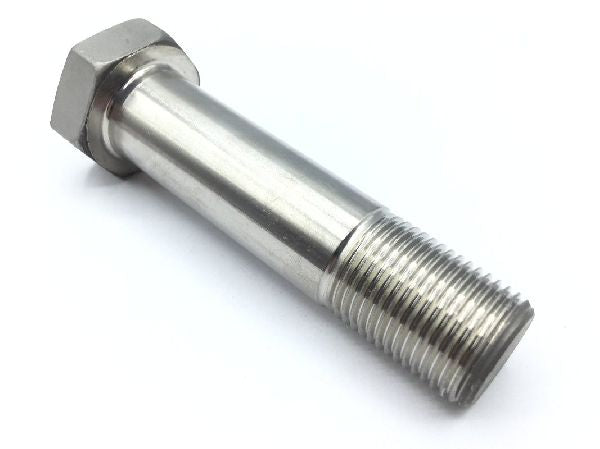

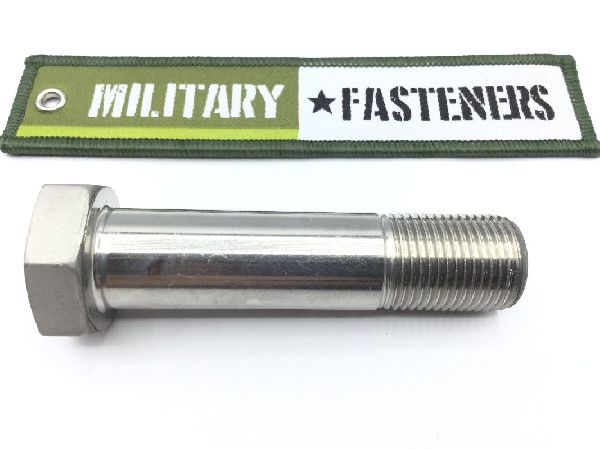

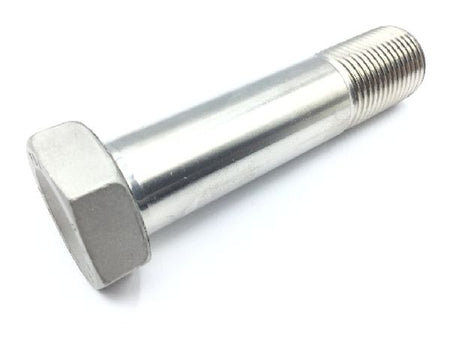

NAS6712U32 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Dished hexagon

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Fastener Length: Between 3.026 inches and 3.056 inches
Grip Diameter: Between 0.7485 inches and 0.7490 inches
Grip Length: Between 1.990 inches and 2.010 inches
Head Height: Between 0.375 inches and 0.390 inches
Material Specification: Ams7531 assn standard single material response or ams5737 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Surface Finish: 32.0 microinches bearing surface of head32.0 microinches grip32.0 microinches threads
Thread Diameter: 0.750 inches
Thread Direction: Right-hand
Thread Length: Between 1.016 inches and 1.066 inches
Thread Qty Per Inch (tpi): 16
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 1.052 inches and 1.065 inches
