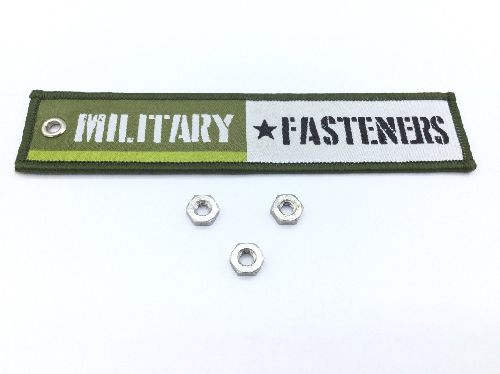

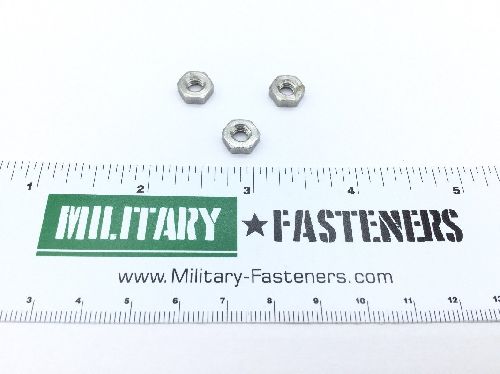

NAS671C10 Plain Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $2.00

Units per Pack 25

Price per Pack $50.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $50.00

Add item to quote

Material

Steel comp

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Countersink Angle: 110 degrees
Material Specification: Astm a582 assn standard single material response
Nut Height: Between 0.117 inches and 0.130 inches
Nut Style: Hexagon
Specification Data: 80205-nas671 professional/industrial association standard
Surface Type: Chamfered
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.332 inches and 0.344 inches
