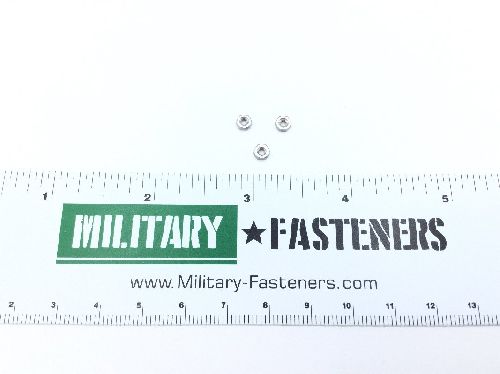

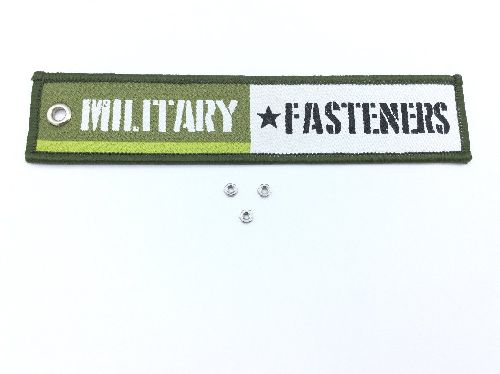

NAS671C2 Plain Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $0.73

Units per Pack 50

Price per Pack $36.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $36.50

Add item to quote

Material

Steel comp

Thread Class

3b

Thread Series

Unjc

Thread Size

0.086 inches

Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 110 degrees
Material Specification: Mil-s-7720 military specification all material responses
Nut Height: Between 0.057 inches and 0.066 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 56
Width Across Flats: Between 0.150 inches and 0.156 inches
