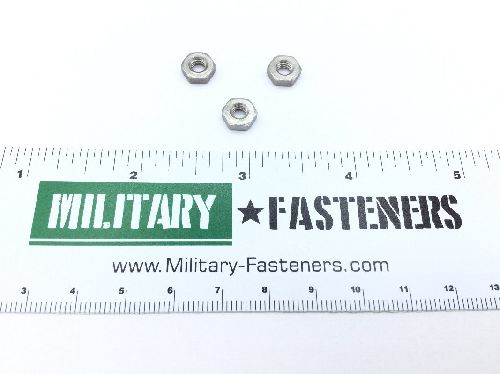

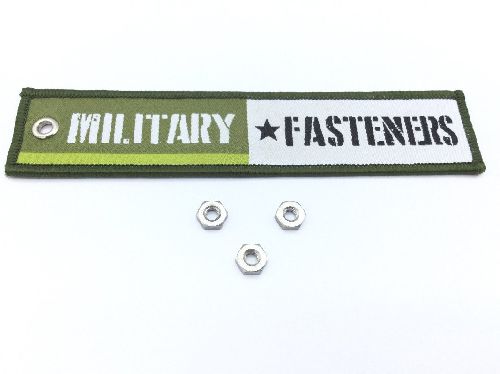

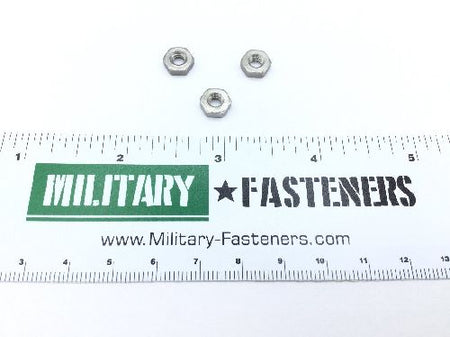

NAS671C8 Plain Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.11

Units per Pack 50

Price per Pack $55.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $55.50

Add item to quote

Material

Steel comp 303

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

3b

Thread Series

Unjc

Thread Size

0.164 inches

Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 110.0 degrees nut
Material Specification: Astm a582 assn standard single material response
Nut Height: Between 0.102 inches and 0.114 inches
Nut Style: Hexagon
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.302 inches and 0.313 inches
