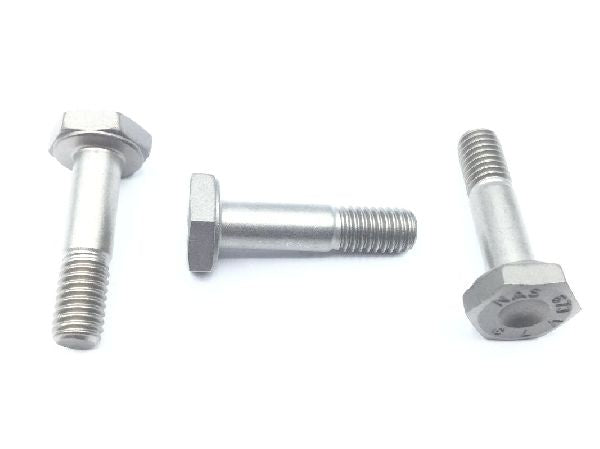

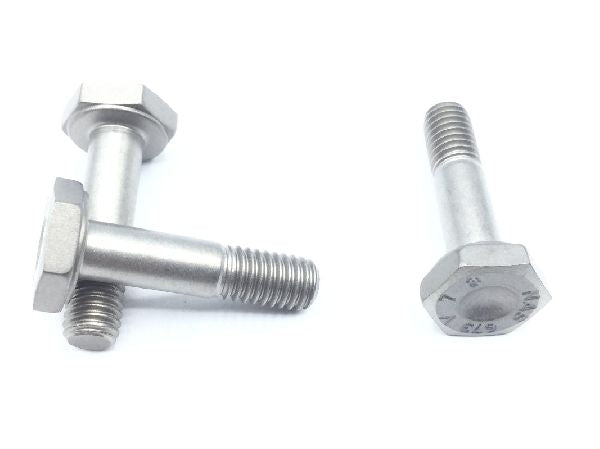

NAS673V7 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $3.81

Units per Pack 10

Price per Pack $38.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $38.10

Add item to quote

Head Style

Hexagon

Material

Titanium alloy

Thread Class

Fastener Length: Between 0.761 inches and 0.791 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: Between 0.428 inches and 0.448 inches
Head Height: 0.110 inches
Material Specification: Comp 6al-4v assn standard single material response nas 621
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas673 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.313 inches and 0.363 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.367 inches and 0.376 inches
