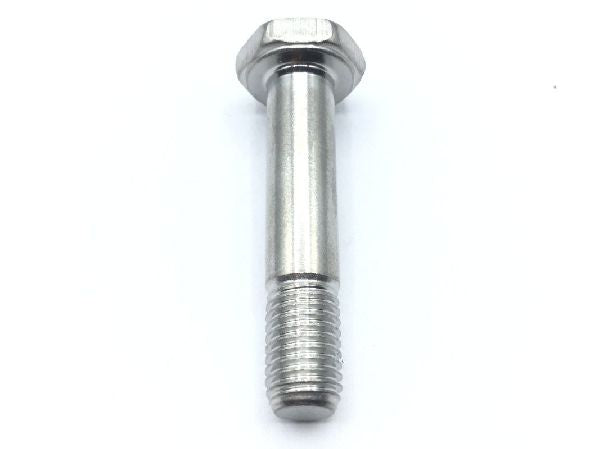

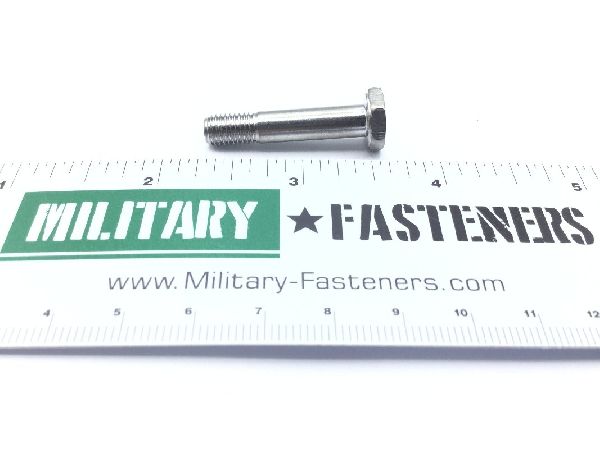

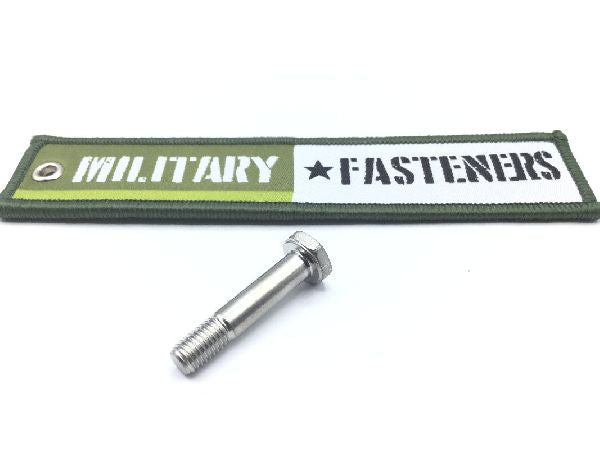

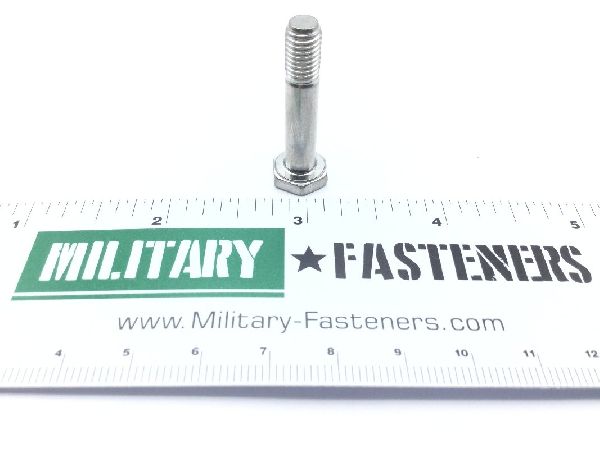

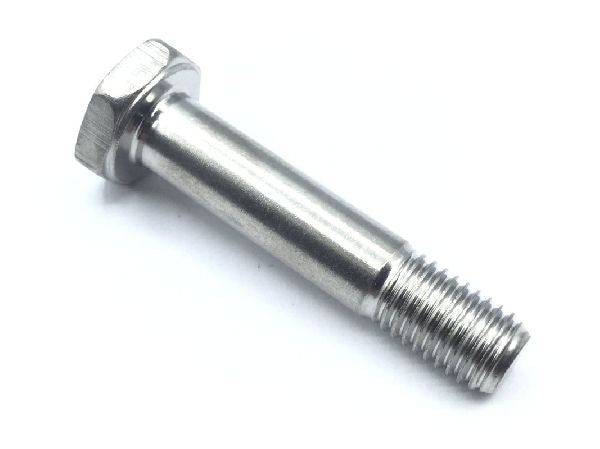

NAS674V13 Shear Bolt
- Product Series
- NAS
- ECCN
- EAR99
- Schedule
- 7318.15.8085
Unit of Measure:
EA
Add to Quote
We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.
Add to QuoteCouldn't load pickup availability
- Fastener Length
- 1.237 inches
- Grip Diameter
- Between 0.2490 inches and 0.2495 inches
- Grip Length
- 0.812 inches
- Head Height
- 0.125 inches
- Material Specification
- Nas 621 assn standard single material response
- Min. Tensile Strength (psi)
- 160000 pounds per square inch
- Thread Diameter
- 0.250 inches
- Thread Direction
- Right-hand
- Thread Length
- 0.425 inches
- Thread Qty Per Inch (tpi)
- 28
- Thread Series Designator
- Unf (fine thread)
- Width Between Flats
- Between 0.430 inches and 0.439 inches
