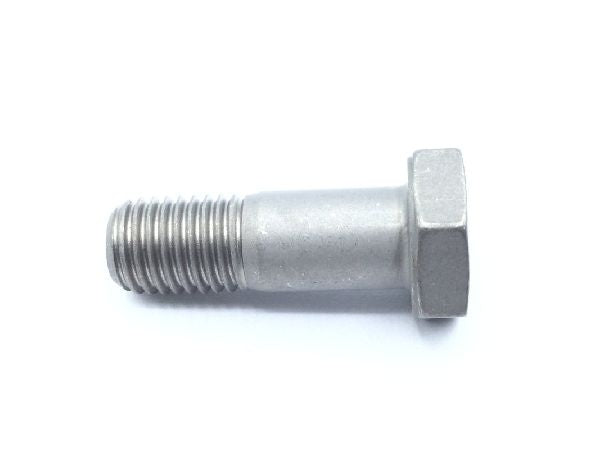

NAS675V7 Shear Bolt (3)

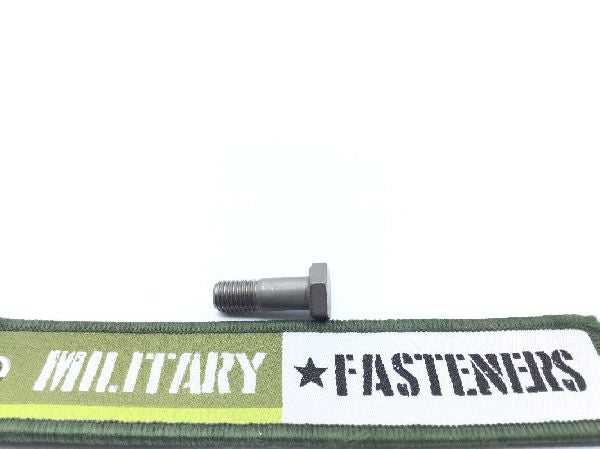

NAS675V7 Shear Bolt (4)

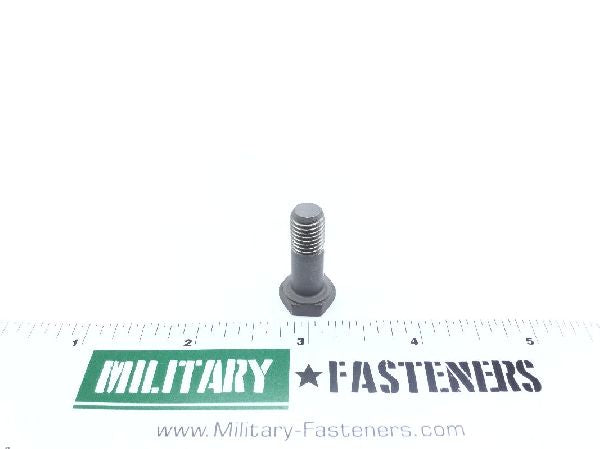

NAS675V7 Shear Bolt (5)

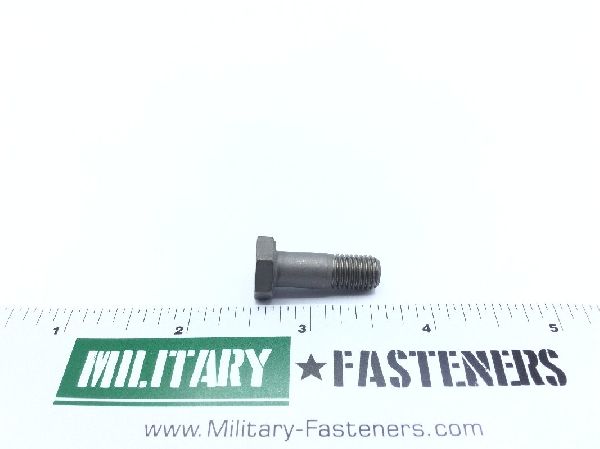

NAS675V7 Shear Bolt (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS675V7 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $41.51

Units per Pack 1

Price per Pack $41.51

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $41.51

Add item to quote

Head Style

Hexagon

Material

Titanium alloy

Thread Class

3a

Fastener Length: 0.907 inches
Grip Diameter: Between 0.3115 inches and 0.3120 inches
Grip Length: 0.438 inches
Head Height: 0.156 inches
Material Specification: Nas 621 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.312 inches
Thread Direction: Right-hand
Thread Length: 0.469 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.492 inches and 0.502 inches
