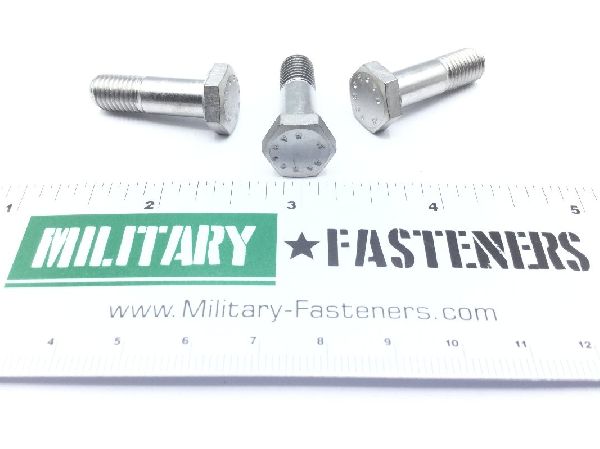

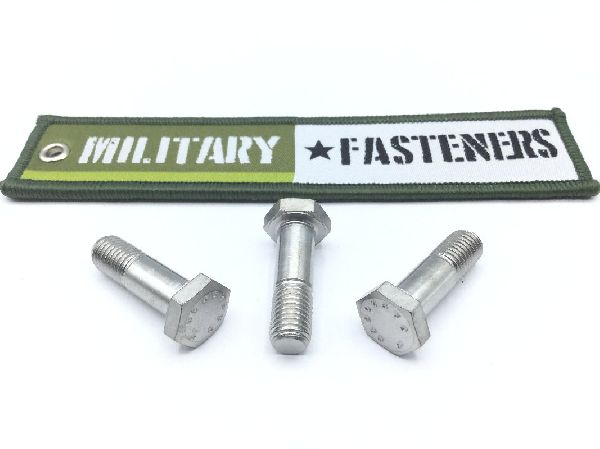

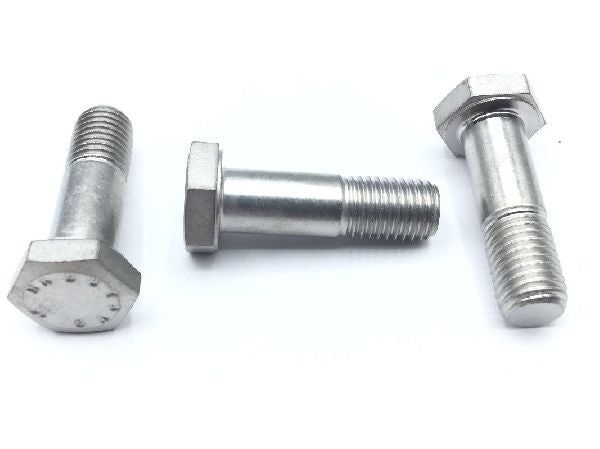

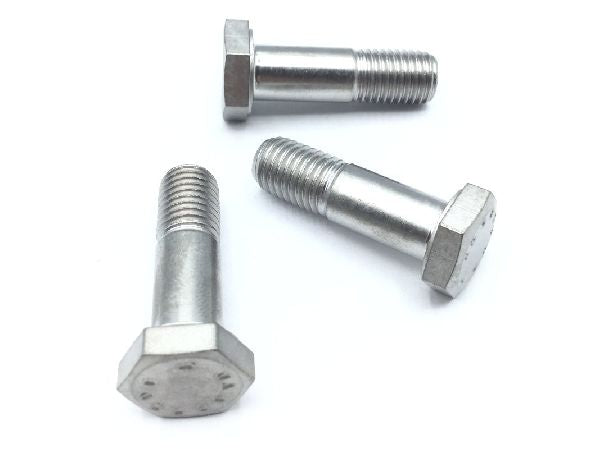

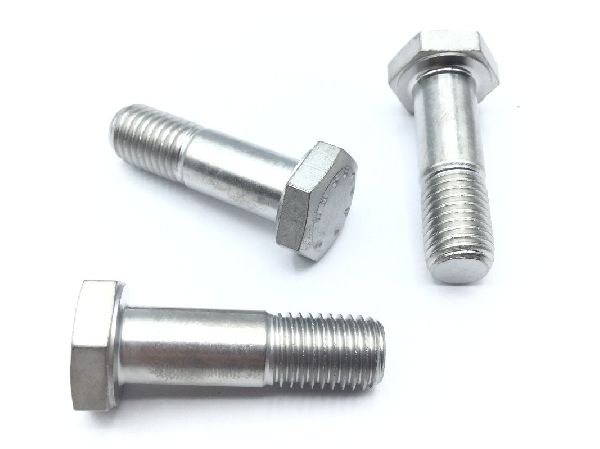

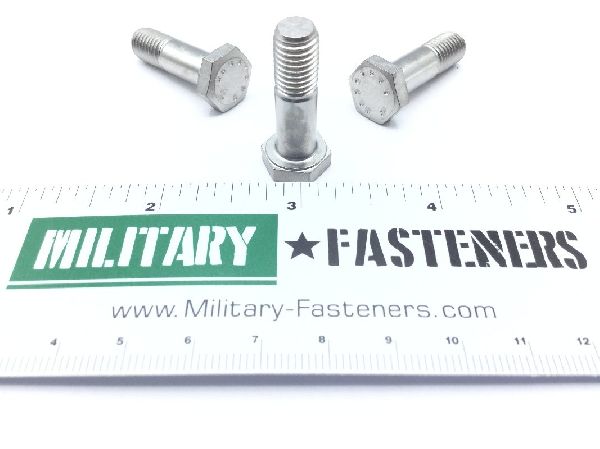

NAS675V9 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $13.17

Units per Pack 5

Price per Pack $65.85

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $65.85

Add item to quote

Head Style

Hexagon

Material

Titanium alloy

Thread Class

Fastener Length: 1.031 inches
Grip Diameter: 0.3115 inches
Grip Length: 0.562 inches
Head Height: Between 0.156 inches and 0.171 inches
Material Specification: Nas621 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas675 professional/industrial association standard
Thread Diameter: 0.3125 inches
Thread Direction: Right-hand
Thread Length: 0.469 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unf (fine thread)
Width Between Flats: Between 0.492 inches and 0.502 inches
