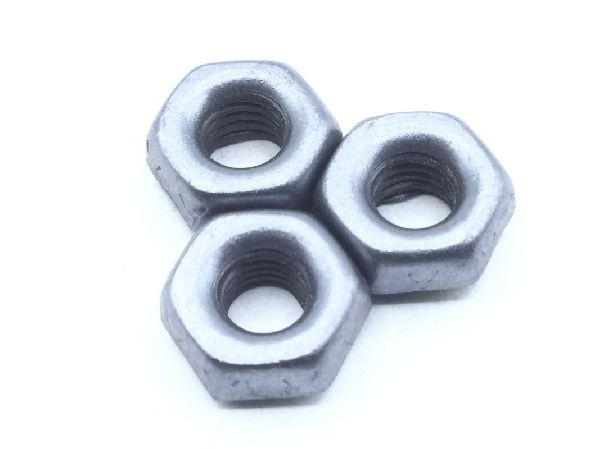

NAS679A3W Self-Locking Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.52

Units per Pack 25

Price per Pack $38.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $38.00

Add item to quote

Material

Steel

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

3b

Thread Quantity Per Inch (tpi)

32

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.190 inches

Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 120.0 degrees nut
End Application: B-1 support equipment; aircraft;tf-33 engine
Locking Feature: Prevailing torque all metal design
Nut Height: 0.188 inches
Nut Style: Hexagon
Specification Data: 26512-gn10u manufacturers standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Width Across Flats: Between 0.365 inches and 0.377 inches
Lubrication: Dry film lubricant
