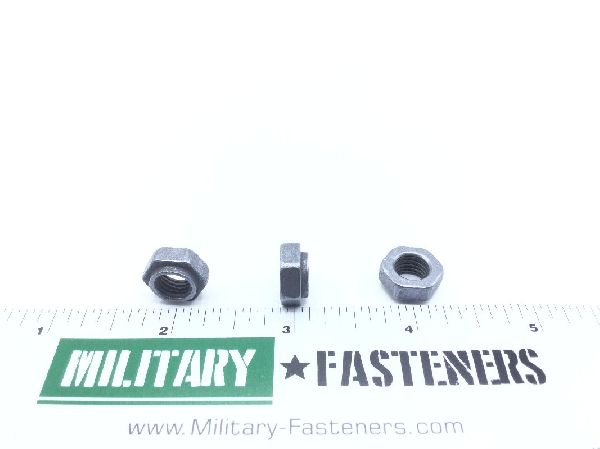

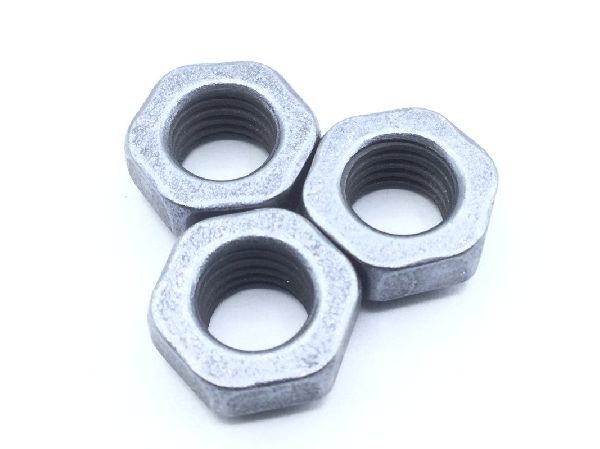

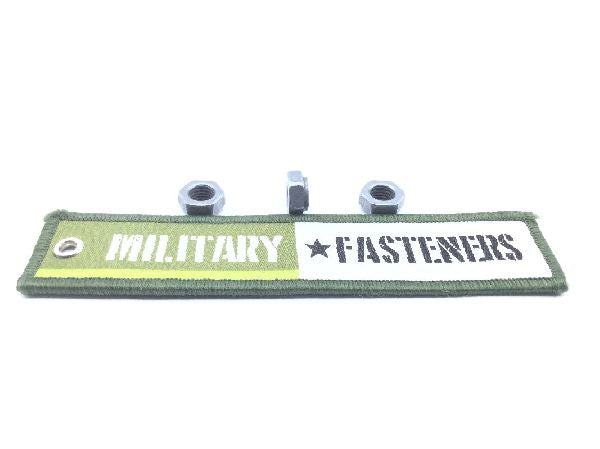

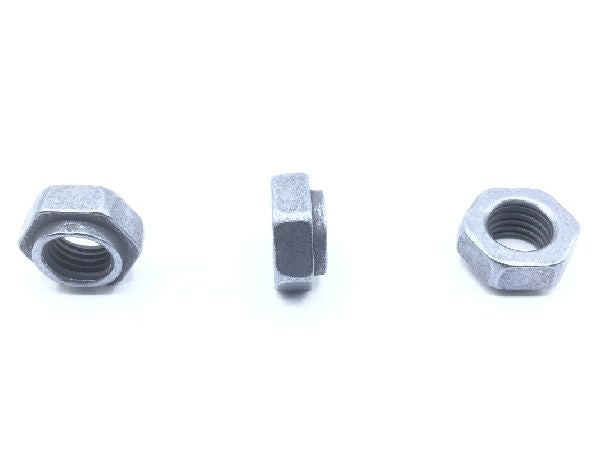

NAS679A5 Self-Locking Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.90

Units per Pack 10

Price per Pack $49.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $49.00

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.312 inches

Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Nut Style: Hexagon
Overall Height: Between 0.251 inches and 0.266 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Washer Outside Diameter: 0.520 inches
Washer Thickness: 0.023 inches
Width Across Flats: Between 0.367 inches and 0.378 inches
Lubrication: Dry film lubricant
