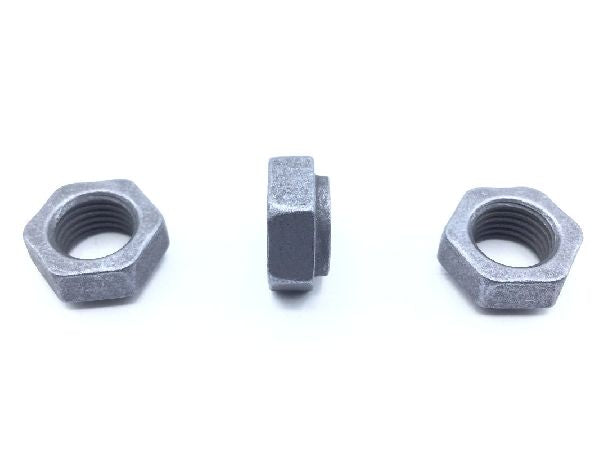

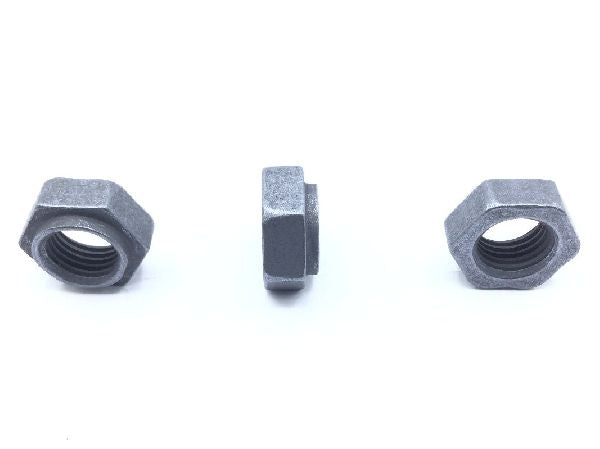

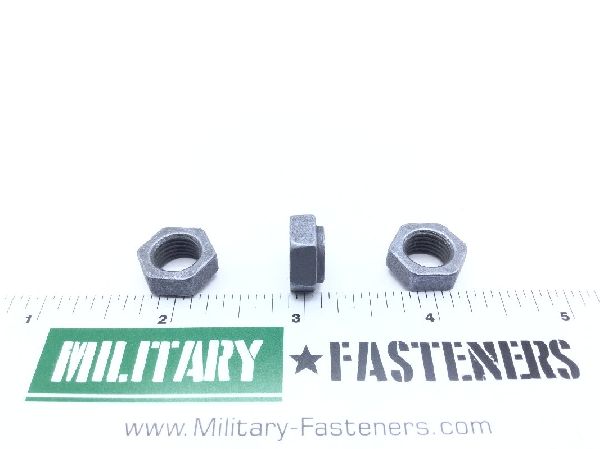

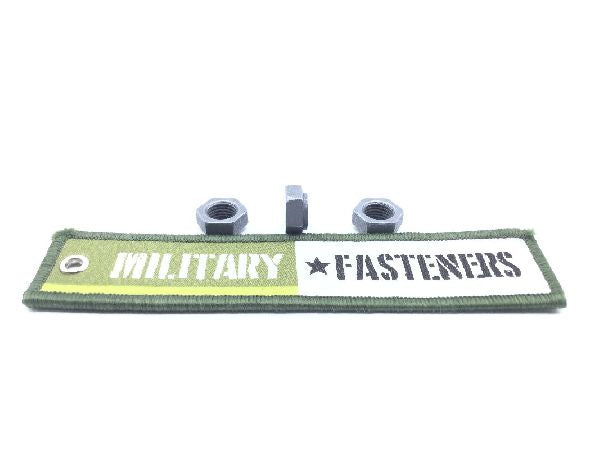

NAS679A6 Self-Locking Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.375 inches

Bearing Surface Type: Chamfered or washer faced
Locking Feature: Prevailing torque all metal design
Material Specification: Mil-n-25027 military specification single material response
Nut Height: 0.282 inches
Nut Style: Hexagon
Tempurature Rating: 550 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.553 inches and 0.564 inches
