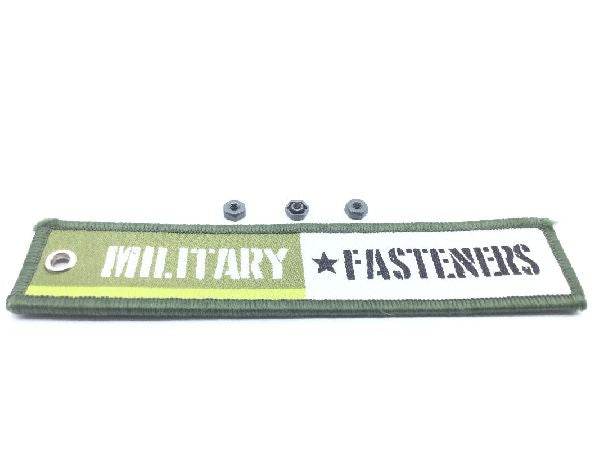

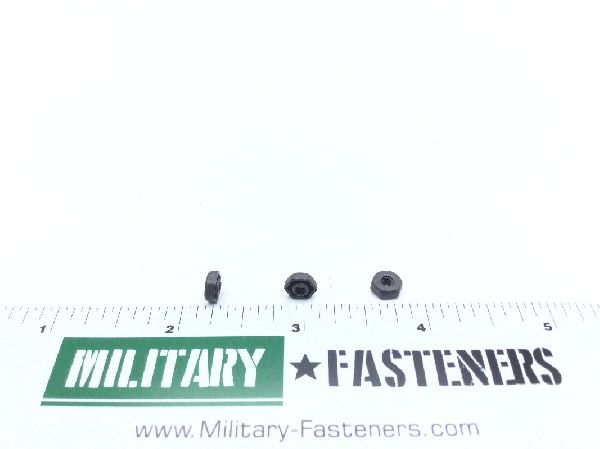

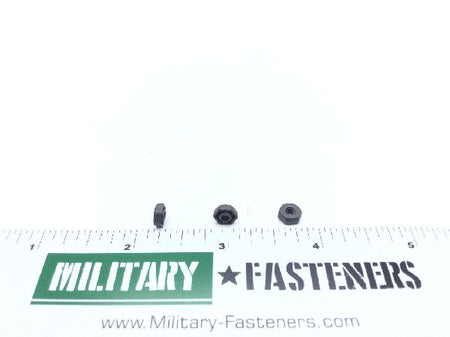

NAS679C04M Self-Locking Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Iron alloy 660

Surface Treatment

Ams 2410 assn standard single treatment response

Thread Class

Thread Series

Unjc

Thread Size

0.112 inches

Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 120.0 degrees nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response
Nut Height: 0.125 inches
Nut Style: Hexagon
Precious Material: Silver
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 40
Width Across Flats: Between 0.240 inches and 0.252 inches
Lubrication: Dry film lubricant
