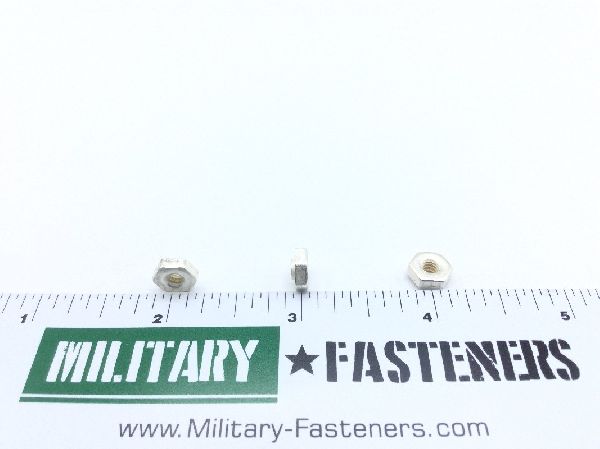

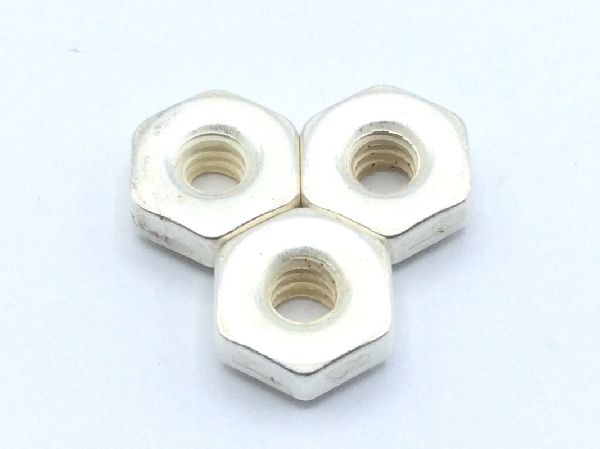

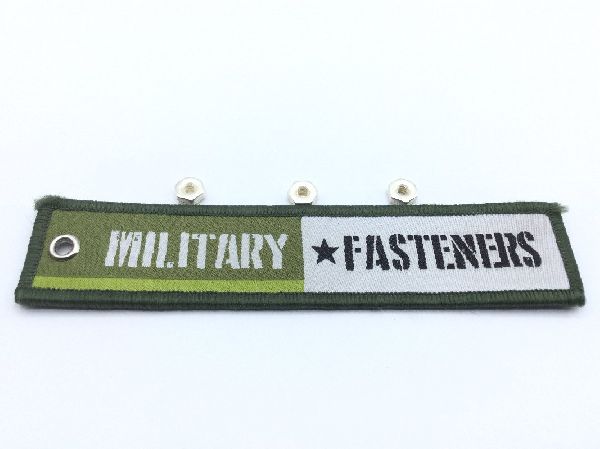

NAS679C06W Locknut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $2.49

Units per Pack 25

Price per Pack $62.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $62.25

Add item to quote

Material

Iron alloy 660

Surface Treatment

Ams 2410 assn standard single treatment response

Thread Class

Thread Series

Unjc

Thread Size

0.138 inches

Bearing Surface Finish: 125.0 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 120.0 degrees nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response
Nut Height: 0.141 inches
Nut Style: Hexagon
Precious Material: Silver
Special Features: Interanl wrenching
Specification Data: 80205-nas679 professional/industrial association standard
Tempurature Rating: 800.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Width Across Flats: Between 0.302 inches and 0.314 inches
