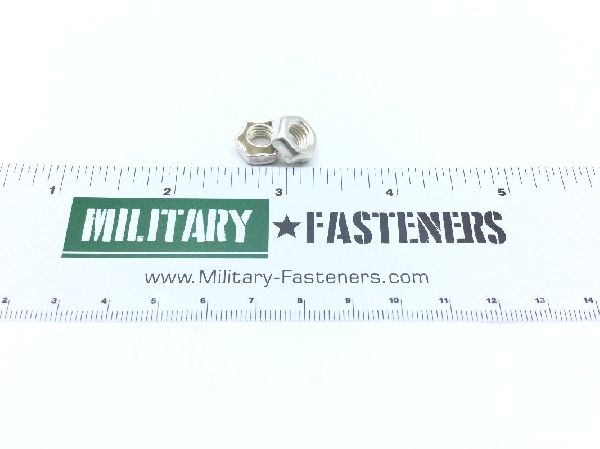

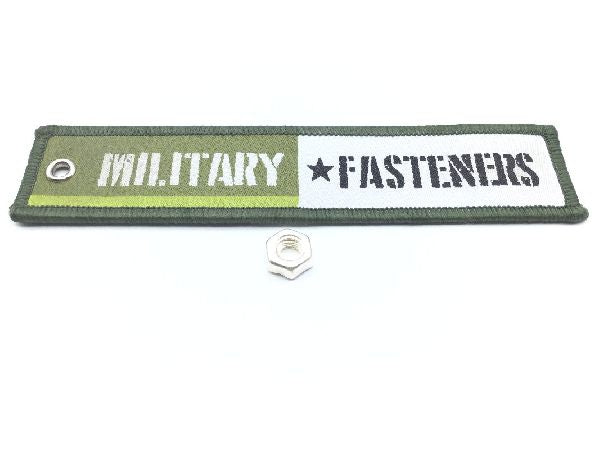

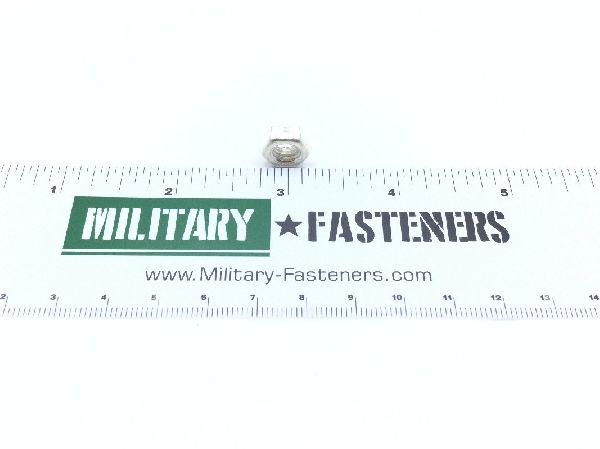

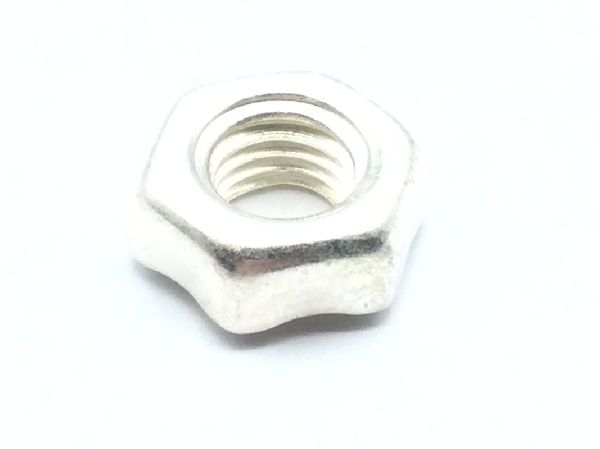

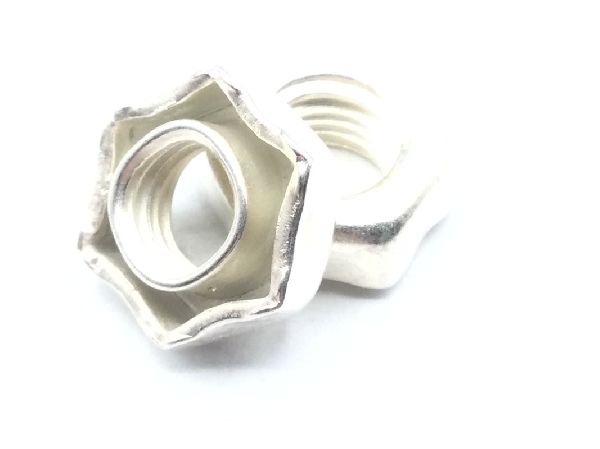

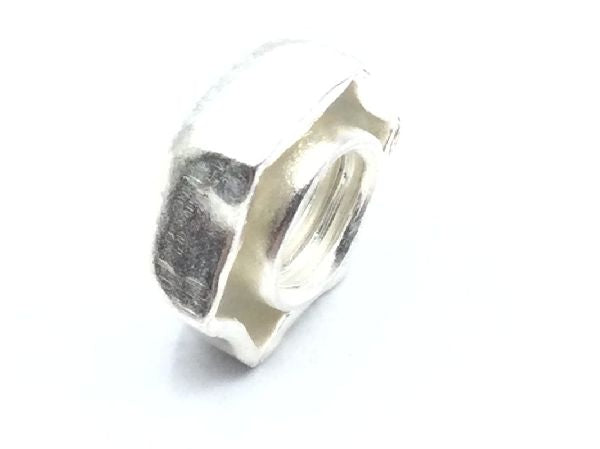

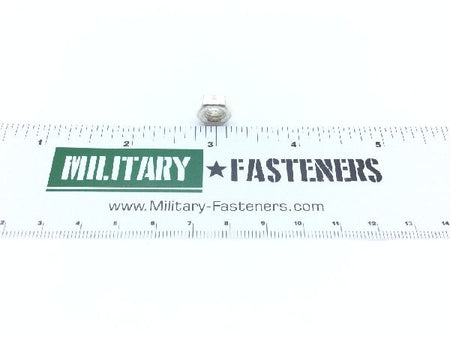

NAS679C4W Self-Locking Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.15

Units per Pack 10

Price per Pack $41.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $41.50

Add item to quote

Material

Iron alloy 660

Surface Treatment

Ams 2410 assn standard single treatment response

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.25 inches

Bearing Surface Finish: 125 microinches
Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 120 degrees nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response
Nut Height: 0.219 inches
Nut Style: Hexagon
Precious Material: Silver
Special Features: Internal wrenching
Specification Data: 81205-bacn10by manufacturers standard
Tempurature Rating: 800 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 28
Width Across Flats: Between 0.43 inches and 0.439 inches
