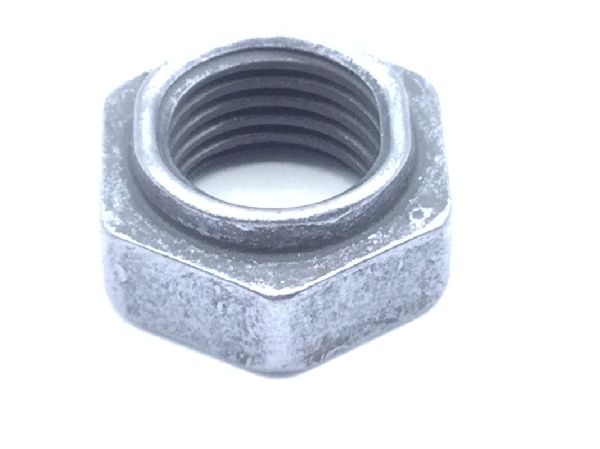

NAS679C6M Self-Locking Hexagon Nut

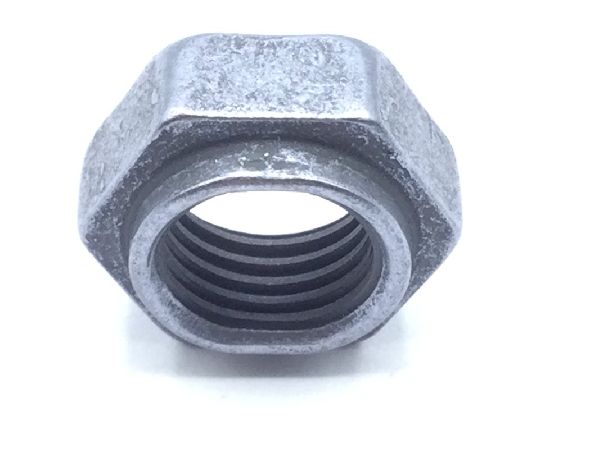

NAS679C6M Self-Locking Hexagon Nut (2)

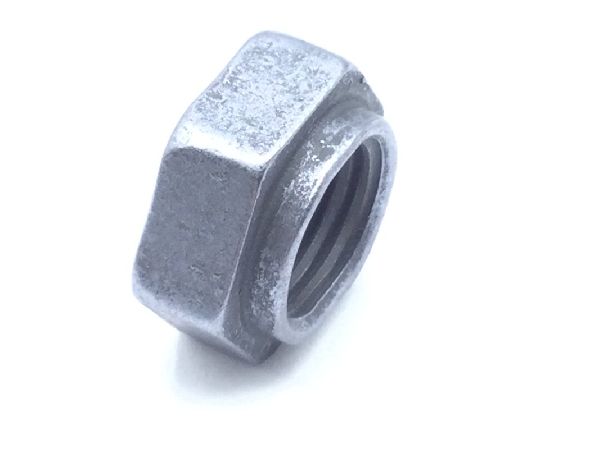

NAS679C6M Self-Locking Hexagon Nut (3)

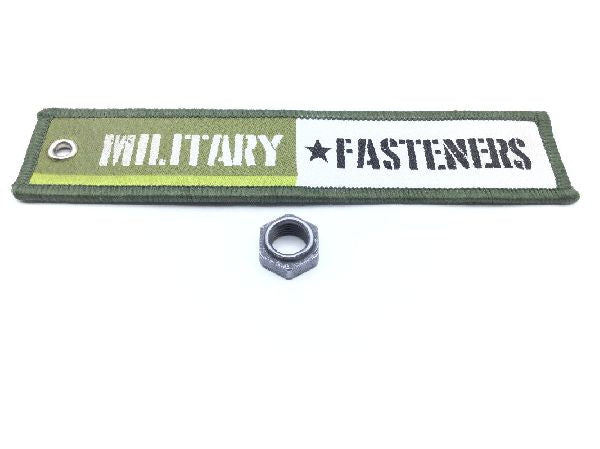

NAS679C6M Self-Locking Hexagon Nut (4)

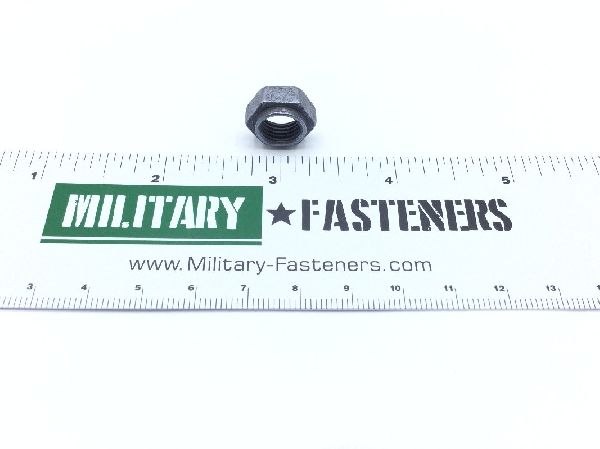

NAS679C6M Self-Locking Hexagon Nut (5)

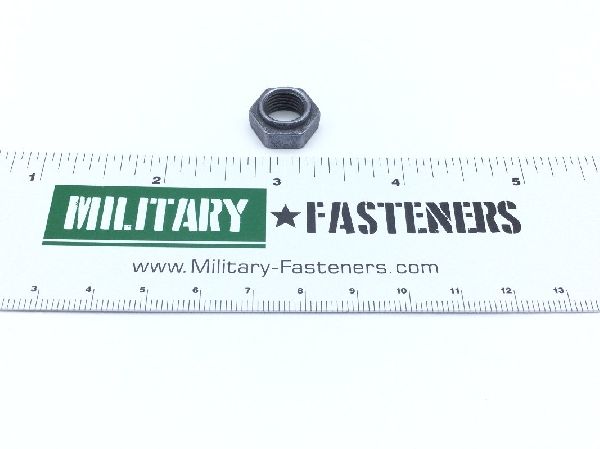

NAS679C6M Self-Locking Hexagon Nut (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS679C6M Self-Locking Hexagon Nut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0000

Price per Unit $15.75

Units per Pack 5

Price per Pack $78.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $78.75

Add item to quote

Material

Iron alloy 660

Thread Class

3b

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.375 inches

Bearing Surface Type: Chamfered or washer faced
Countersink Angle: 120.0 degrees nut
Locking Feature: Prevailing torque all metal design
Material Specification: Ams 5525 assn standard single material response
Nut Height: 0.282 inches
Nut Style: Hexagon
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Width Across Flats: Between 0.553 inches and 0.564 inches
Lubrication: Dry film lubricant
