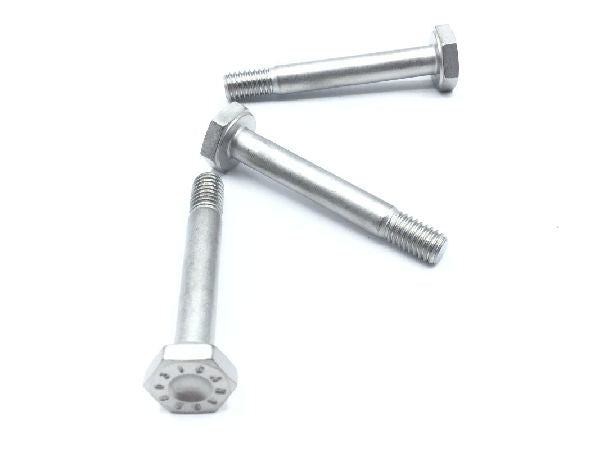

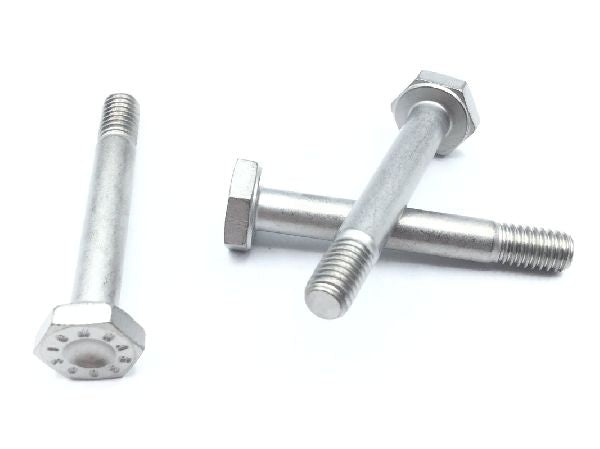

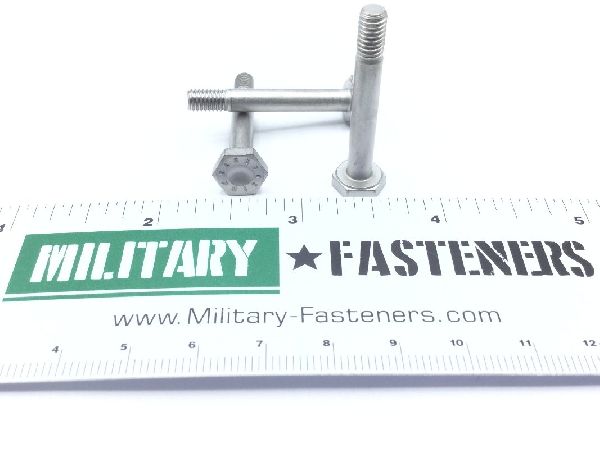

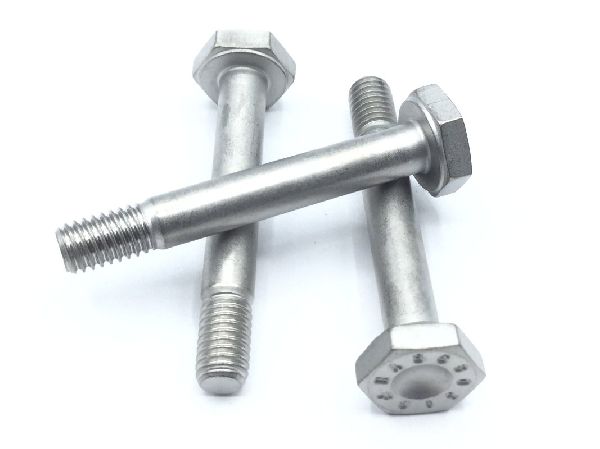

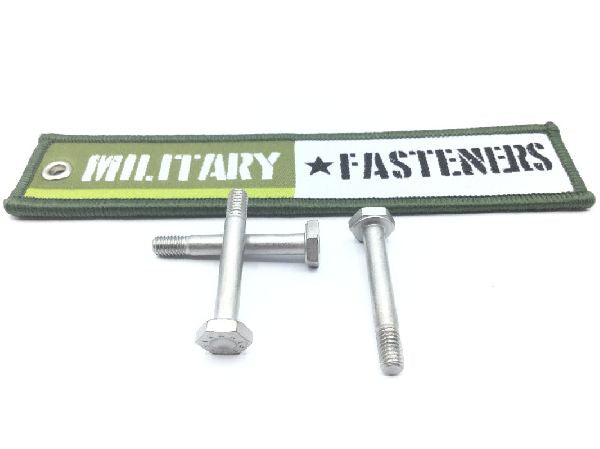

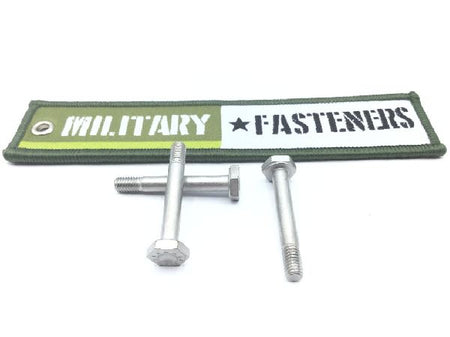

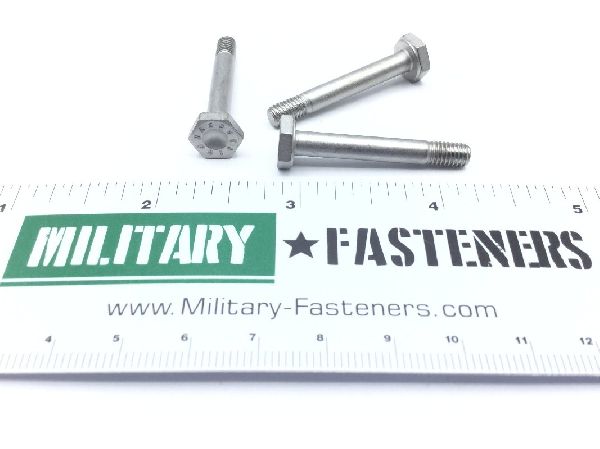

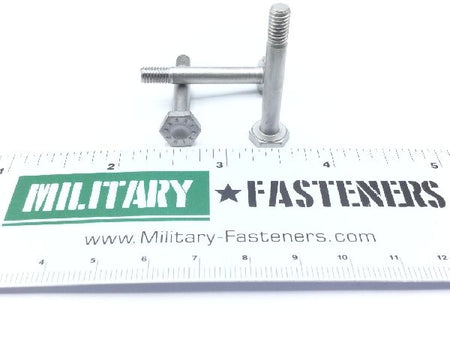

NAS6803U16 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $12.82

Units per Pack 5

Price per Pack $64.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $64.10

Add item to quote

Head Style

Hexagon

Material

Titanium alloy uns r56400

Thread Class

Fastener Length: Between 1.330 inches and 1.360 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: Between 0.990 inches and 1.010 inches
Head Height: Between 0.110 inches and 0.125 inches
Material Specification: Ams 4928 assn standard single material response and ams 4967 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6803 professional/industrial association standard
Surface Finish: 32.0 microinches bearing surface of head
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.345 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
