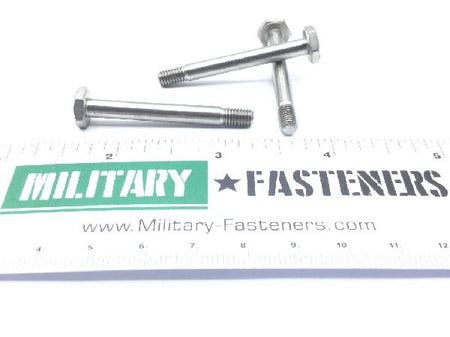

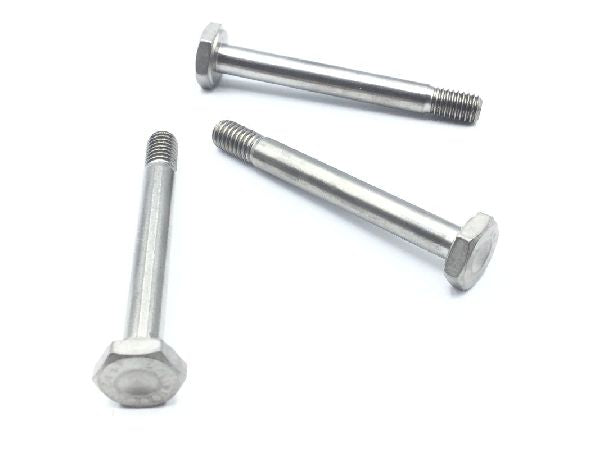

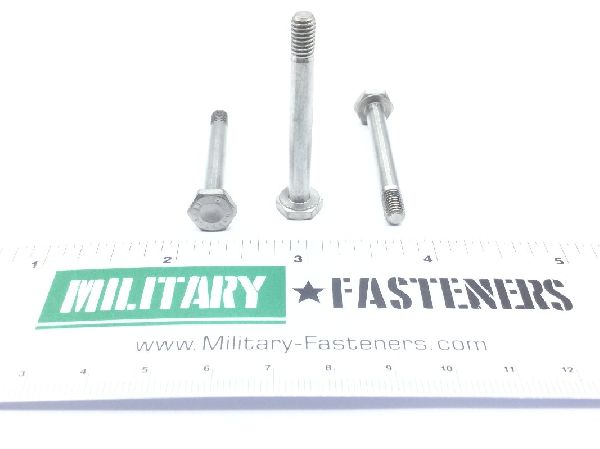

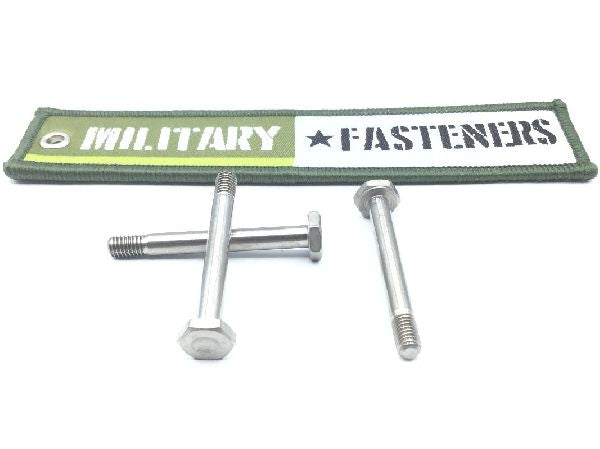

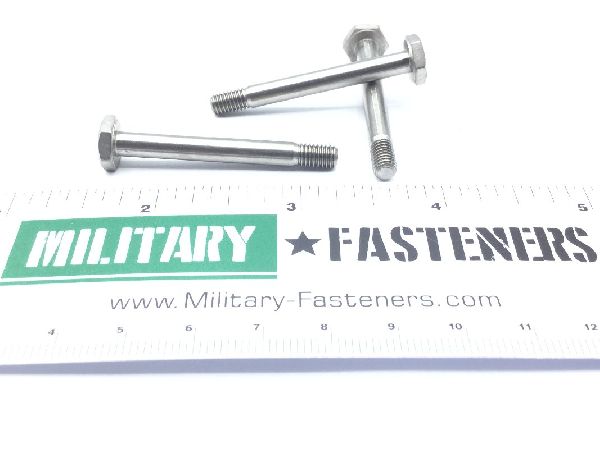

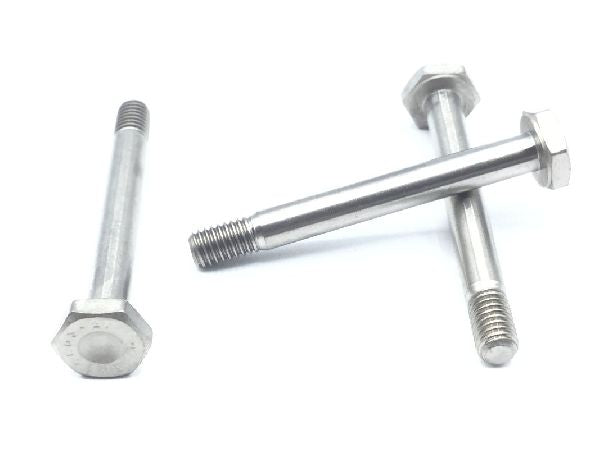

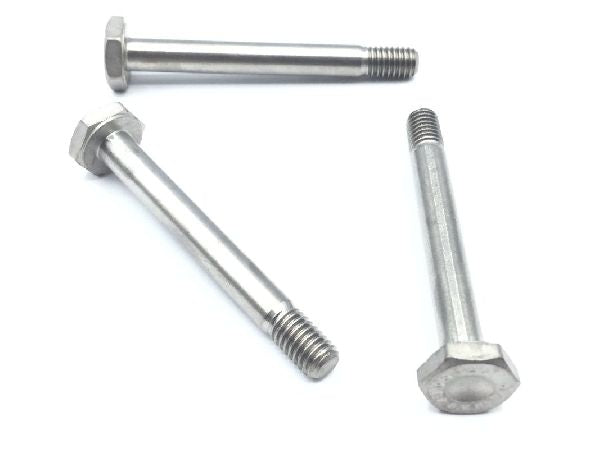

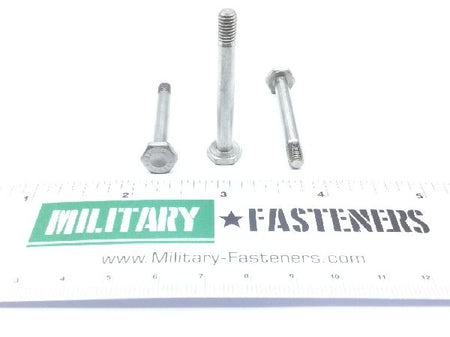

NAS6803U21 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $6.62

Units per Pack 10

Price per Pack $66.20

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $66.20

Add item to quote

Head Style

Dished hexagon

Material

Titanium alloy uns r56400

Thread Class

Fastener Length: Between 1.642 inches and 1.672 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: Between 1.302 inches and 1.322 inches
Head Height: Between 0.110 inches and 0.125 inches
Material Specification: Ams 4928 assn standard single material response or ams 4967 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Single Shear Strength: 95000 pounds per square inch
Specification Data: 80205-nas6803 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 1.580 inches and 1.672 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.367 inches and 0.376 inches
