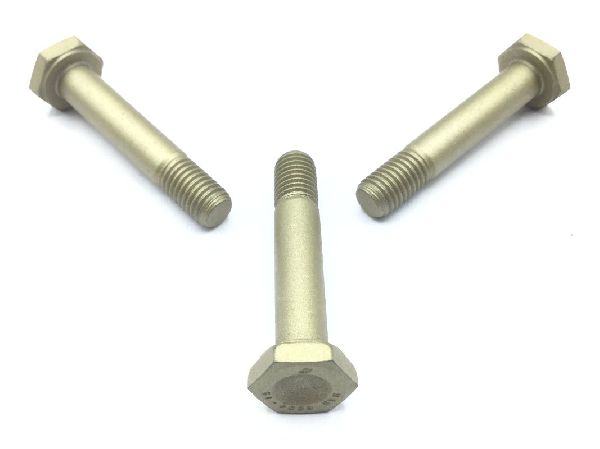

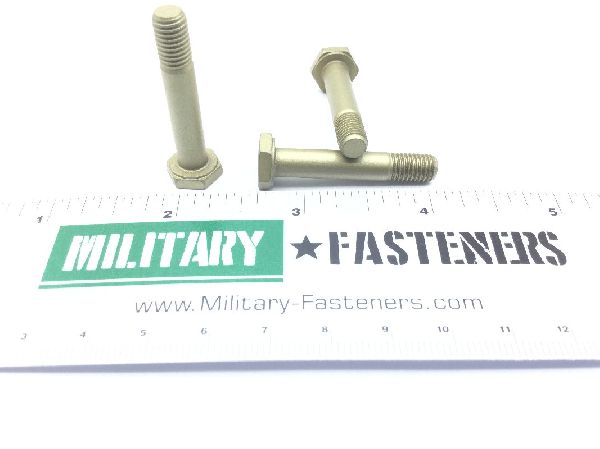

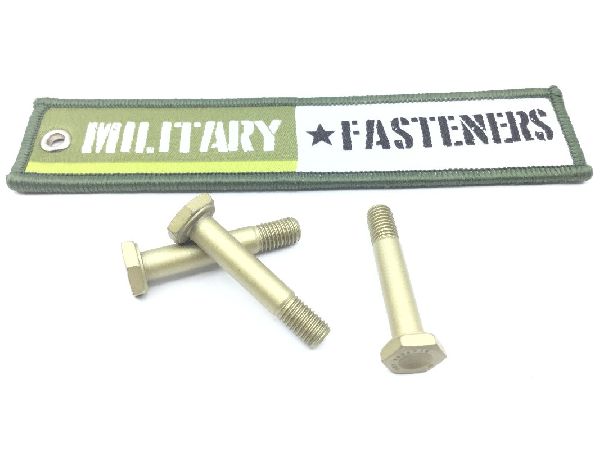

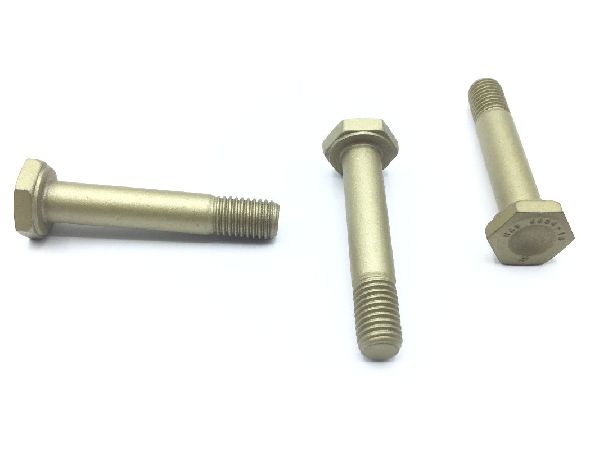

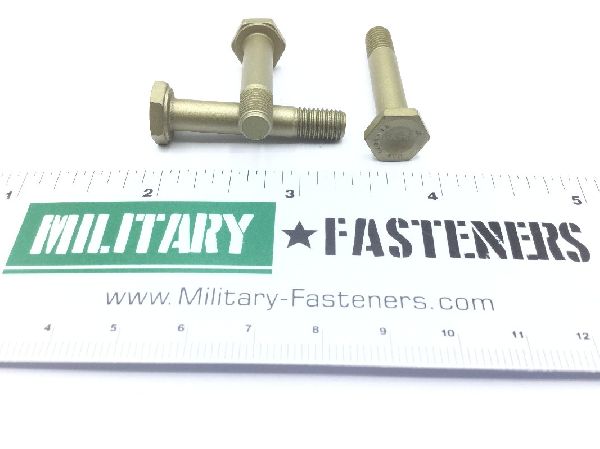

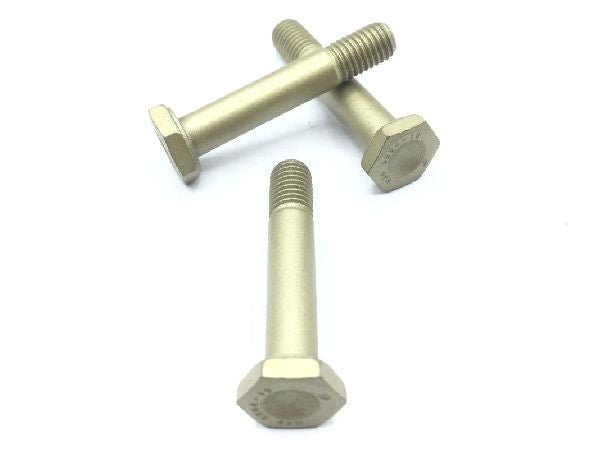

NAS6804A15 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $12.13

Units per Pack 5

Price per Pack $60.65

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $60.65

Add item to quote

Head Style

Dished hexagon

Material

Titanium alloy uns r56400

Thread Class

Fastener Length: Between 1.348 inches and 1.378 inches
Grip Diameter: Between 0.2485 inches and 0.2495 inches
Grip Length: Between 0.928 inches and 0.948 inches
Head Height: Between 0.125 inches and 0.140 inches
Material Specification: Ams 4928 assn standard single material response or ams 4967 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6804 professional/industrial association standard
Surface Finish: 32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.425 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unc (coarse thread)
Width Between Flats: Between 0.429 inches and 0.439 inches
