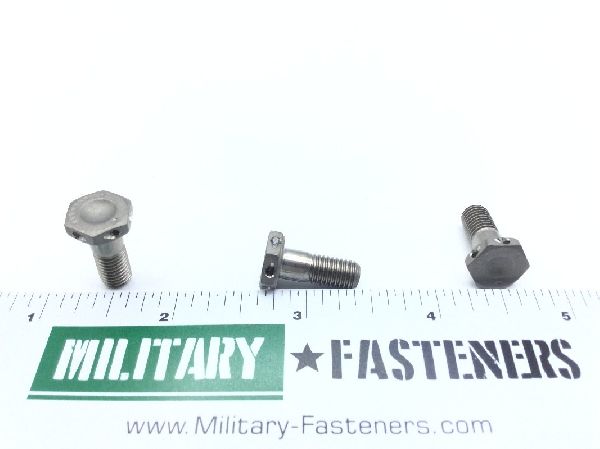

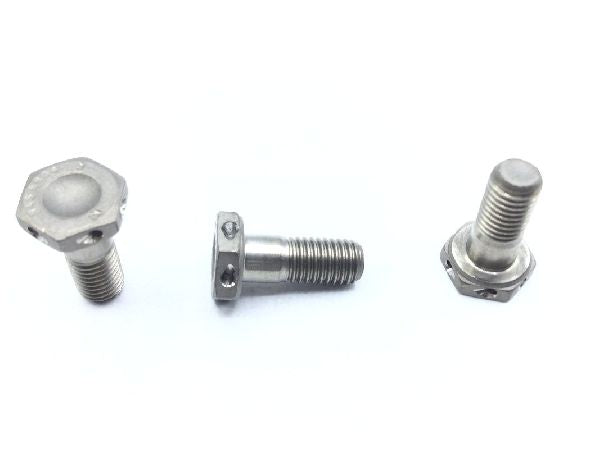

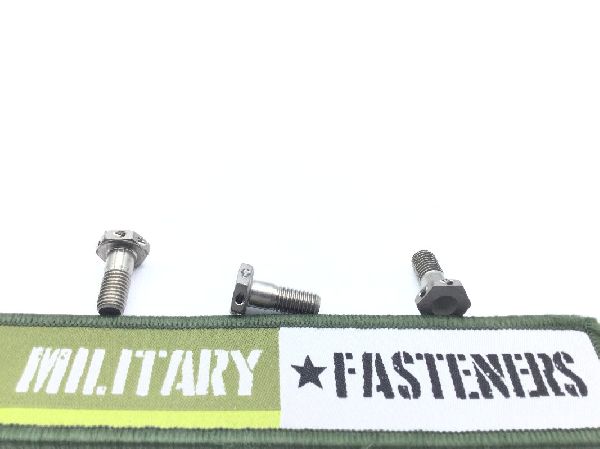

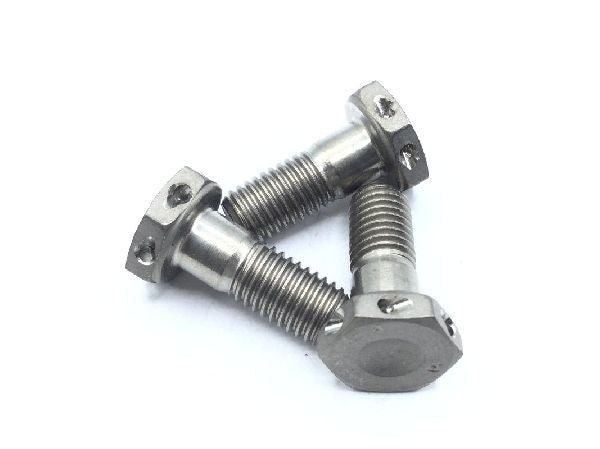

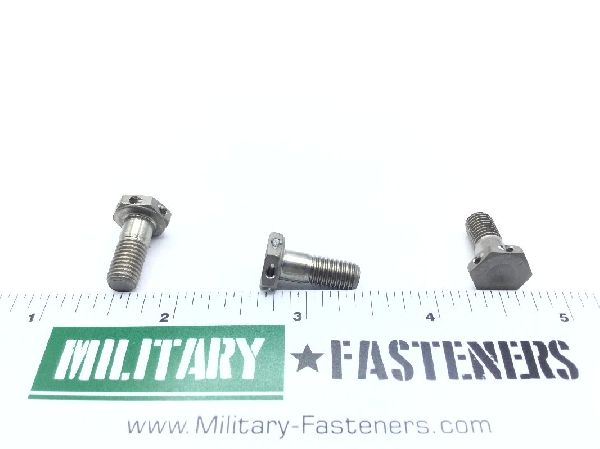

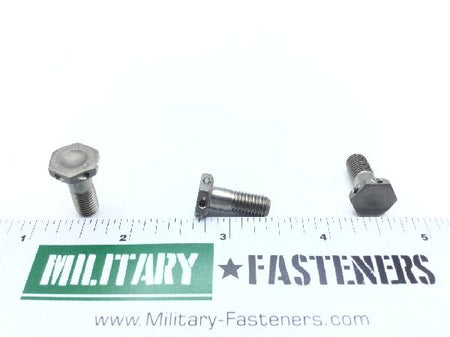

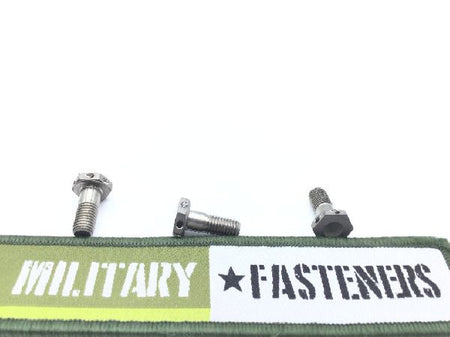

NAS6804HU3 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $10.50

Units per Pack 5

Price per Pack $52.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $52.50

Add item to quote

Head Style

Dished hexagon

Material

Titanium alloy

Thread Class

Fastener Length: Between 0.598 inches and 0.628 inches
Grip Diameter: Between 0.2490 inches and 0.2495 inches
Grip Length: Between 0.178 inches and 0.198 inches
Head Height: Between 0.125 inches and 0.140 inches
Hole Configuration Style: Hexagon flats
Hole Quantity: 3
Hole Type: Drilled
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6804 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: Between 0.400 inches and 0.450 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.430 inches and 0.439 inches
Hole Diameter: 0.046 inches
