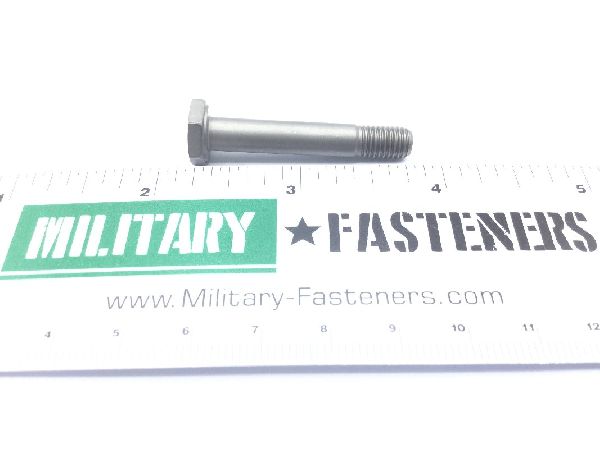

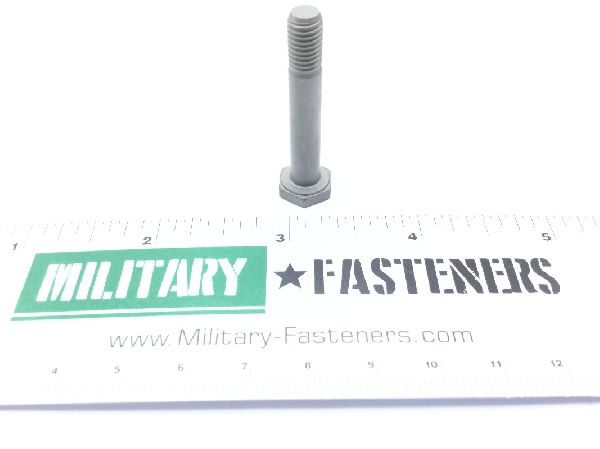

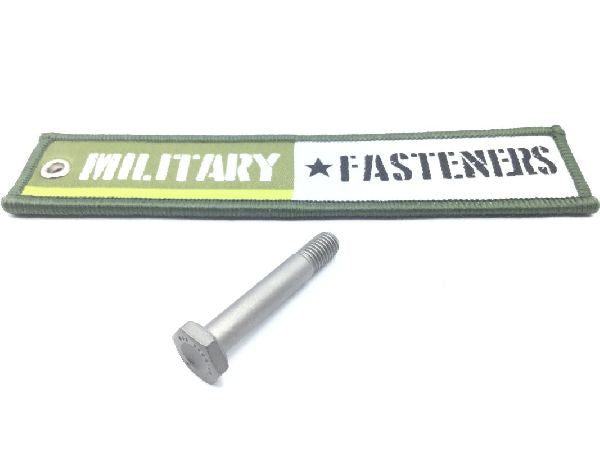

NAS6804U17 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $57.77

Units per Pack 1

Price per Pack $57.77

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 1

Total Unit Quantity:

Total Packs 1

Total Price $57.77

Add item to quote

Head Style

Dished hexagon

Material

Titanium alloy uns r56400

Thread Class

Fastener Length: Between 1.472 inches and 1.502 inches
Grip Diameter: Between 0.2490 inches and 0.2495 inches
Grip Length: Between 1.052 inches and 1.072 inches
Head Height: Between 0.125 inches and 0.140 inches
Material Specification: Ams4928 assn standard single material response or ams4967 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas6804 professional/industrial association standard
Surface Finish: 32.0 microinches bearing surface of head32.0 microinches grip32.0 microinches threads
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.425 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.429 inches and 0.439 inches
