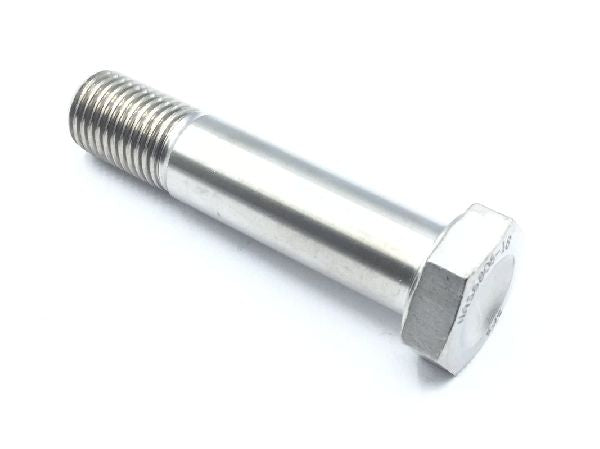

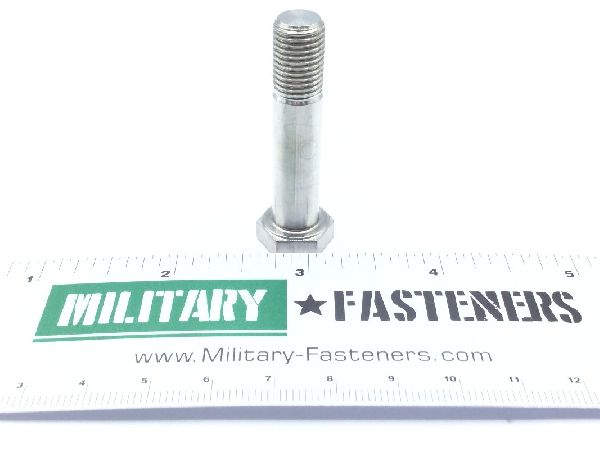

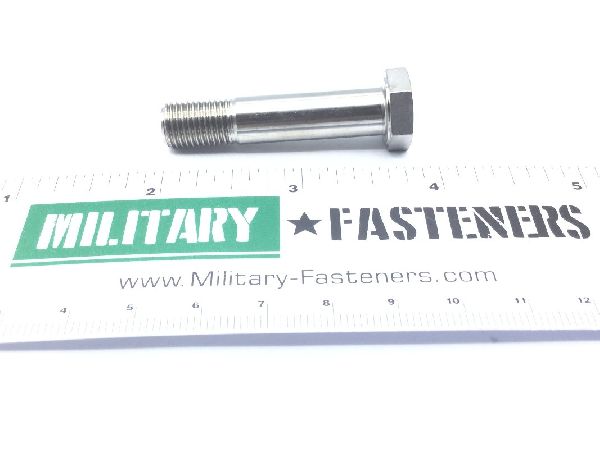

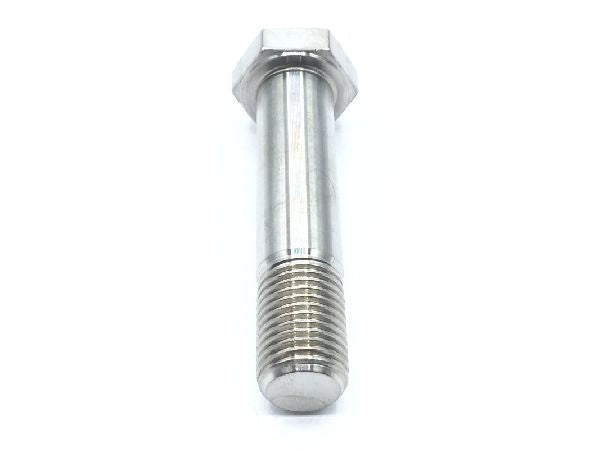

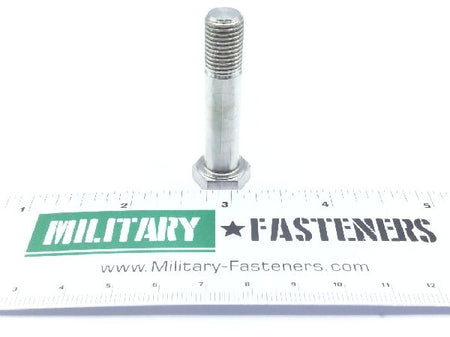

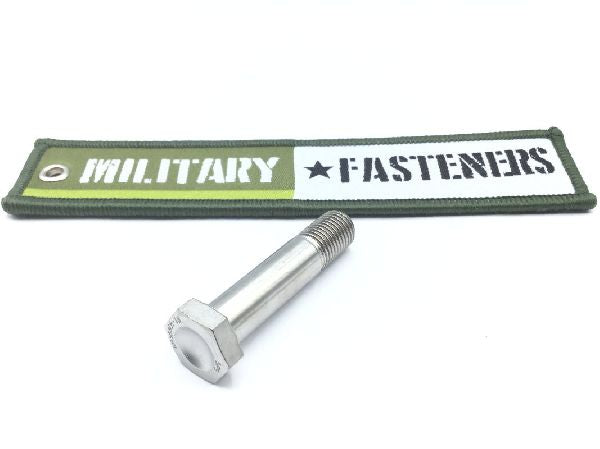

NAS6806U18 Shear Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Hexagon

Material

Titanium alloy uns r56400

Thread Class

End Application: F-22
Fastener Length: 1.703 inches
Grip Diameter: Between 0.3740 inches and 0.3745 inches
Grip Length: 1.125 inches
Head Height: Between 0.188 inches and 0.203 inches
Material Specification: Ams4967 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Part Name Assigned By Controlling Agency: Long thread 6al-4v titanium alloy close tolerance hex head bolt
Thread Diameter: 0.375 inches
Thread Direction: Right-hand
Thread Length: 0.578 inches
Thread Qty Per Inch (tpi): 24
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Width Between Flats: Between 0.554 inches and 0.564 inches
