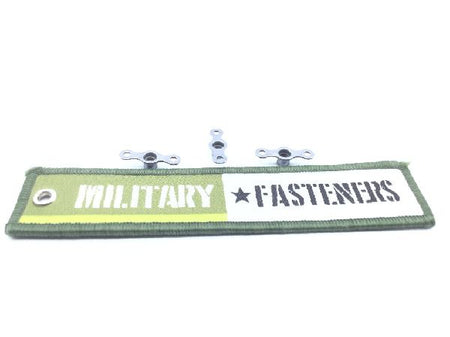

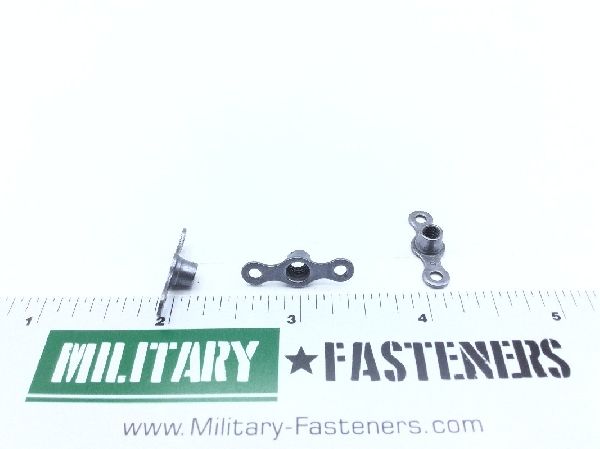

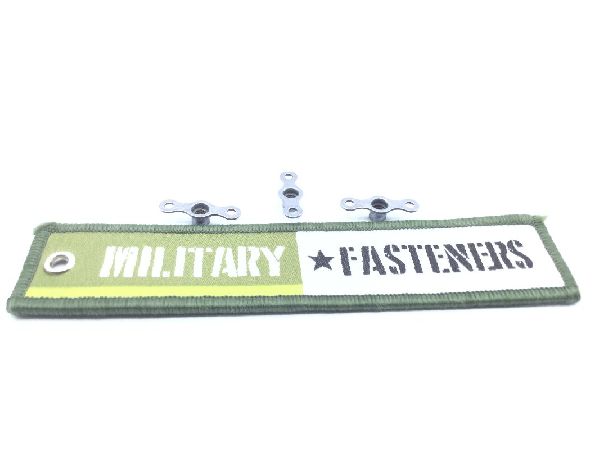

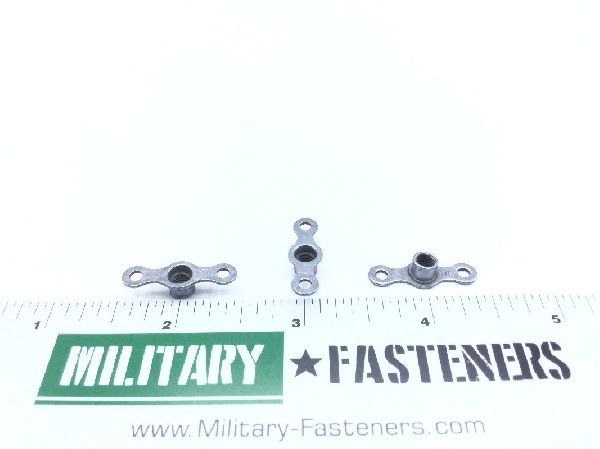

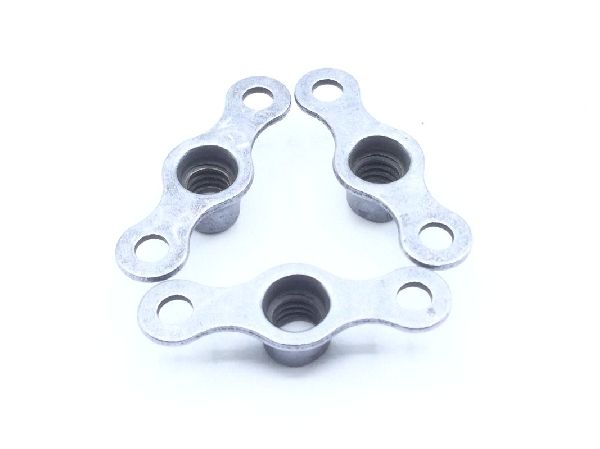

NAS680A08 Locknut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $1.73

Units per Pack 25

Price per Pack $43.25

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $43.25

Add item to quote

Material

Steel

Surface Treatment

Qq-p-416 federal specification single treatment response

Thread Class

Thread Series

Unjc

Thread Size

0.164 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.686 inches and 0.690 inches
Counterbore Diameter: 0.168 inches nut
Distance From Aperture Center To Mounting Hole Center: 0.344 inches
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Counterbore Depth: 0.062 inches nut
Nut Height: 0.250 inches
Nut Length: 0.948 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.047 inches
Plate Width: 0.297 inches
Specification Data: 80205-nas680 professional/industrial association standard
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
