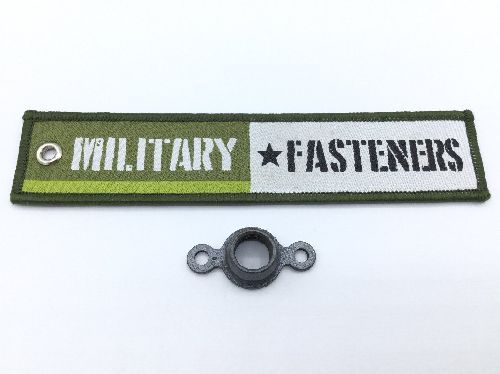

NAS680A7 Self-Locking Nutplate

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Material

Steel

Thread Class

Thread Series

Unf (fine thread)

Thread Size

0.438 inches

Center To Center Distance Between Mounting Holes Along Length: Between 1.123 inches and 1.127 inches
Distance From Aperture Center To Mounting Hole Center: 0.726 inches
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.161 inches and 0.166 inches
Nut Height: 0.390 inches
Nut Length: 1.477 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.085 inches
Plate Width: 0.726 inches
Tempurature Rating: 550.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 20
