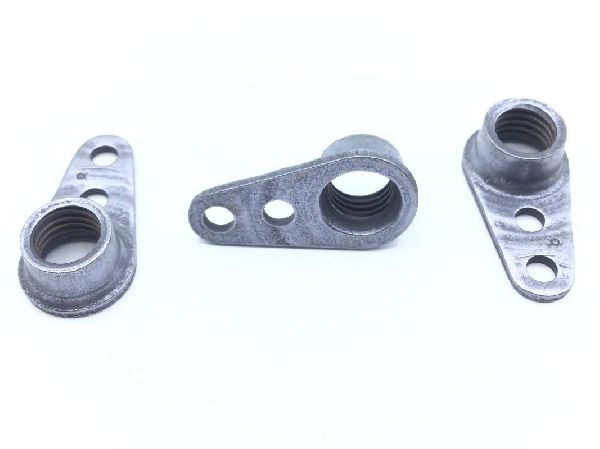

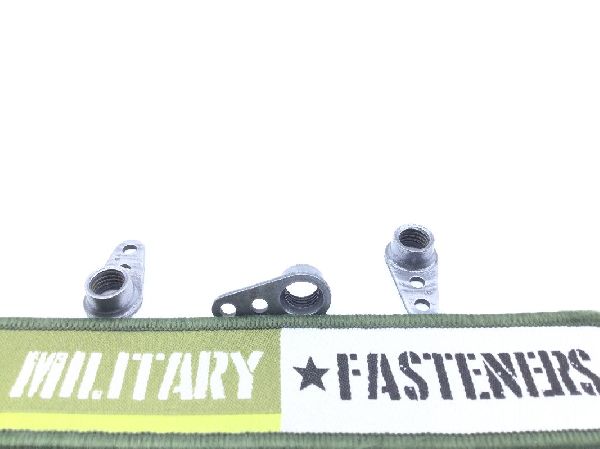

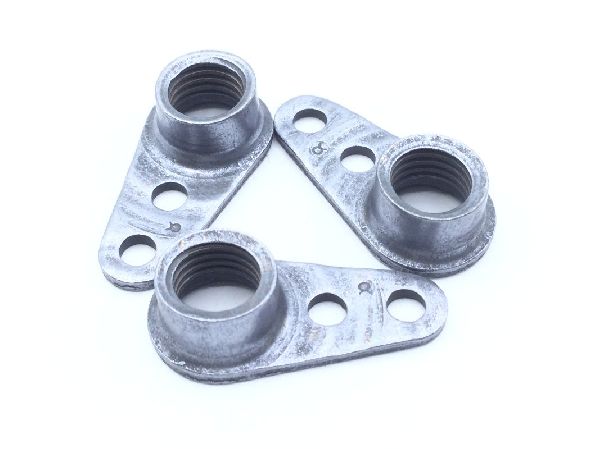

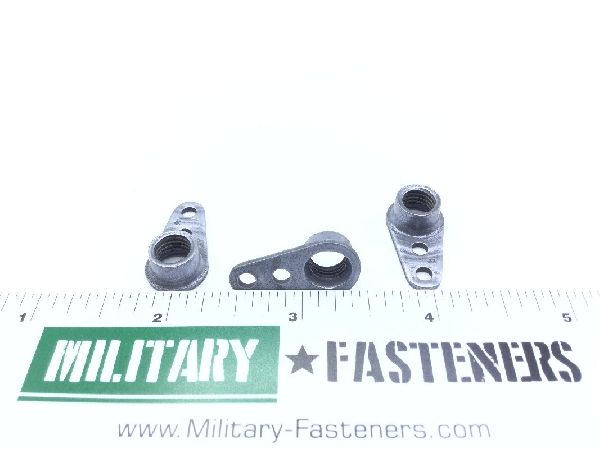

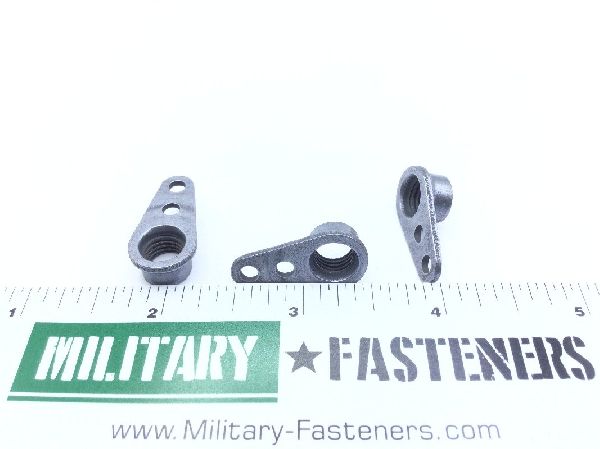

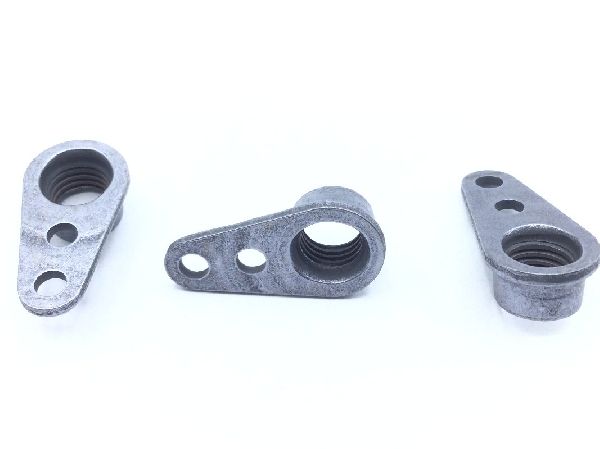

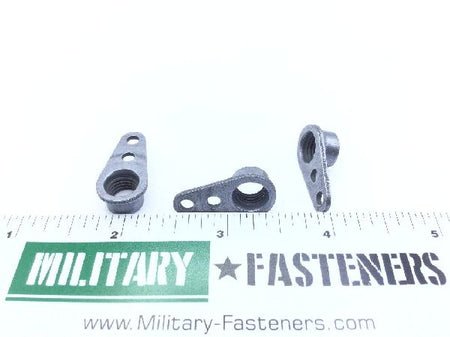

NAS696A5 Locknut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $4.71

Units per Pack 10

Price per Pack $47.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $47.10

Add item to quote

Material

Steel

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Thread Class

Thread Series

Unjf (fine thread with external controlled root radius)

Thread Size

0.312 inches

Center To Center Distance Between Mounting Holes Along Length: Between 0.267 inches and 0.271 inches
Distance From Aperture Center To Mounting Hole Center: Between 0.354 inches and 0.364 inches
Hardness Rating: 49.0 rockwell c
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.130 inches and 0.135 inches
Nut Height: 0.328 inches
Nut Length: 1.026 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.065 inches
Plate Width: Between 0.475 inches and 0.505 inches
Tempurature Rating: 450.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 24
Lubrication: Dry film lubricant
