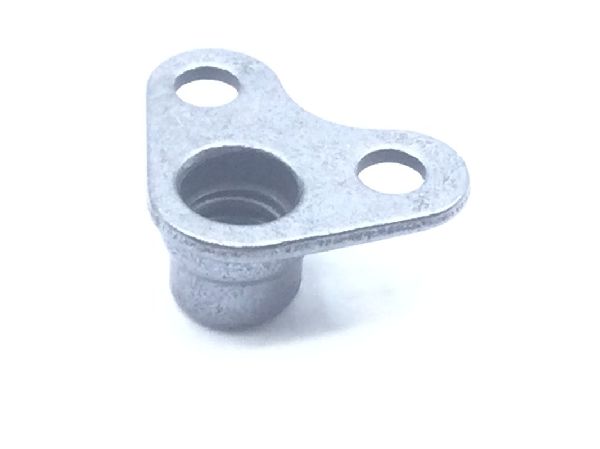

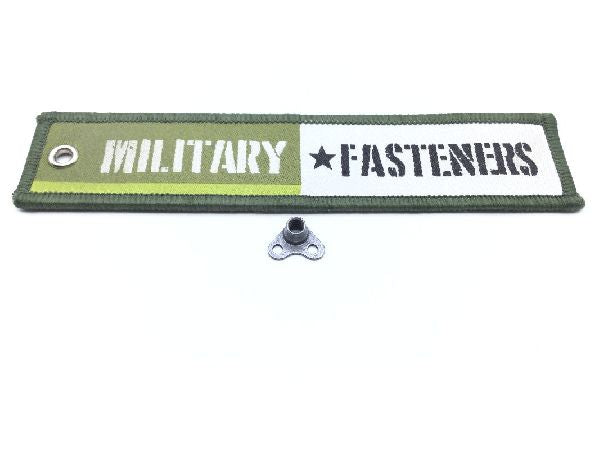

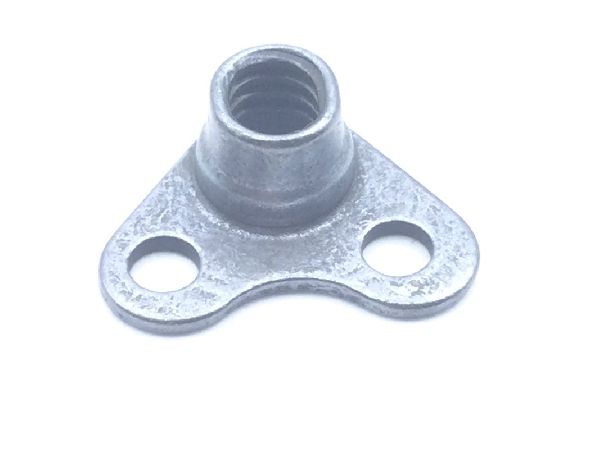

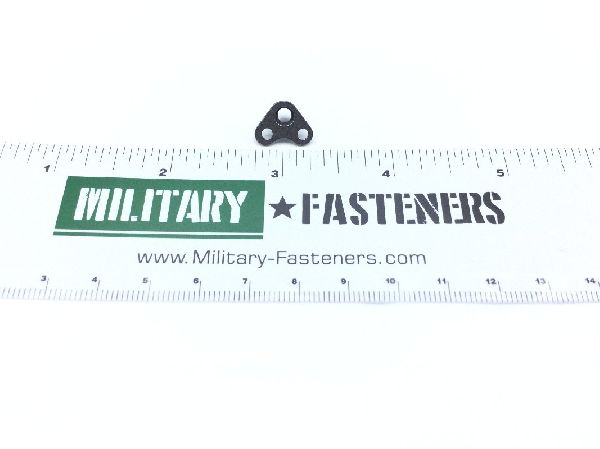

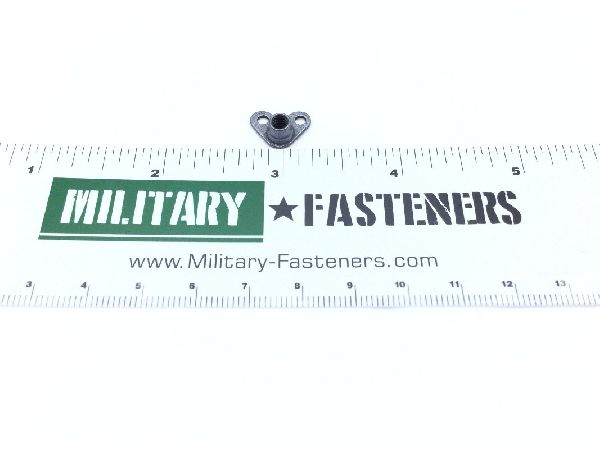

NAS698A08 Locknut

Product Series: NAS
ECCN: EAR99
Schedule: 7318.16.0085

Price per Unit $0.77

Units per Pack 50

Price per Pack $38.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $38.50

Add item to quote

Material

Steel

Thread Class

Thread Series

Unc (coarse thread)

Thread Size

0.164 inches

Distance From Aperture Center To Mounting Hole Center: Between 0.228 inches and 0.239 inches
Locking Feature: Prevailing torque all metal design
Mounting Hole Arrangement Style: 2 holes
Mounting Hole Diameter: Between 0.098 inches and 0.103 inches
Nut Height: 0.172 inches
Nut Length: 0.453 inches
Nut Mounting Provision: Straight holes
Nut Style: Plate
Plate Thickness: 0.032 inches
Tempurature Rating: 550.0 degrees fahrenheit
Thread Direction: Right-hand
Thread Qty Per Inch (tpi): 32
Lubrication: Dry film lubricant
