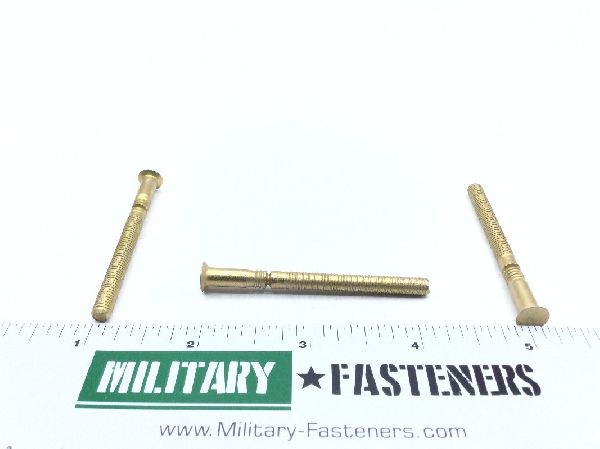

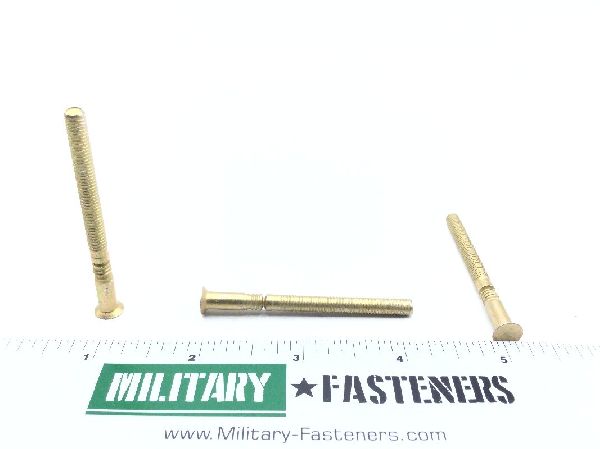

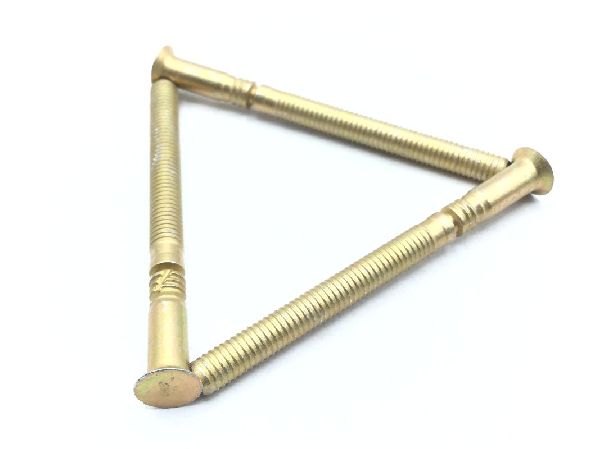

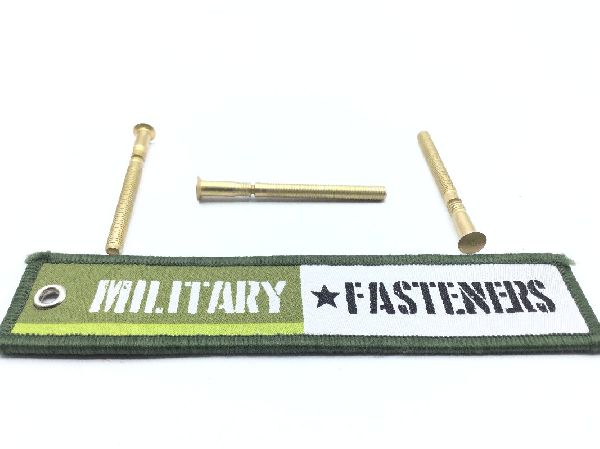

NAS7026H07 Pin-Rivet

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.3000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flush countersunk

Material

Steel comp 8740

Surface Treatment

Class 2 federal specification single treatment response type 2 qq-p-416

Countersink Angle: Between 99 degrees and 101 degrees
Features: Casehardened and sealant vent groove
Features Provided: Casehardened and sealant vent groove
Grip Length: Between 0.376 inches and 0.438 inches
Hardness Rating: 78.0 rockwell superficial 15-n and 82.0 rockwell superficial 15-n
Head Major Diameter: 0.332 inches
Material Specification: Ams 6322 assn standard single material response
Min. Tensile Strength (psi): 180000 pounds per square inch
Shank Diameter: Between 0.188 inches and 0.1895 inches
Shank Style: Multiple grooved pin-rivet
Shear Strength: 108000 single pounds per square inch
Specification Data: 80205-nas7026 professional/industrial association standard
Lubrication: Cetyl alcohol
