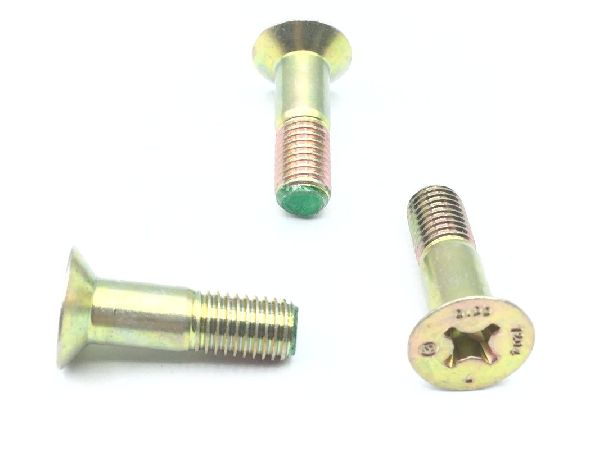

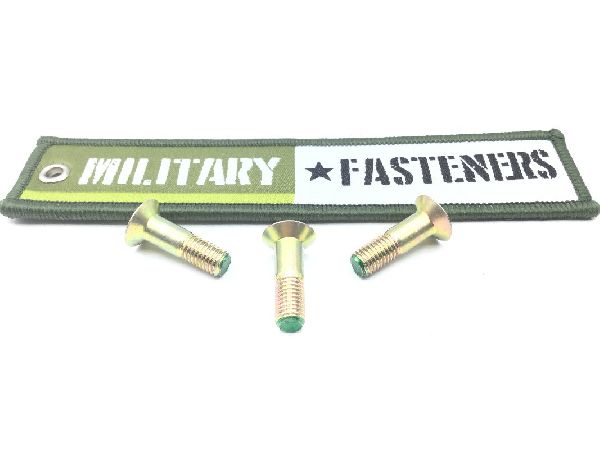

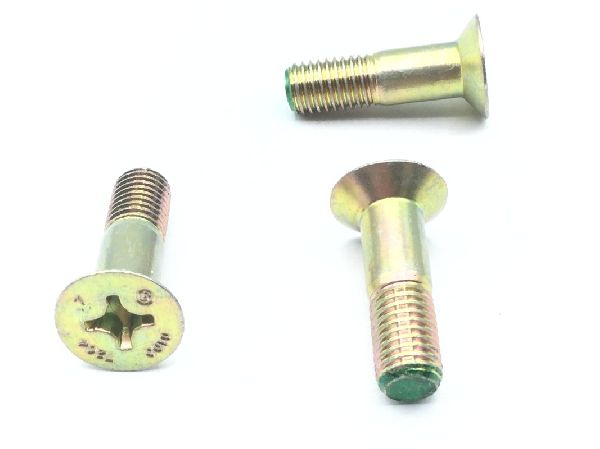

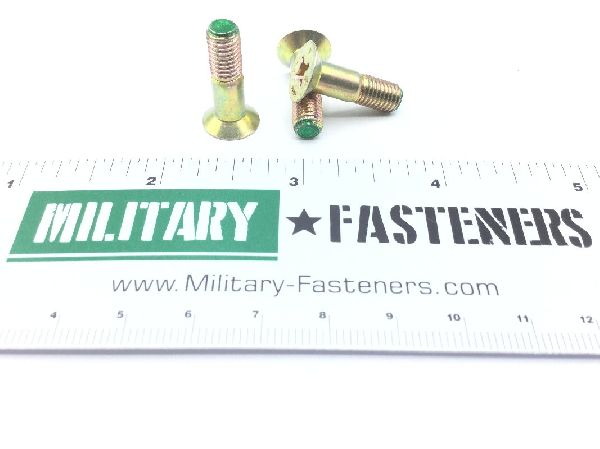

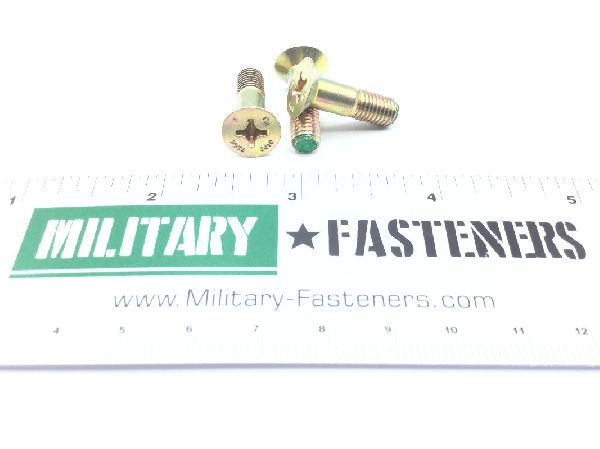

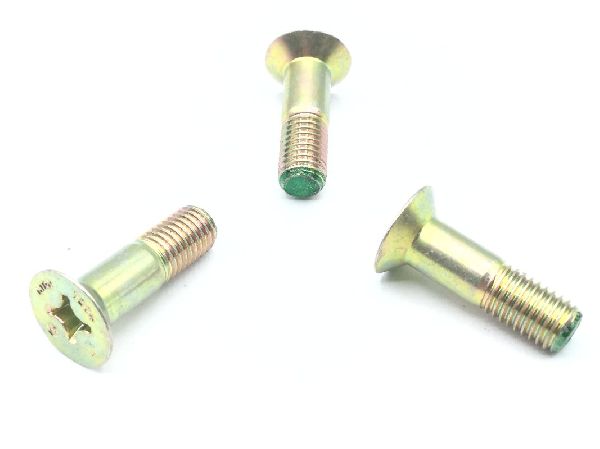

NAS7204-7 Machine Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.8085

Price per Unit $7.62

Units per Pack 5

Price per Pack $38.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $38.10

Add item to quote

Head Style

Flat countersunk

Material

Iron alloy 660

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.848 inches and 0.878 inches
Grip Length: Between 0.990 inches and 1.010 inches
Material Specification: Ams5731 assn standard single material response
Specification Data: 80205-nas7204-7 professional/industrial association standard
Thread Diameter: 0.250 inches
Thread Direction: Right-hand
Thread Length: 0.425 inches
Thread Qty Per Inch (tpi): 28
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: 0.508 inches
