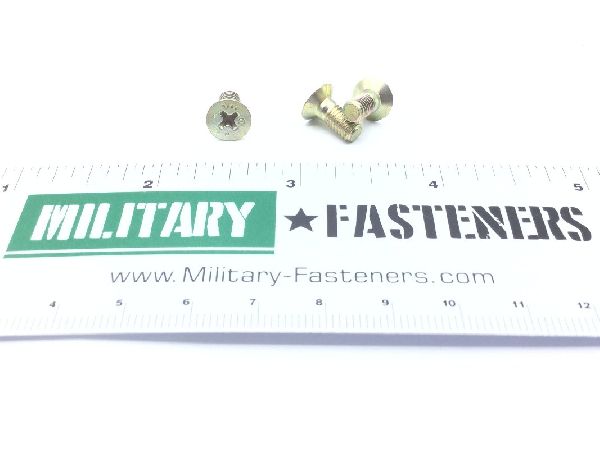

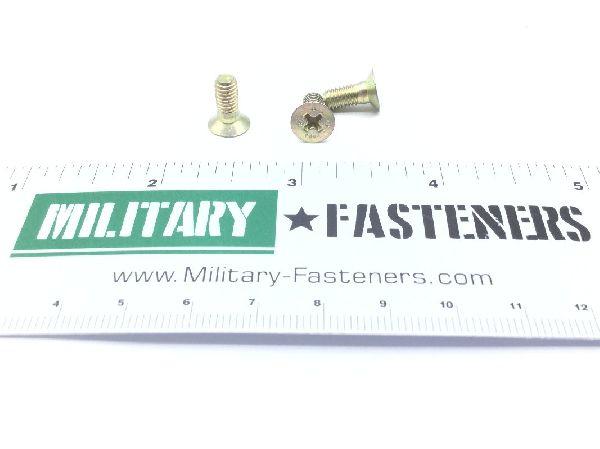

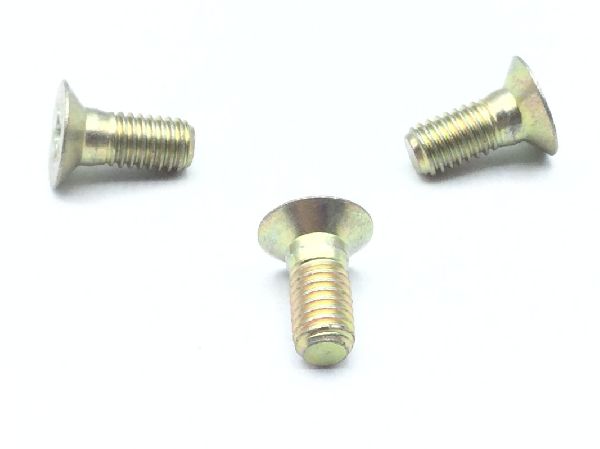

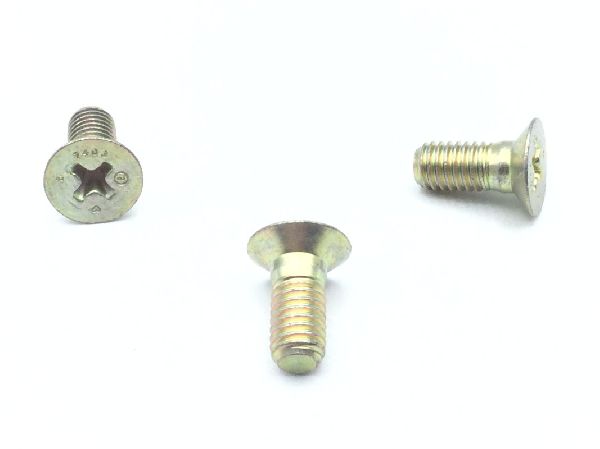

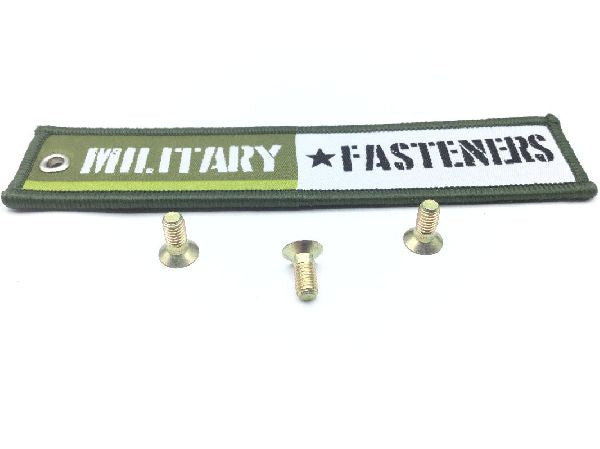

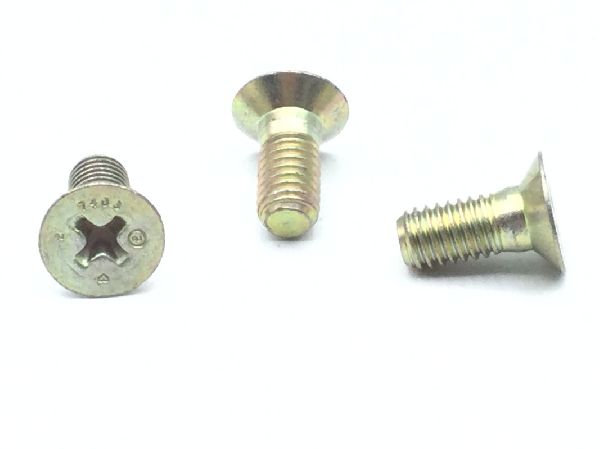

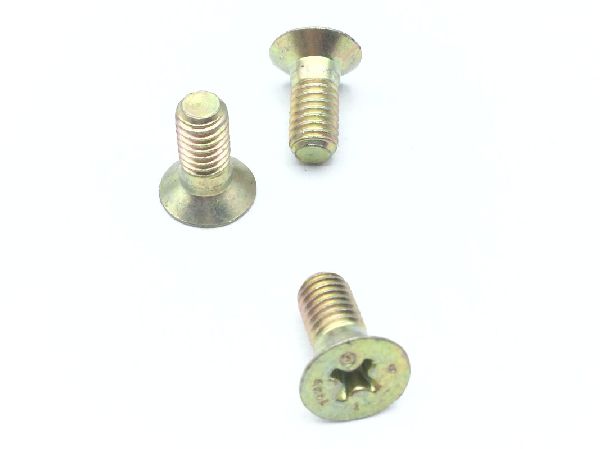

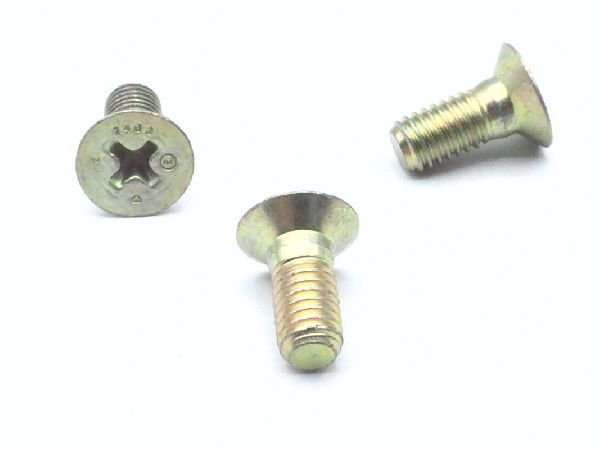

NAS7403-2 Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Aluminum alloy

Surface Treatment

class 2 federal specification single treatment response type ii qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.433 inches and 0.463 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.084 inches and 0.159 inches
Point Diameter: Between 0.181 inches and 0.184 inches
Point Style: Flat
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.284 inches and 0.362 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: 0.381 inches
