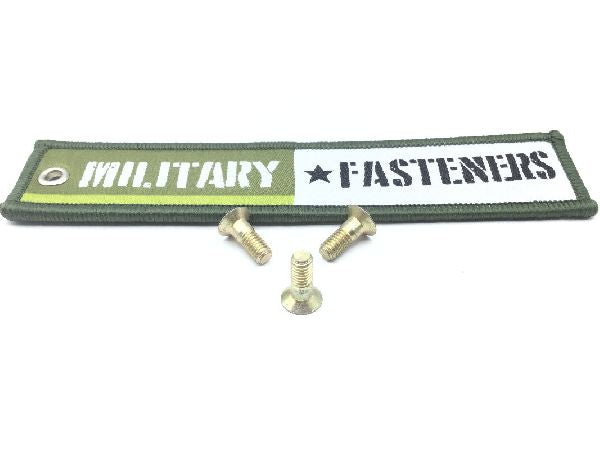

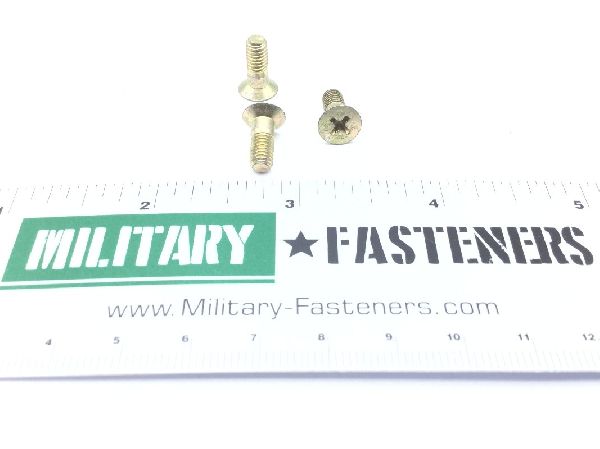

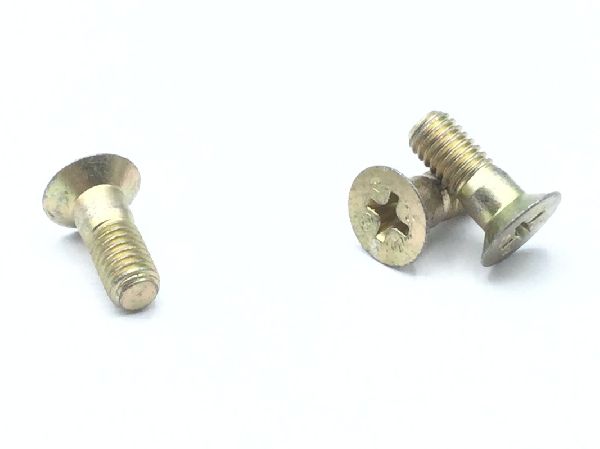

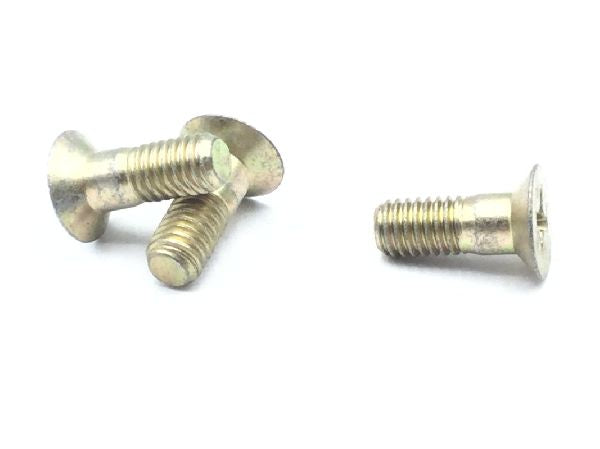

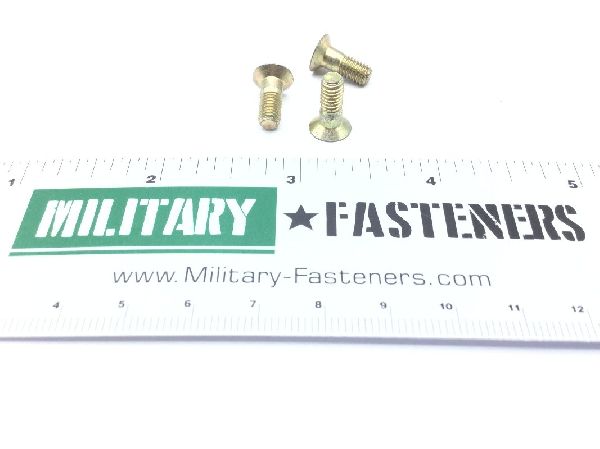

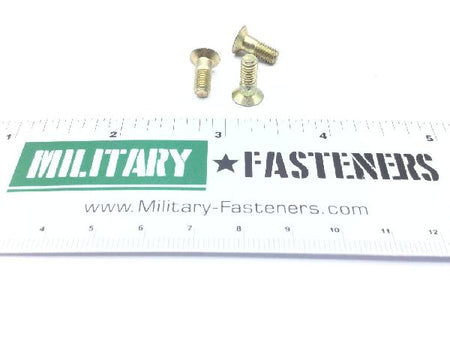

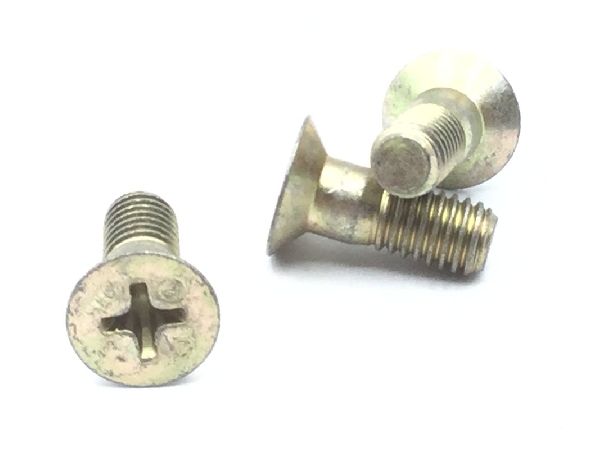

NAS7403-3 Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote

Head Style

Flat countersunk

Material

Steel comp 4340 or steel comp 8740

Surface Treatment

Ty2cl2 federal specification single treatment response qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.496 inches and 0.526 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.178 inches and 0.198 inches
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams6322 assn standard 3rd material response
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.318 inches and 0.328 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.338 inches and 0.381 inches
