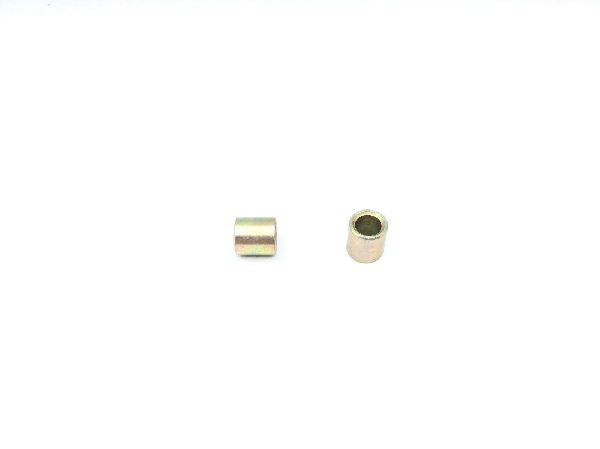

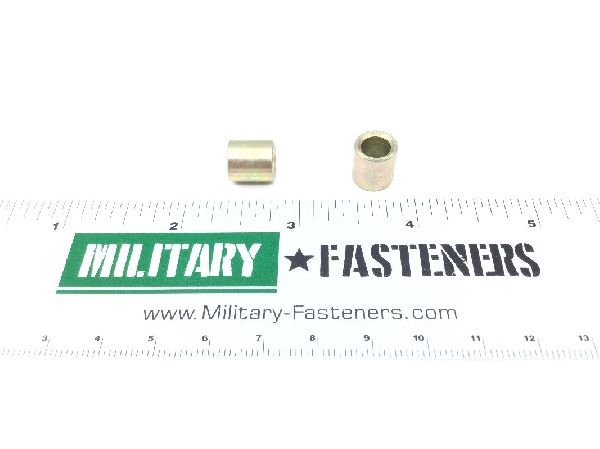

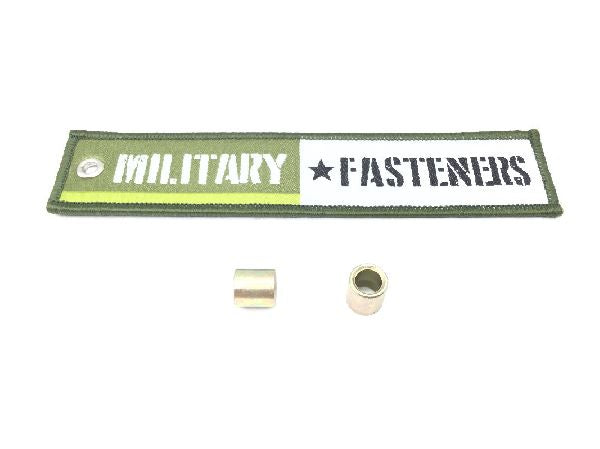

NAS75-4-013 Sleeve Bushing

NSN: 3120-00-287-6994
Product Series: NAS
ECCN: EAR99
Schedule: 8483.30.8090

Price per Unit $7.62

Units per Pack 5

Price per Pack $38.10

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 5

Total Unit Quantity:

Total Packs 1

Total Price $38.10

Add item to quote

Material

Steel comp 4130 or steel comp 8630

Overall Length

Between 0.4012 inches and 0.4062 inches

Surface Treatment

Cl 3 federal specification single treatment response type 2 qq-p-416

Body Inside Diameter: Between 0.2500 inches and 0.2515 inches
Body Outside Diameter: Between 0.3756 inches and 0.3761 inches
Corner Shape: Chamfered inside left corner
Material Specification: Mil-s-6758 military specification 1st material response or mil-s-6050 military specification 2nd material response
Special Features: Id and od to be parallel and concentric within 0.0030 tir
Specification Data: 80205-nas75 professional/industrial association standard
Style Designator: no outside flanges plain solid
Surface Finish: 125.0 microinches intermediate layer
