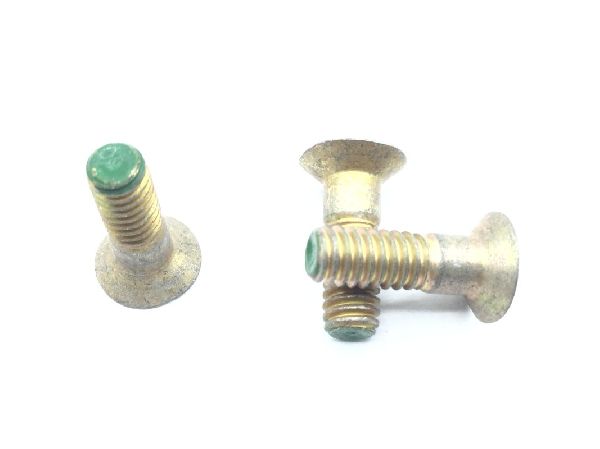

NAS7502-3 Close Tolerance Screw (2)

NAS7502-3 Close Tolerance Screw (3)

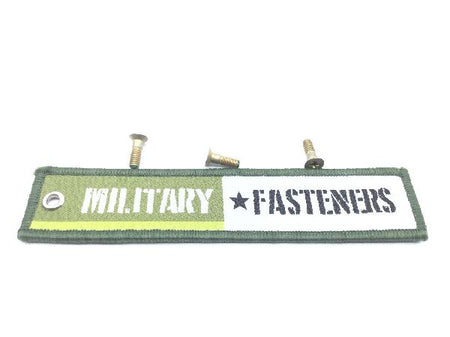

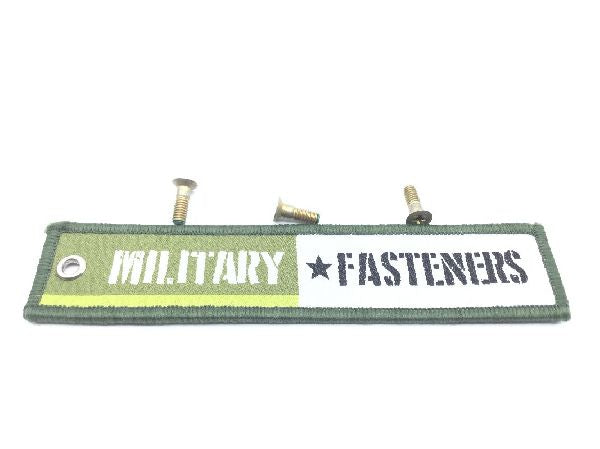

NAS7502-3 Close Tolerance Screw (4)

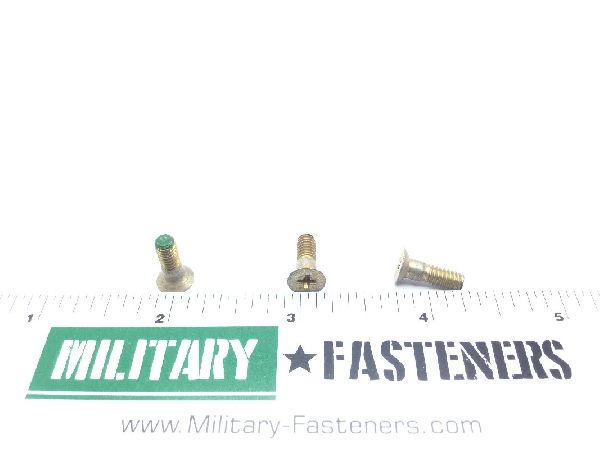

NAS7502-3 Close Tolerance Screw (5)

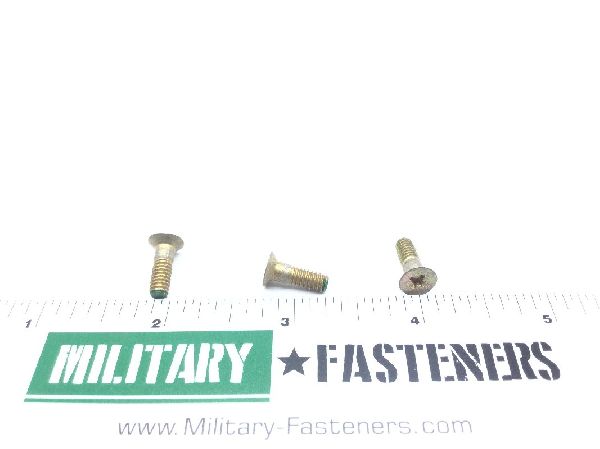

NAS7502-3 Close Tolerance Screw (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS7502-3 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $0.97

Units per Pack 50

Price per Pack $48.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $48.50

Add item to quote

Head Style

Flat countersunk

Material

Stainless Steel

Thread Class

3a

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.424 inches and 0.454 inches
Grip Diameter: Between 0.1625 inches and 0.1635 inches
Grip Length: Between 0.178 inches and 0.198 inches
Internal Drive Style: Cross recess type iii
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unc (coarse thread)
Head Diameter: 0.331 inches
