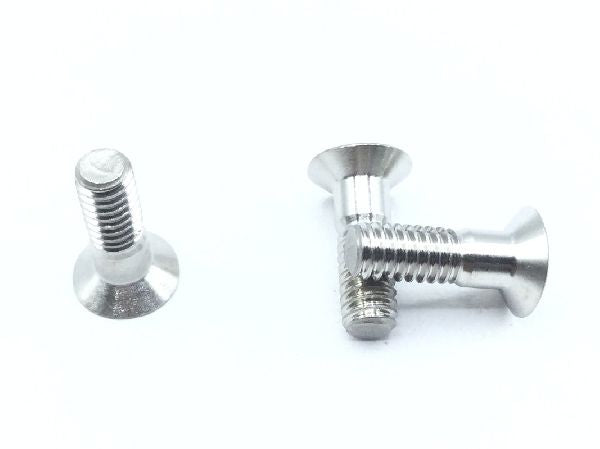

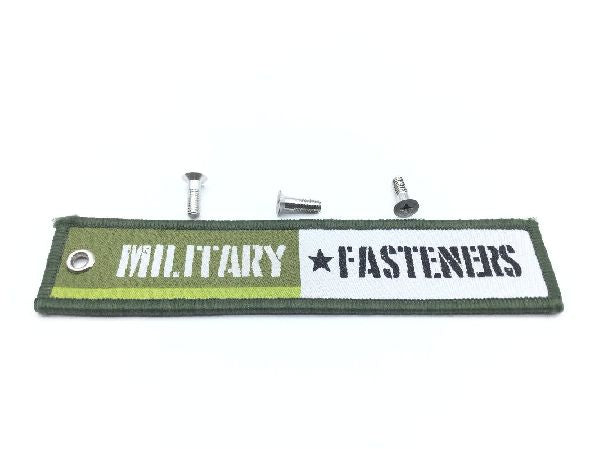

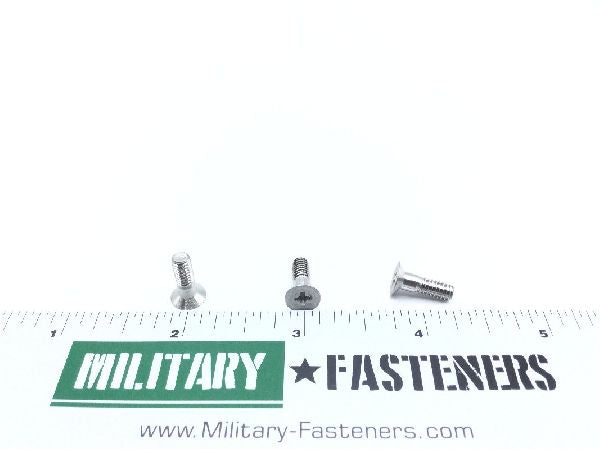

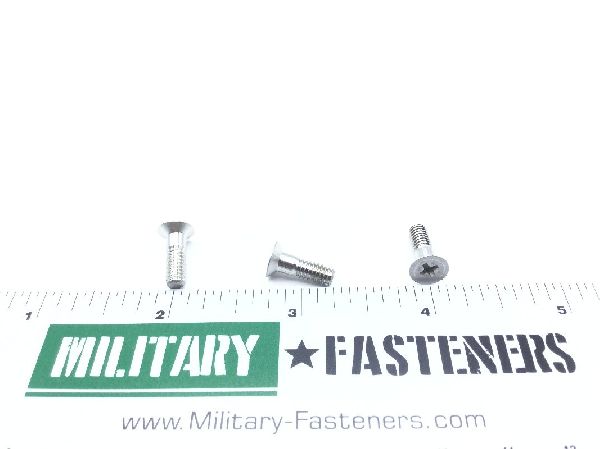

NAS7502U3 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $1.39

Units per Pack 25

Price per Pack $34.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $34.75

Add item to quote

Head Style

Flat countersunk

Thread Class

3a

Countersink Angle: Between 99.0 degrees and 101.0 degrees
End Application: 1.05501E+12
Fastener Length: Between 0.424 inches and 0.454 inches
Head Height: 0.072 inches
Internal Drive Style: Cross recess type iii
Screw Material: Stainless Steel
Thread Diameter: 0.1640 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: 0.331 inches
