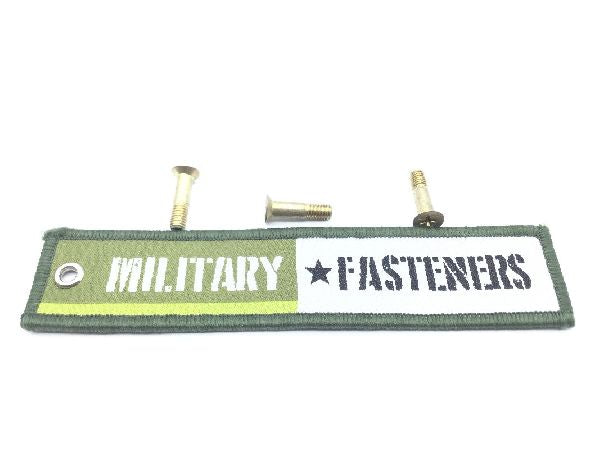

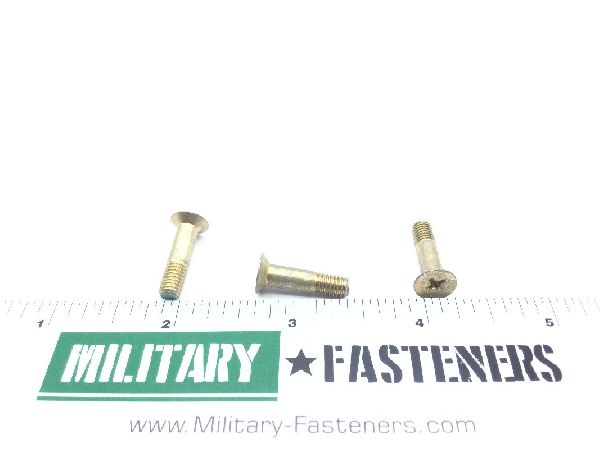

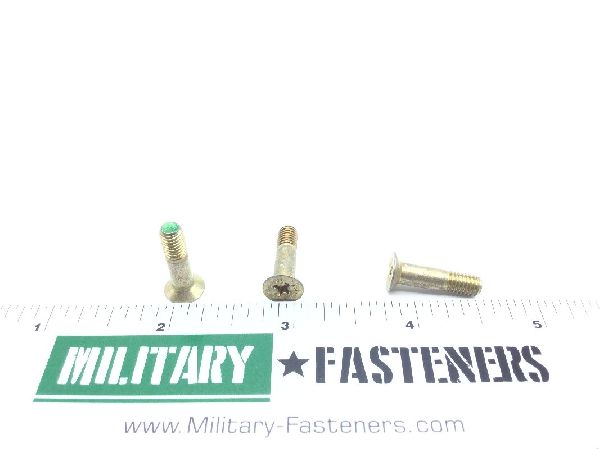

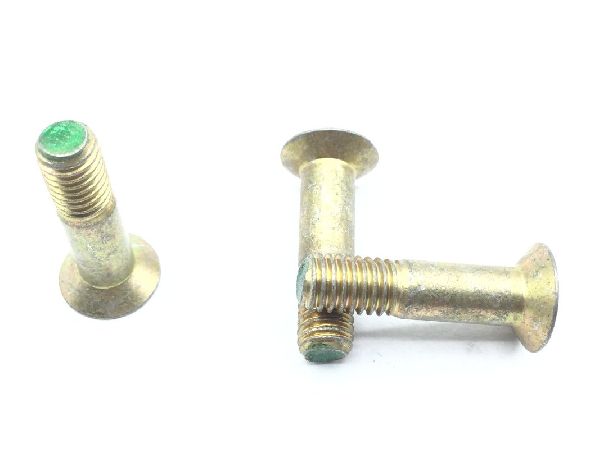

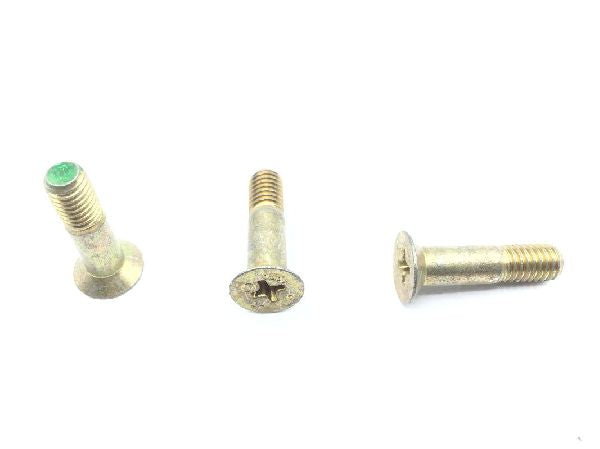

NAS7503-7 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $2.08

Units per Pack 25

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Head Style

Flat countersunk

Material

Iron alloy 660

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.746 inches and 0.776 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: Between 0.428 inches and 0.448 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas7503 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.338 inches and 0.381 inches
