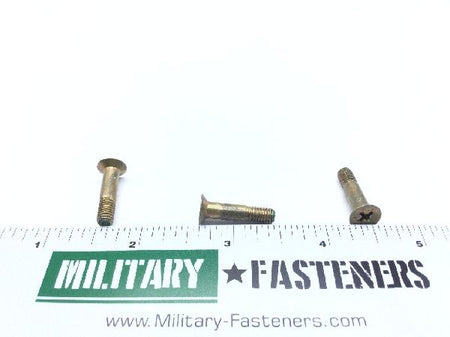

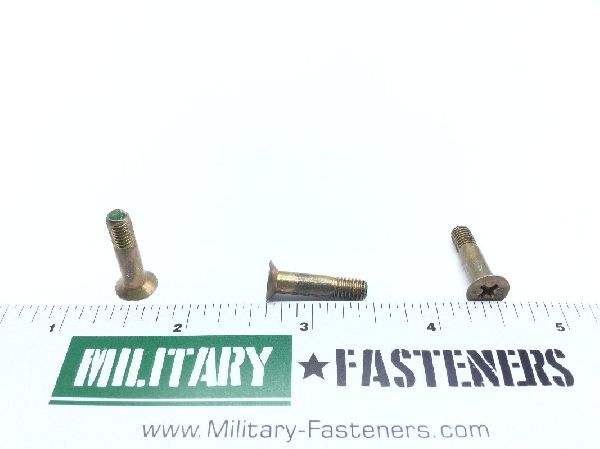

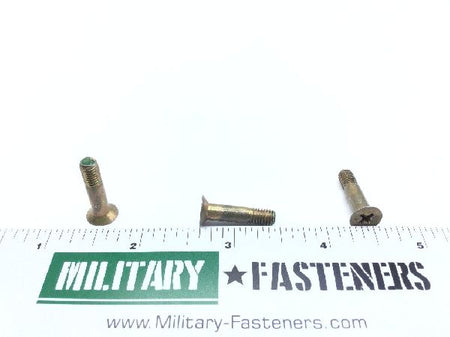

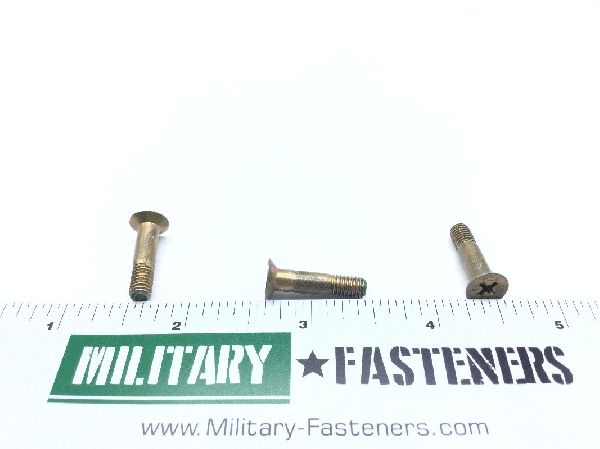

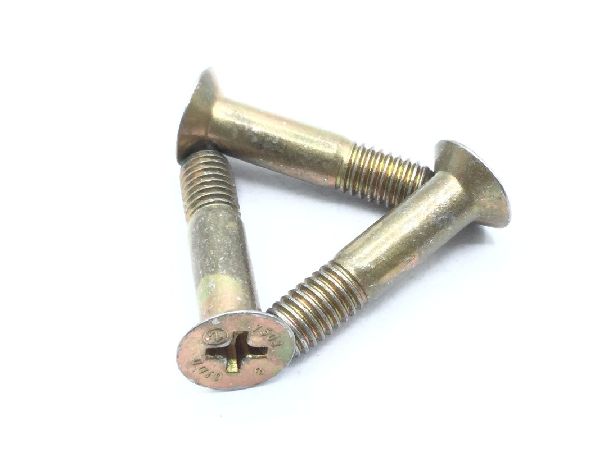

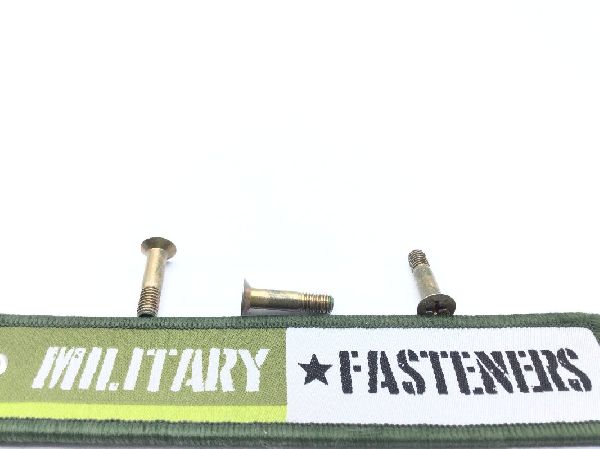

NAS7503-8 Close Tolerance Bolt

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2000

Price per Unit $5.54

Units per Pack 10

Price per Pack $55.40

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $55.40

Add item to quote

Head Style

Flat countersunk

Material

Iron alloy 660

Surface Treatment

class 2 federal specification single treatment response tyii qq-p-416

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: 0.823 inches
Grip Diameter: Between 0.188 inches and 0.189 inches
Grip Length: 0.500 inches
Material Specification: Ams 5731 assn standard single material response or ams 5732 assn standard single material response or ams 5737 assn standard single material response or ams 5853 assn standard single material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas7503 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.338 inches and 0.381 inches
