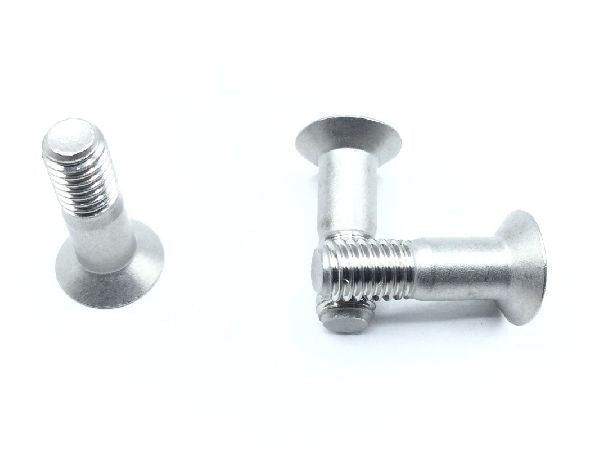

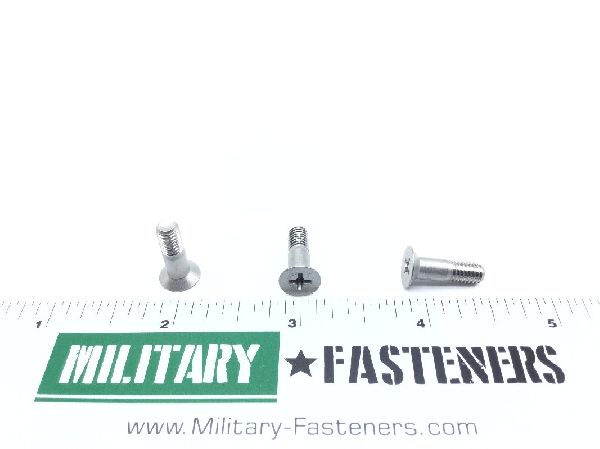

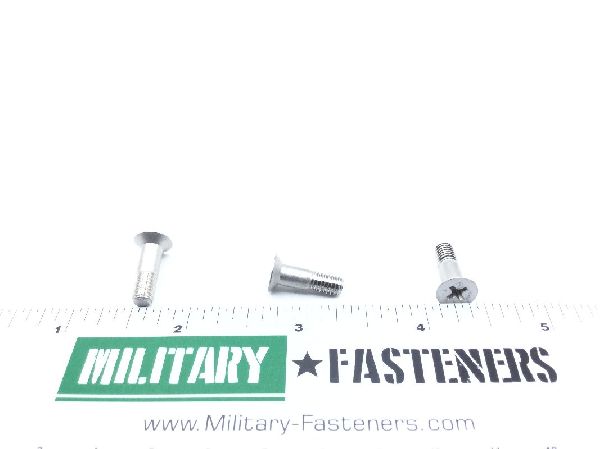

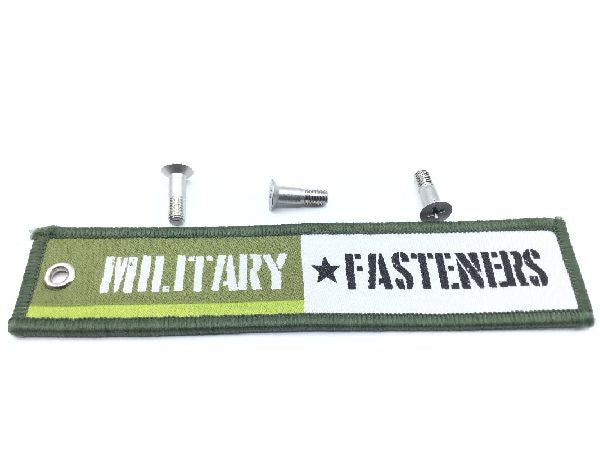

NAS7503U5 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.9000

Price per Unit $3.50

Units per Pack 50

Price per Pack $175.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $175.00

Add item to quote

Head Style

Flat countersunk

Material

Iron alloy 660

Surface Treatment

Qq-p-35 federal specification single treatment response

Thread Class

Countersink Angle: Between 99.0 degrees and 101.0 degrees
Fastener Length: Between 0.620 inches and 0.650 inches
Grip Diameter: Between 0.1890 inches and 0.1895 inches
Grip Length: Between 0.302 inches and 0.322 inches
Internal Drive Style: Cross recess type iii
Material Specification: Ams 5731 assn standard single material response
Specification Data: 80205-nas7503 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unf (fine thread)
Head Diameter: 0.381 inches
