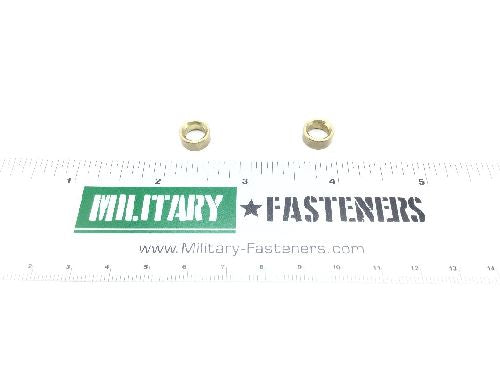

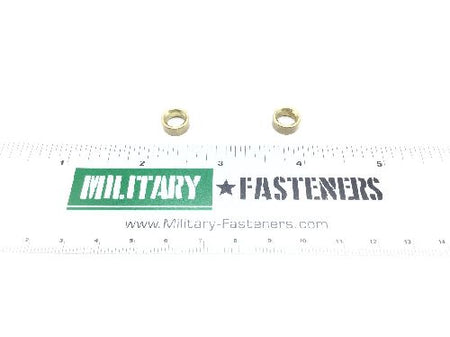

NAS76A4-005 Sleeve Bushing

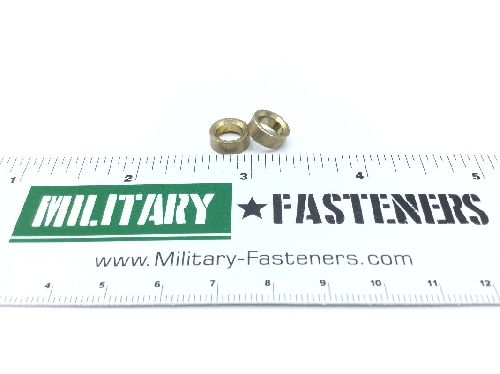

NAS76A4-005 Sleeve Bushing (2)

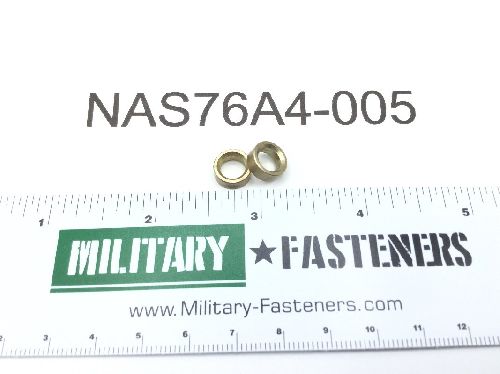

NAS76A4-005 Sleeve Bushing (3)

NAS76A4-005 Sleeve Bushing (4)

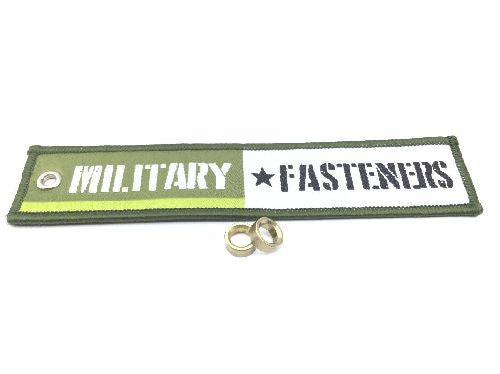

NAS76A4-005 Sleeve Bushing (5)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS76A4-005 Sleeve Bushing

Product Series: NAS
ECCN: EAR99
Schedule: 8483.30.8090

Price per Unit $5.20

Units per Pack 10

Price per Pack $52.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $52.00

Add item to quote

Material

Copper alloy 642

Overall Length

Between 0.1512 inches and 0.1562 inches

Body Inside Diameter: Between 0.2500 inches and 0.2515 inches
Body Outside Diameter: Between 0.3756 inches and 0.3761 inches
Corner Shape: Square outside right corner
Material Specification: Qq-c-465 federal specification single material response
Specification Data: 80205-nas76 professional/industrial association standard
Style Designator: no outside flanges plain solid
Surface Finish: 125.0 microinches intermediate layer
