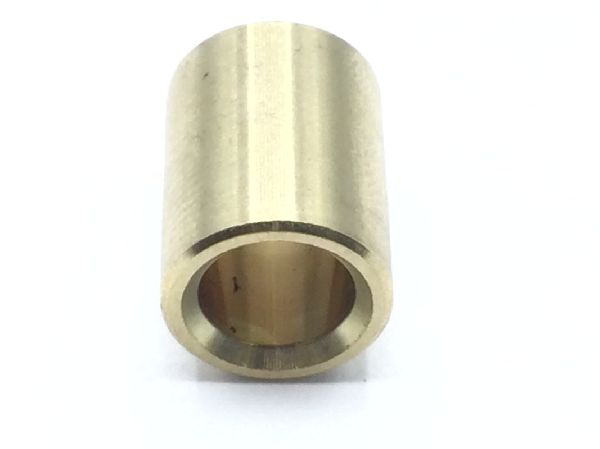

NAS76A4-016 Sleeve Bushing

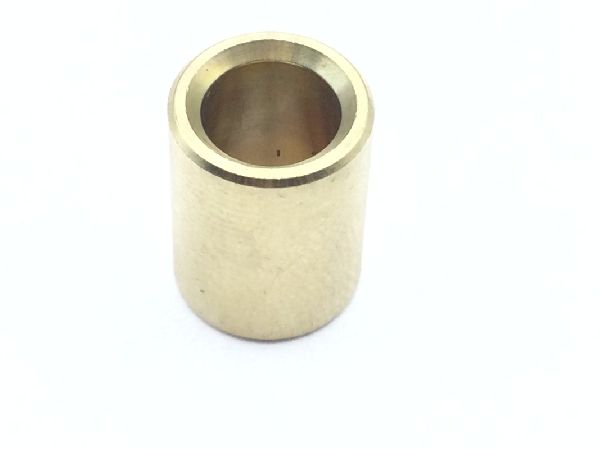

NAS76A4-016 Sleeve Bushing (2)

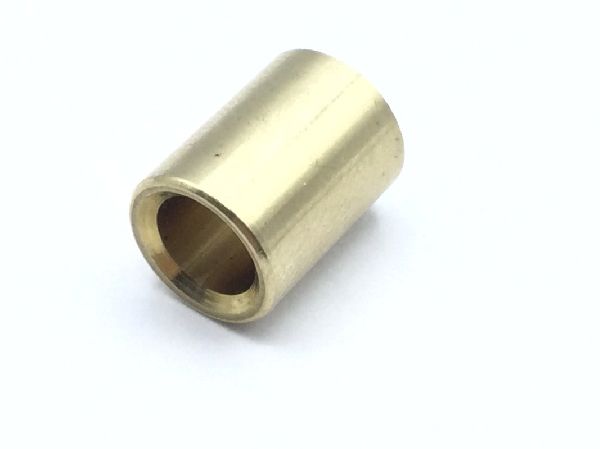

NAS76A4-016 Sleeve Bushing (3)

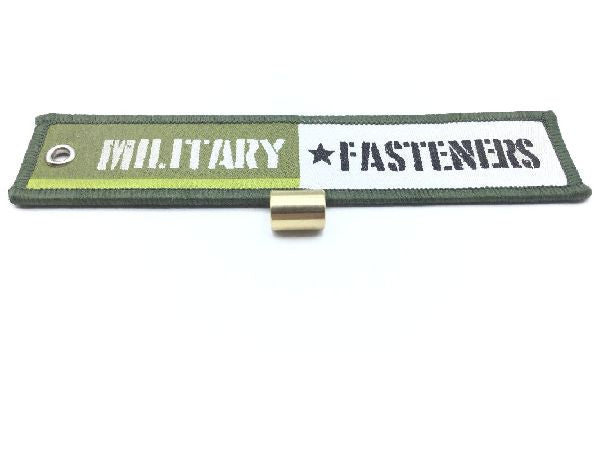

NAS76A4-016 Sleeve Bushing (4)

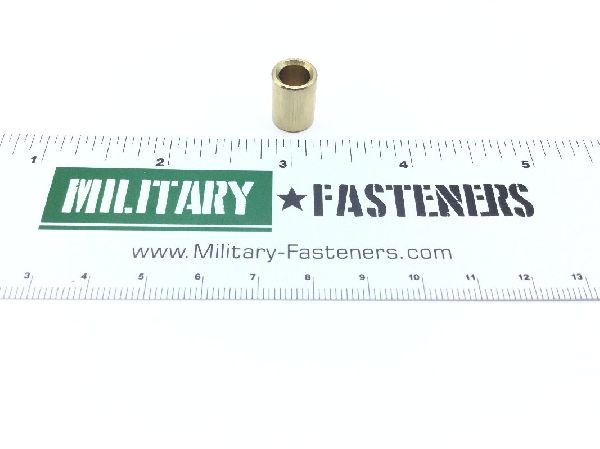

NAS76A4-016 Sleeve Bushing (5)

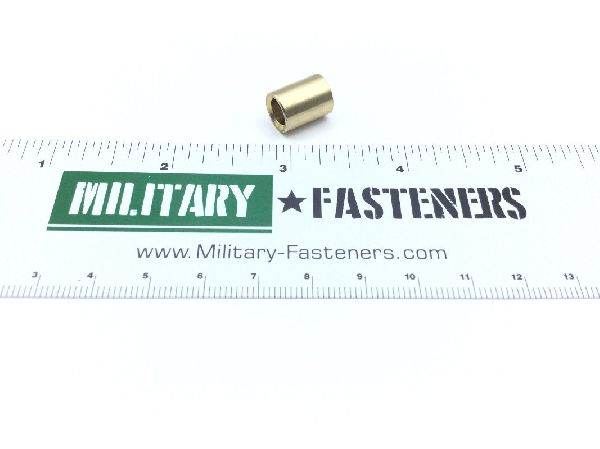

NAS76A4-016 Sleeve Bushing (6)
NAS76A4-016 Sleeve Bushing
NAS76A4-016 Sleeve Bushing (2)
NAS76A4-016 Sleeve Bushing (3)
NAS76A4-016 Sleeve Bushing (4)
NAS76A4-016 Sleeve Bushing (5)
NAS76A4-016 Sleeve Bushing (6)

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

NAS76A4-016 Sleeve Bushing

Product Series
NAS
ECCN
EAR99
Schedule
8483.30.8090
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Add to Quote

We are currently out of stock of this item. Click the button below to add this item to the quote and receive up to date pricing and availability by email.

Add to Quote
Material
Copper alloy 642
Overall Length
Between 0.4950 inches and 0.5000 inches
Body Inside Diameter
Between 0.2500 inches and 0.2515 inches
Body Outside Diameter
Between 0.3756 inches and 0.3761 inches
Corner Shape
Chamfered inside left corner
Material Specification
Qq-c-465 federal specification single material response
Specification Data
80205-nas76 professional/industrial association standard
Style Designator
no outside flanges plain solid
Surface Finish
125.0 microinches intermediate layer
