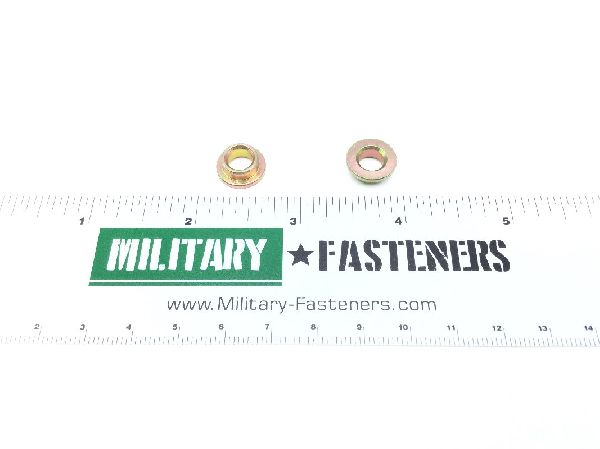

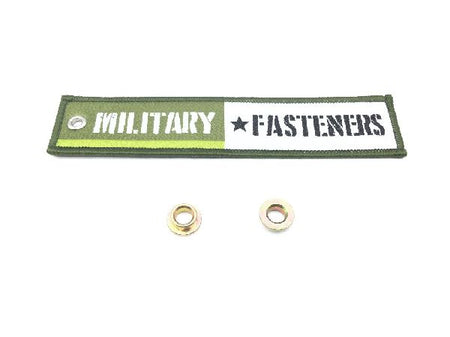

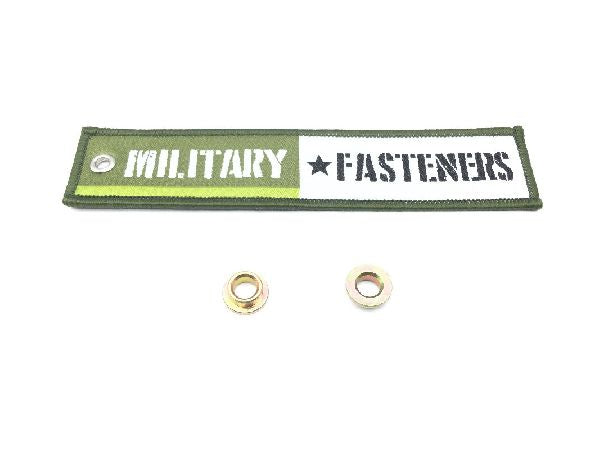

NAS77-4-012 Sleeve Bushing

Product Series
NAS
ECCN
EAR99
Schedule
8483.30.8090
Price per Unit $5.47
Units per Pack 10
Price per Pack $54.70
Manufacturer certifications are shipped with your order FREE of charge
Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:
Total Packs 1
Total Price $54.70
Add item to quote
Material
Steel comp 4130 or steel comp 8630
Overall Length
Between 0.172 inches and 0.187 inches
Surface Treatment
Cl 3 federal specification single treatment response type 2 qq-p-416
Body Inside Diameter
Between 0.25 inches and 0.2515 inches
Body Outside Diameter
Between 0.3756 inches and 0.3761 inches
Corner Shape
Chamfered inside left corner
Flange Outside Diameter
Between 0.49 inches and 0.51 inches
Flange Width
Between 0.057 inches and 0.062 inches
Material Specification
Mil-s-6758 military specification 1st material response or mil-s-6050 military specification 2nd material response
Special Features
Id and od to be parallel and concentric within 0.0030 tir
Specification Data
80205-nas77 professional/industrial association standard
Style Designator
external flange one end solid
Surface Finish
100 microinches intermediate layer
