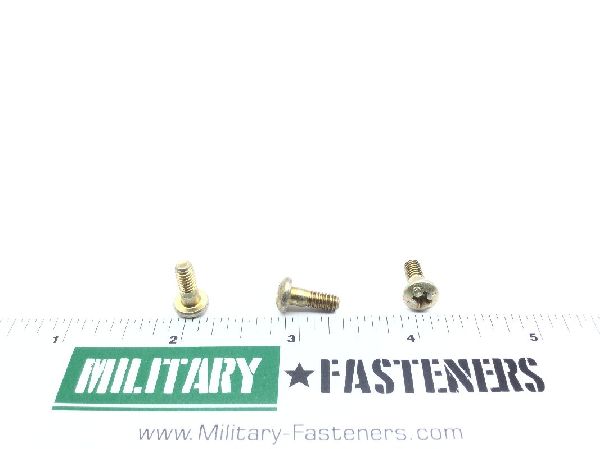

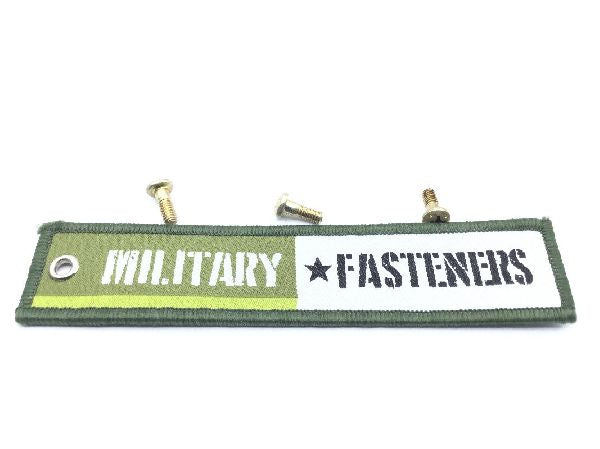

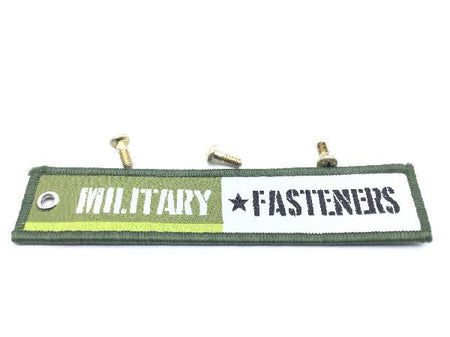

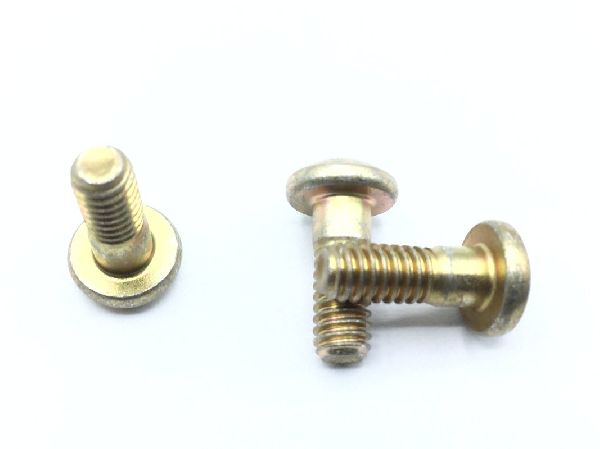

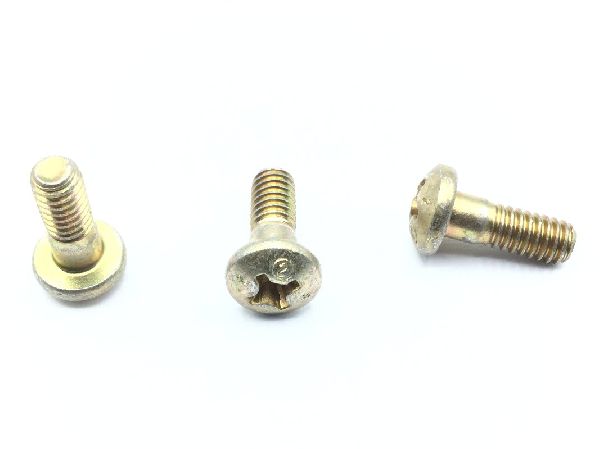

NAS7702-2 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $0.97

Units per Pack 100

Price per Pack $97.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $97.00

Add item to quote

Head Style

Pan

Material

Steel comp e4340 or steel comp 8740

Surface Treatment

Qq-p-416 type 2 cl 2 federal specification single treatment response

Thread Class

Fastener Length: Between 0.433 inches and 0.463 inches
Grip Diameter: Between 0.1625 inches and 0.1635 inches
Grip Length: Between 0.115 inches and 0.135 inches
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-5000 military specification 1st material response or mil-s-6049 military specification 2nd material response or ams 6322 assn standard 2nd material response
Min. Tensile Strength (psi): 160000 pounds per square inch
Specification Data: 80205-nas7702 professional/industrial association standard
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.306 inches and 0.322 inches
