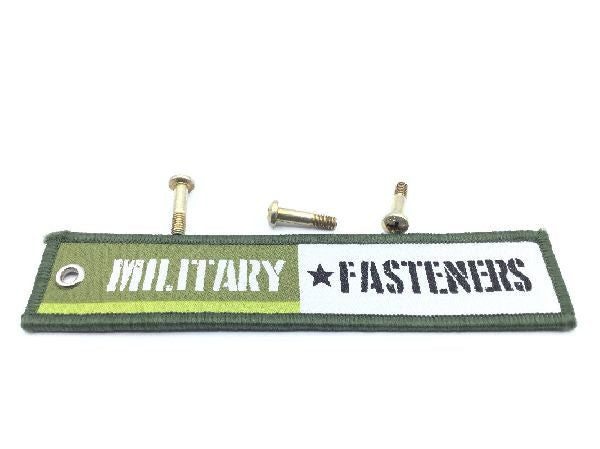

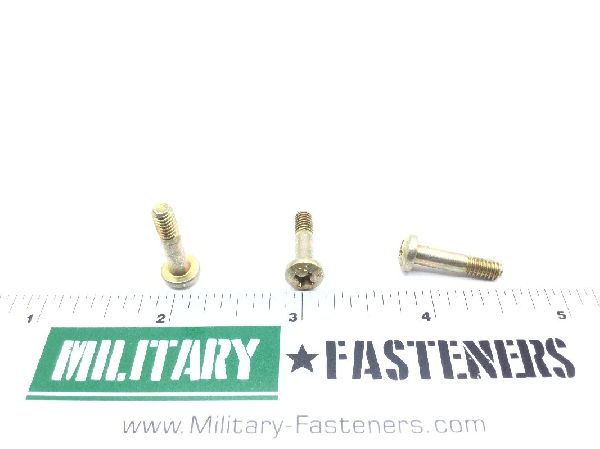

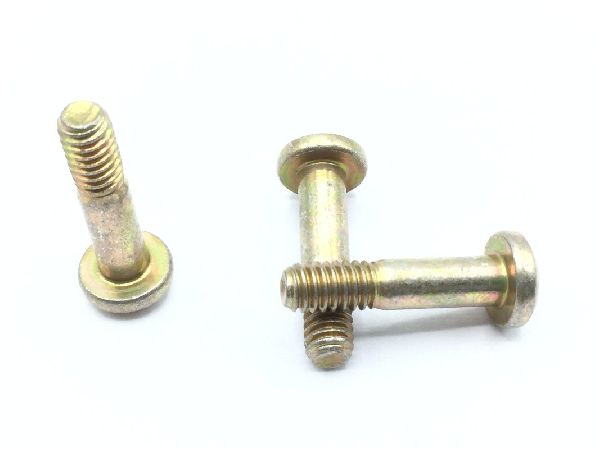

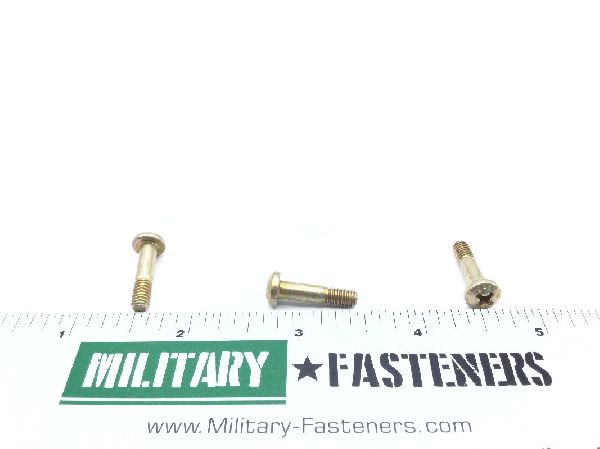

NAS7702-6 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $0.69

Units per Pack 50

Price per Pack $34.50

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 50

Total Unit Quantity:

Total Packs 1

Total Price $34.50

Add item to quote

Head Style

Pan

Material

Steel comp

Thread Class

End Application: C130 amp cmb
Fastener Length: Between 0.683 inches and 0.713 inches
Grip Diameter: Between 0.162 inches and 0.163 inches
Grip Length: Between 0.365 inches and 0.385 inches
Head Height: Between 0.105 inches and 0.115 inches
Internal Drive Style: Cross recess type 1
Part Name Assigned By Controlling Agency: Close tolerance screw
Thread Diameter: 0.164 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjc
Head Diameter: Between 0.306 inches and 0.322 inches
