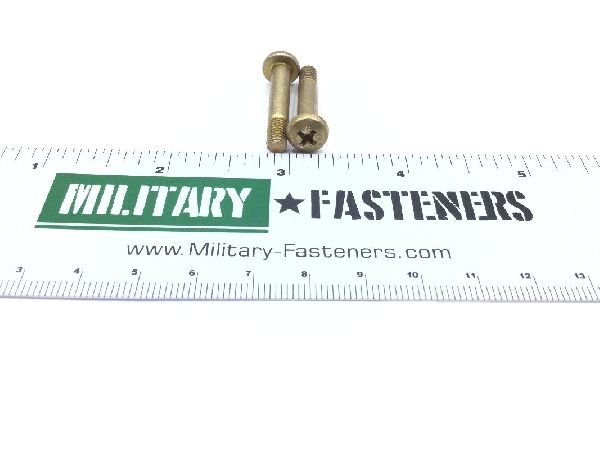

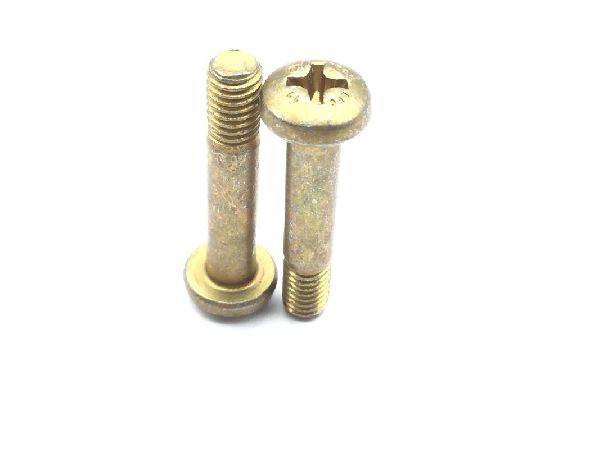

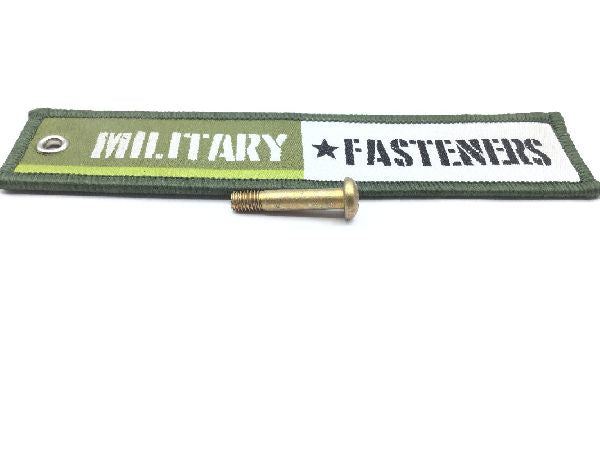

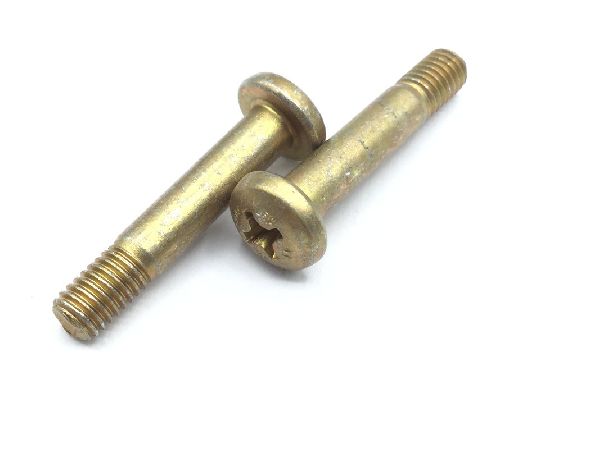

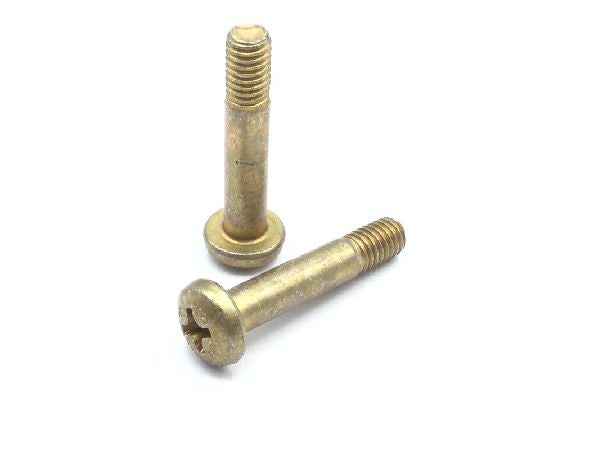

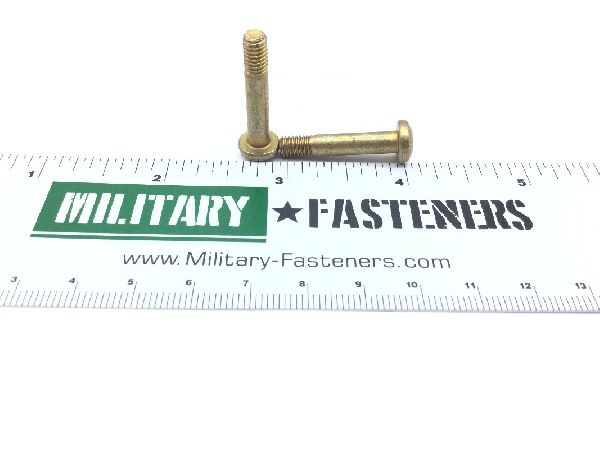

NAS7703-11 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7318.15.2091

Price per Unit $1.31

Units per Pack 25

Price per Pack $32.75

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 25

Total Unit Quantity:

Total Packs 1

Total Price $32.75

Add item to quote

Head Style

Pan

Material

Steel comp

Surface Treatment

Class 2 federal specification single treatment response type ii qq-p-416

Thread Class

Fastener Length: Between 0.996 inches and 1.026 inches
Grip Diameter: Between 0.1885 inches and 0.1895 inches
Grip Length: Between 0.678 inches and 0.698 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Material Specification: Mil-s-5000 military specification single material response
Specification Data: 80205-nas7703-11 professional/industrial association standard
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: 0.323 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.357 inches and 0.373 inches
