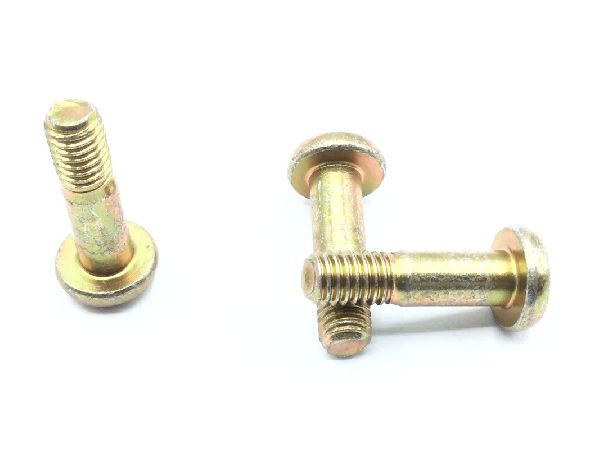

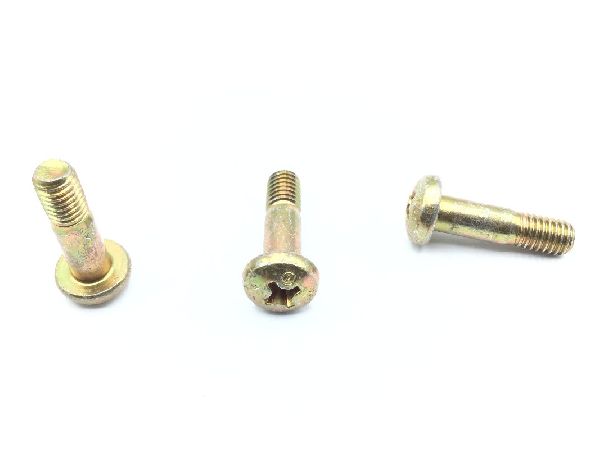

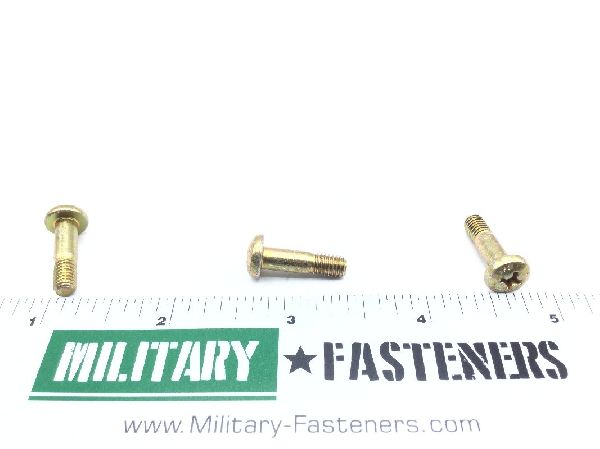

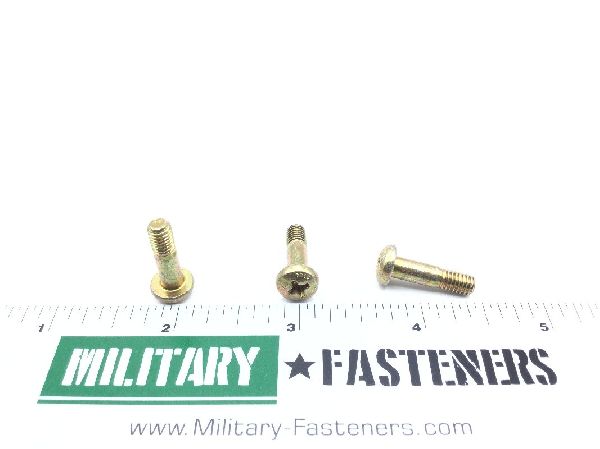

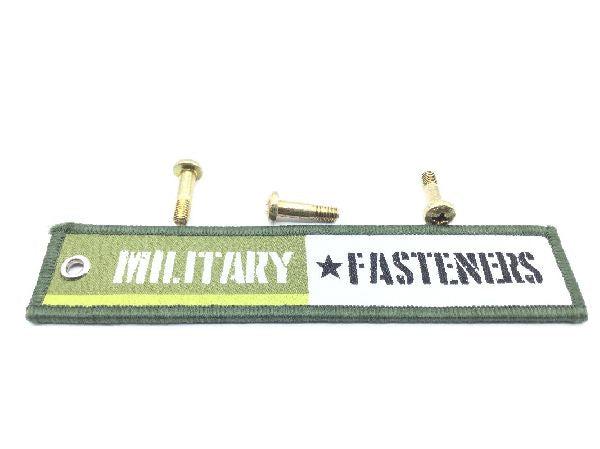

NAS7703-6 Close Tolerance Screw

Product Series: NAS
ECCN: EAR99
Schedule: 7616.10.1000

Price per Unit $0.42

Units per Pack 100

Price per Pack $42.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 100

Total Unit Quantity:

Total Packs 1

Total Price $42.00

Add item to quote

Head Style

Pan

Material

Steel comp 4340 or steel comp 8740

Thread Class

Fastener Length: Between 0.683 inches and 0.713 inches
Grip Diameter: Between 0.188 inches and 0.190 inches
Grip Length: Between 0.365 inches and 0.385 inches
Head Height: Between 0.122 inches and 0.133 inches
Internal Drive Style: Cross recess type 1
Min. Tensile Strength (psi): 160000 pounds per square inch
Thread Diameter: 0.190 inches
Thread Direction: Right-hand
Thread Length: Between 0.298 inches and 0.348 inches
Thread Qty Per Inch (tpi): 32
Thread Series Designator: Unjf (fine thread with external controlled root radius)
Head Diameter: Between 0.357 inches and 0.373 inches
