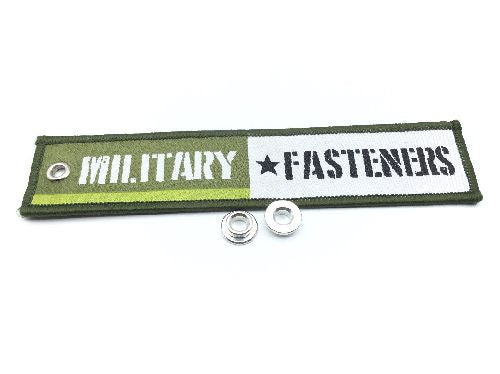

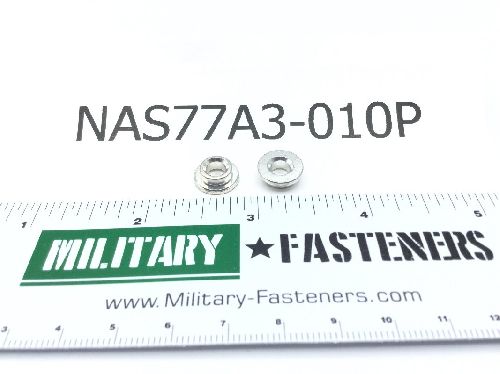

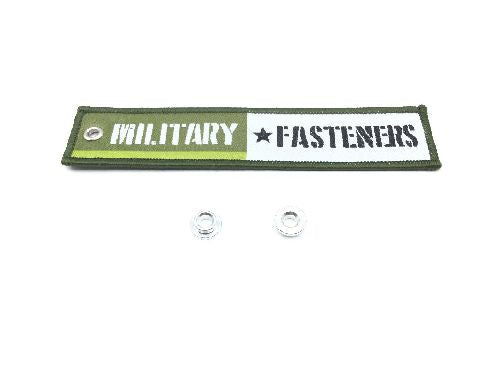

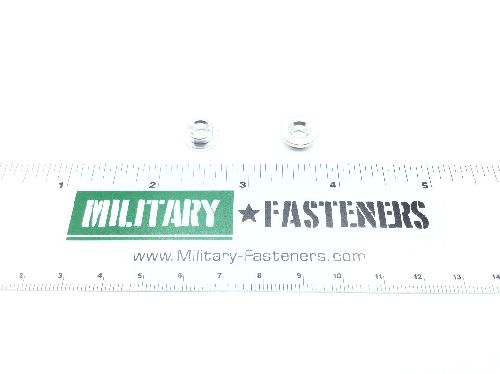

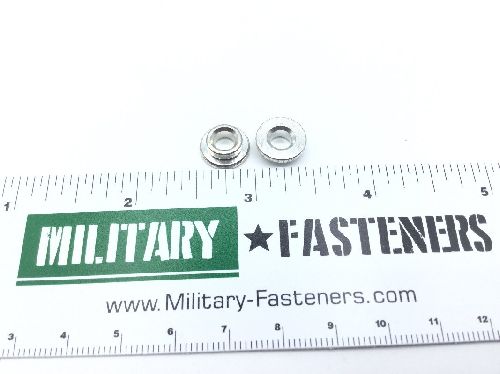

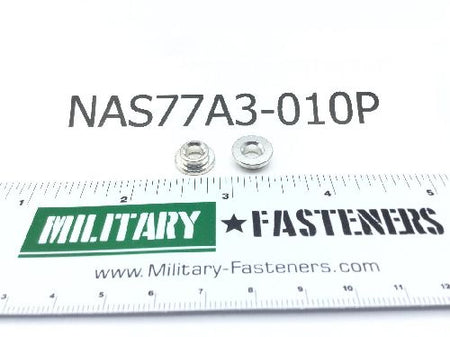

NAS77A3-010P Sleeve Bushing

Product Series: NAS
ECCN: EAR99
Schedule: 8483.30.8090

Price per Unit $4.50

Units per Pack 10

Price per Pack $45.00

Manufacturer certifications are shipped with your order FREE of charge

Unit of Measure: EA

Quantity will be increased in increments of 10

Total Unit Quantity:

Total Packs 1

Total Price $45.00

Add item to quote

Material

Copper alloy 642

Overall Length

Between 0.1520 inches and 0.1670 inches

Surface Treatment

Cl 2 federal specification single treatment response type 2 qq-p-416

Body Inside Diameter: Between 0.1900 inches and 0.1915 inches
Body Outside Diameter: Between 0.3131 inches and 0.3136 inches
Corner Shape: Undercut left flange body corner
Flange Outside Diameter: Between 0.4270 inches and 0.4470 inches
Flange Width: Between 0.0570 inches and 0.0620 inches
Material Specification: Qq-c-465 federal specification single material response
Specification Data: 80205-nas77 professional/industrial association standard
Style Designator: external flange one end solid
Surface Finish: 100.0 microinches intermediate layer
